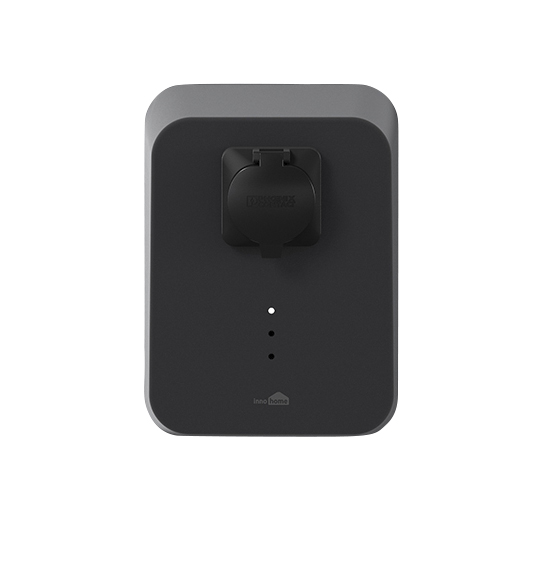

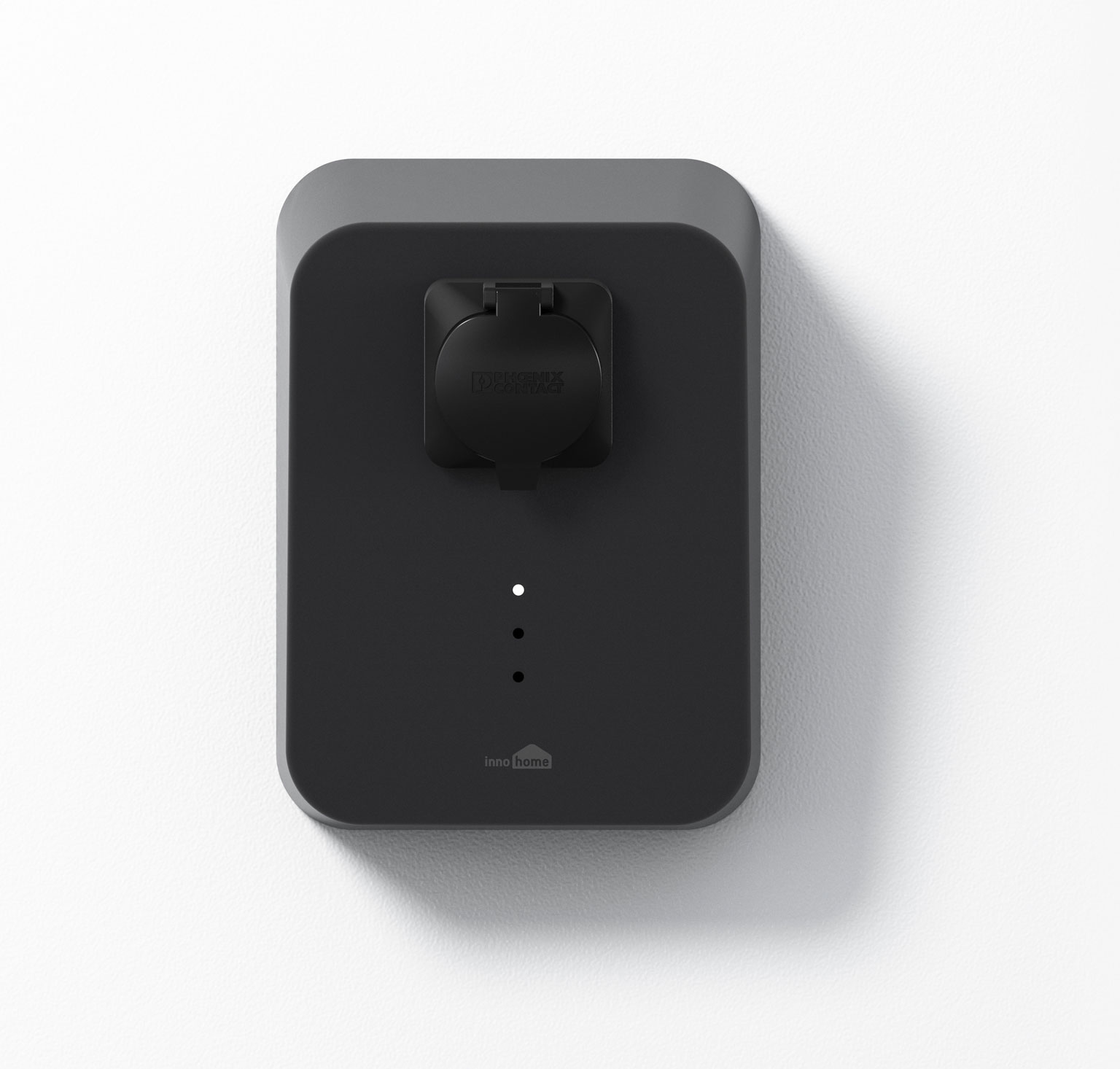

RECHARGING STATION CHARLIE 3x32A / 22KW 3-PHASE VAC

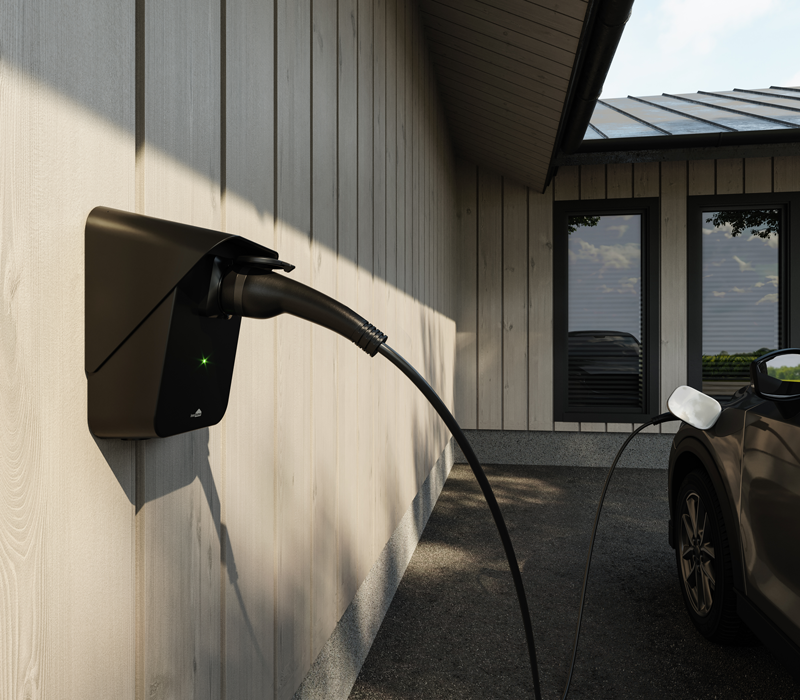

The Charlie charging station is designed and manufactured in Finland. It is a safe and efficient option for charging hybrid and fully electric vehicles. Charlie is a 1- and 3-phase installable charging station with a maximum power of 22 kW, specifically designed for home use. Depending on the vehicle, one hour of charging can provide approximately 100 kilometers of driving range. The high-quality and stylish charging station is easy to install and even easier to use. LED lights indicate the charging status. Charlie features a built-in 6 mA DC fault current protection, so an A-type residual current device in the electrical panel is sufficient. The output current can be adjusted to be optimal for the vehicle using DIP switches. Load balancing is possible for up to three sub-units. A potential-free external control input is available. The product dimensions are 305 x 219 x 160 mm. Features

• flagship product
• Type 2 socket
• Charging mode 3
• Internal DC fault current detection
• IP44 enclosed
• Operating temperature range -25 °C to +50 °C

• 1- and 3-phase installable

Considerations for installation

• Installation must be carried out only by a qualified electrical professional.
• The customer is responsible for ensuring that the installation site is suitable for the chosen device.
• A thorough initial survey is recommended for each installation site.
• Consider whether residual current protection or other modifications to the power supply or control system are required.

This product description is an automated translation of the original Finnish description.
