IN-GROUND LUMINAIRE GROUND SPOT 7478-000 IP44 6XG4
Product code
4533442

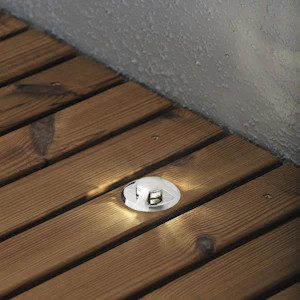

MINI LED GROUND SPOT

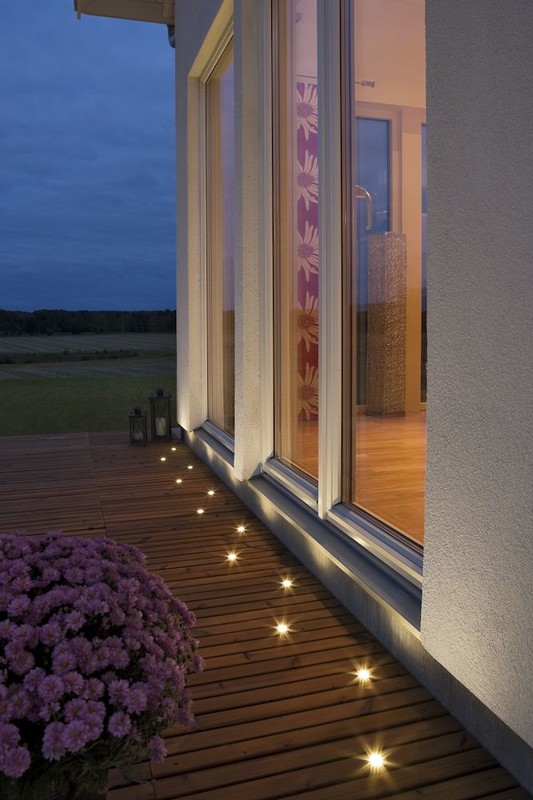

Tunnel-shaped, glare-protected, 6-piece lighting set suitable for terraces, patios, and stairs.
It is easy and quick to install, with pre-installed connectors in the luminaires and an electronic transformer 230V/12V with a 10-meter connecting cable. G4-base LED bulbs must be purchased separately, 6 x max 1.5W.
Recessed hole diameter 30 mm, recessed hole depth min. 17 mm.
An additional set for this unit is available with code 7481-000. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)In-ground luminaire (EC000758)
Lamp typeLED exchangeable
With light sourceno
Suitable for number of light sources6
Lamp holderG4
Housing materialPlastic
Housing colourChrome
Material coverGlass transparent
Nominal voltage12-12 V
Type of control gearElectronic transformer
Dimmableno
Light distributionSymmetric
Degree of protection (IP)IP44
Protection class according to IEC 61140III
Suitable for lamp power0-1.5 W
Max. system power9 W
Product codes
SAPDKA873
STK4533442
PLC4533442
GTIN/EAN7318307478006
Manufacturer part number7478-000
Vendor material number7478-000
Basic information
Package measurements (L x W x H)265 x 205 x 135 mm
Package volume7.334 l
Package weight2.1 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39111605
BrandKONSTSMIDE
VendorGNOSJÖ KONSTSMIDE AB
