URINAL KWC CMPX538 SS
Product code
5963162

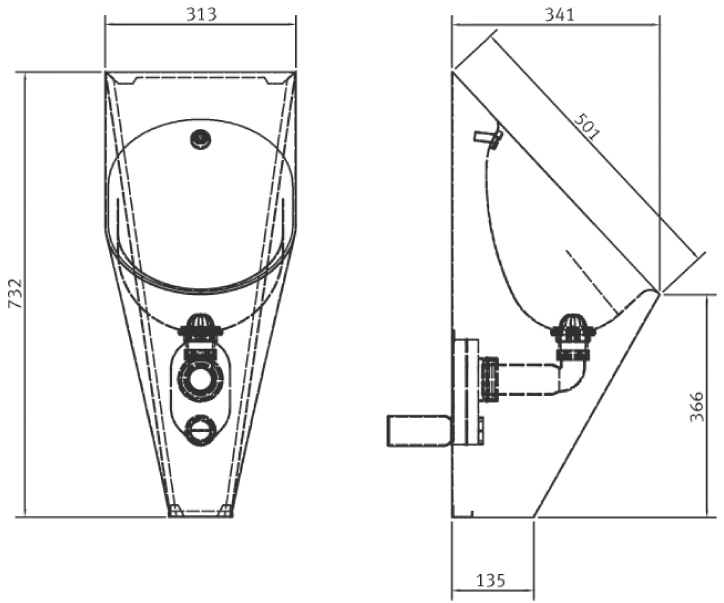

Urine basin with wall mounting, stainless steel, satin finish, material thickness 1.2 mm, oval basin, steel outlet 1/2", concealed horizontal outlet directed towards the wall, installation and fixation according to EN 80, concealed screws, includes water trap DN 50, supplied with mounting plate and steel cup-shaped base valve 1/2" with outlet. Dimensions 313 x 733 x 341 mm (L x W x H). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Urinal (EC010235)
ModelWall
MaterialStainless steel
Flushing water connectionAtop
Drain connectionWall
Diameter drain50 mm
With coverno
Waterlessno
Ladies modelno
Integrated electronic controlno
With earthing featureno
With mounting materialyes
Concealed fasteningyes
Integrated siphonyes
Height490 mm
Width400 mm
Product codes
SAPHBE466
HPAC5963162
PLC5963162
GTIN/EAN7612210051814
Manufacturer part number2000071872
Vendor material number5963162
Basic information
Package measurements (L x W x H)760 x 350 x 350 mm
Package volume93.1 l
Package weight7.34 kg
Base uniteach
Package units1
Package contents–
UNSPSC30181506
BrandKWC
VendorKWC NORTHERN EUROPE OY
