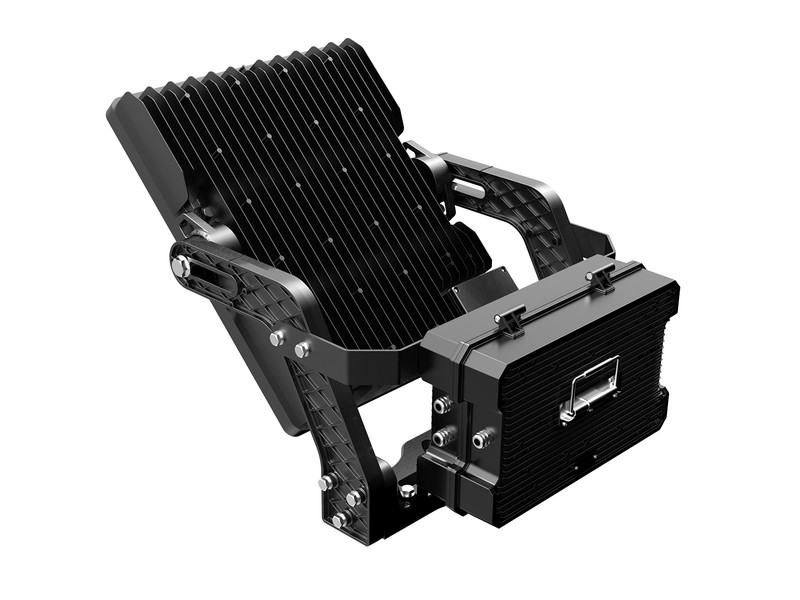

FLOODLIGHT AREA MAX IP66 IP66 1000W 825MM 840 F19806
Product code
4528475
Area Max IP66 is a highly efficient luminaire designed for demanding applications. Area is suitable for airports, sports fields, industrial facilities, or large parking areas.
- Luminaire power options: 600, 800, 1000, and 1200W
- Optimal light distribution via high-quality lens optics tailored to the target area
- Color temperature: 4000K or 5000K
- Driver can be mounted separately from the luminaire
- Impact resistance: IK08
- Luminaires controllable via ON/OFF or DALI
- Service life: 111,000h L80/B10 at 25°C
- 5-year warranty
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingyes
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilityRotating and swivelling
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceno
Product codes
SAPCMR989
STK4528475
PLC4528475
GTIN/EAN6430077510197
Manufacturer part number4528475
Vendor material number4528475
Basic information
Package measurements (L x W x H)825 x 597 x 356 mm
Package volume175.339 l
Package weight33.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111611
BrandLEDIMO
VendorLEDIMO OY
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)431.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
