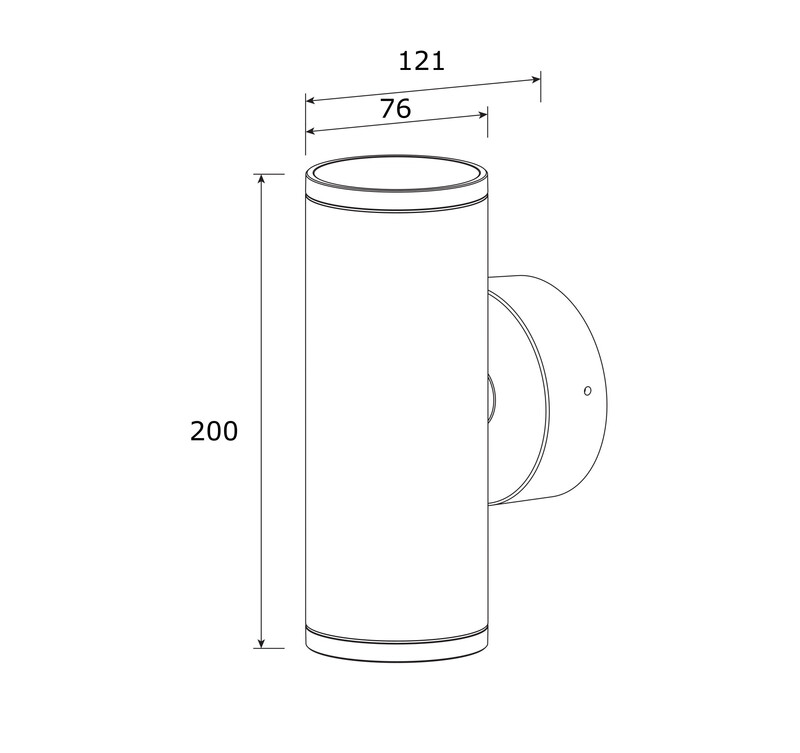

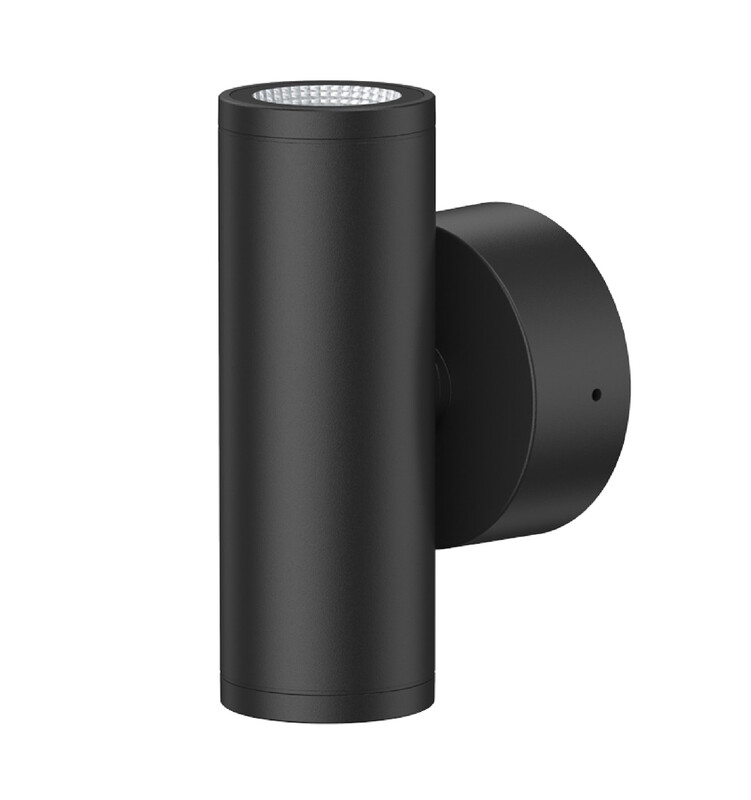

OUTDOORS WALL LUMINAIRE CYLINDO IP65 20W 830 UD 36D B
Product code
4534269
Cylindo is an efficient and durable up-down wall light.
• Power options 10, 20 and 27W
• Luminous flux 900 - 3200lm
• Color temperature 4000K or 3000K
• Robust powder-coated aluminum housing in black or white

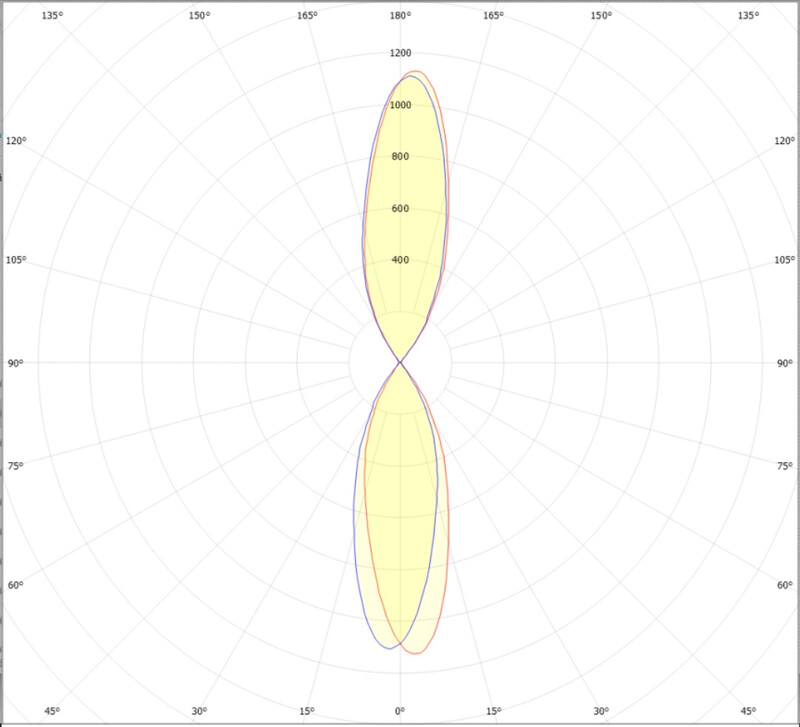

• Symmetrical light distribution up and 15, 24, 36 and 60 degrees
• Impact resistance IK08
• Service life 50 000h L80/B10 25°C
• Warranty 5 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceno
Housing materialAluminium
Surface protection housingPowder coating
Housing colourBlack
Material coverGlass transparent
Type of gridNone
Voltage typeAC
Product codes
SAPDKZ123
STK4534269
PLC4534269
GTIN/EAN6430081631444
Manufacturer part number4534269
Vendor material number4534269
Basic information
Package measurements (L x W x H)100 x 1000 x 43 mm
Package volume4.3 l
Package weight1.056 kg
Base uniteach
Package units1 / 18
Package contents–
UNSPSC39111605
BrandLEDIMO
VendorLEDIMO OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)13.728
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
