FLOODLIGHT FLOODLIGHT AREA FL AREA 133W 830 ASYM ML 19KLM

Product code
4544117

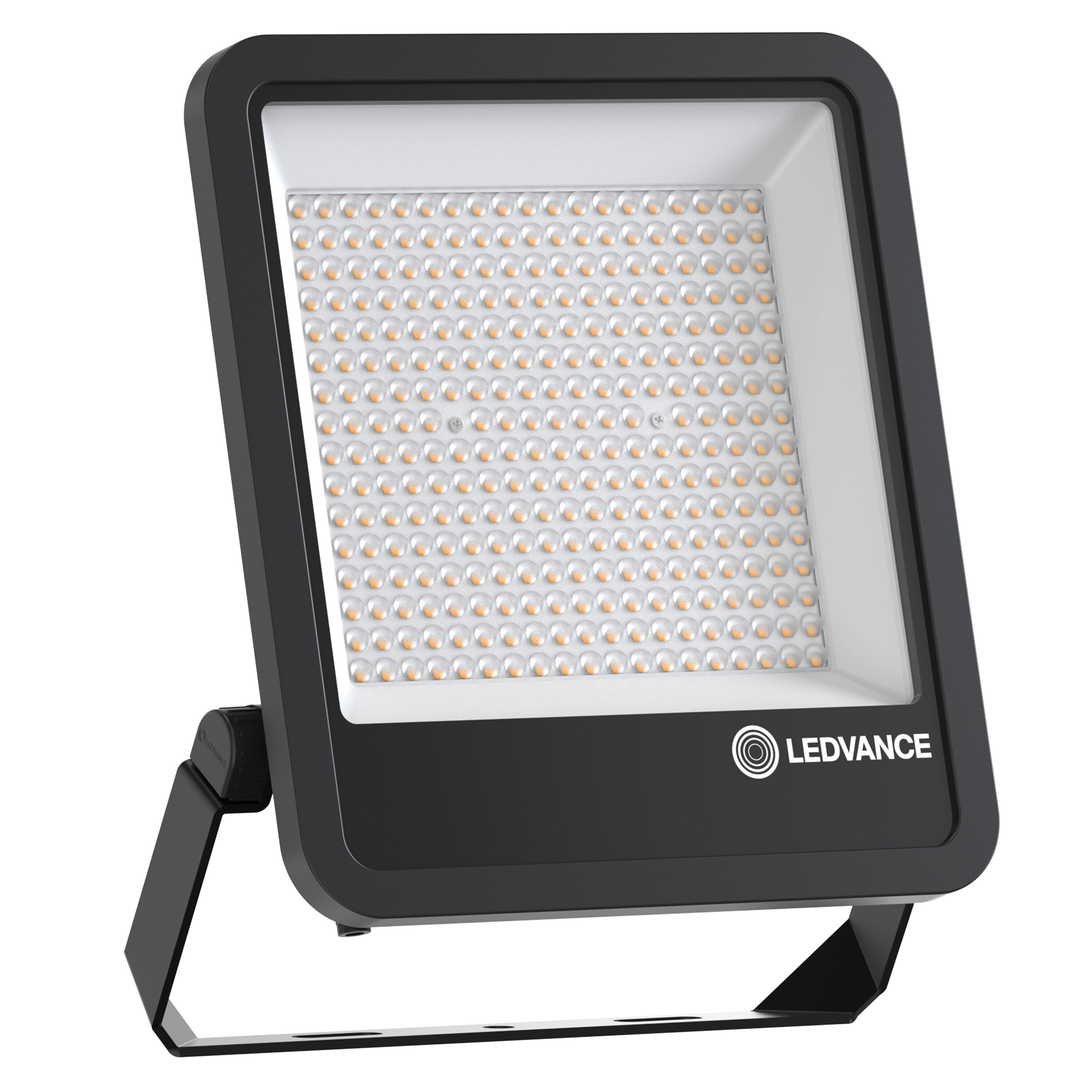

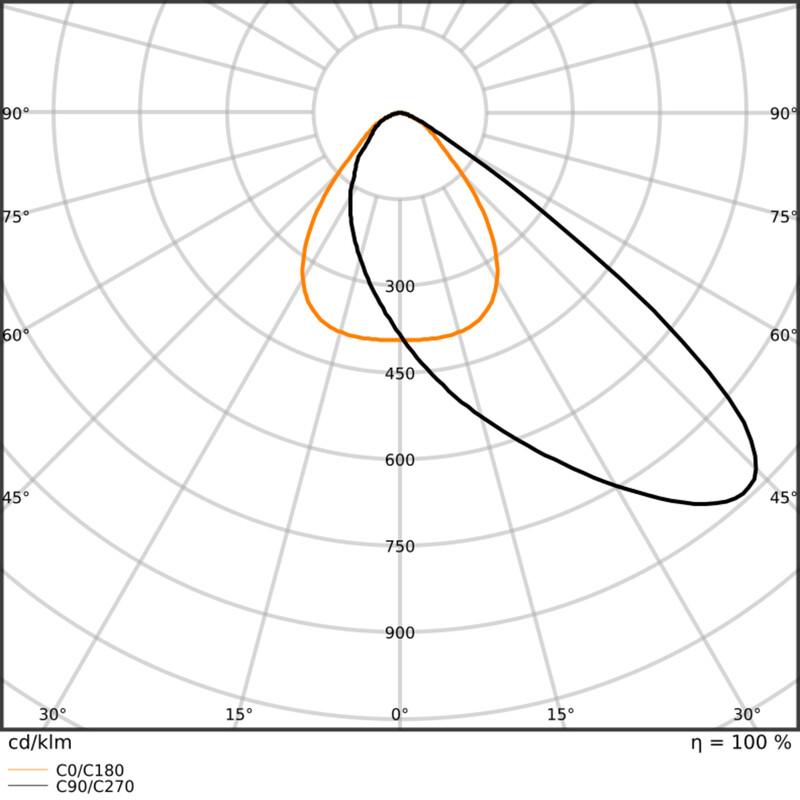

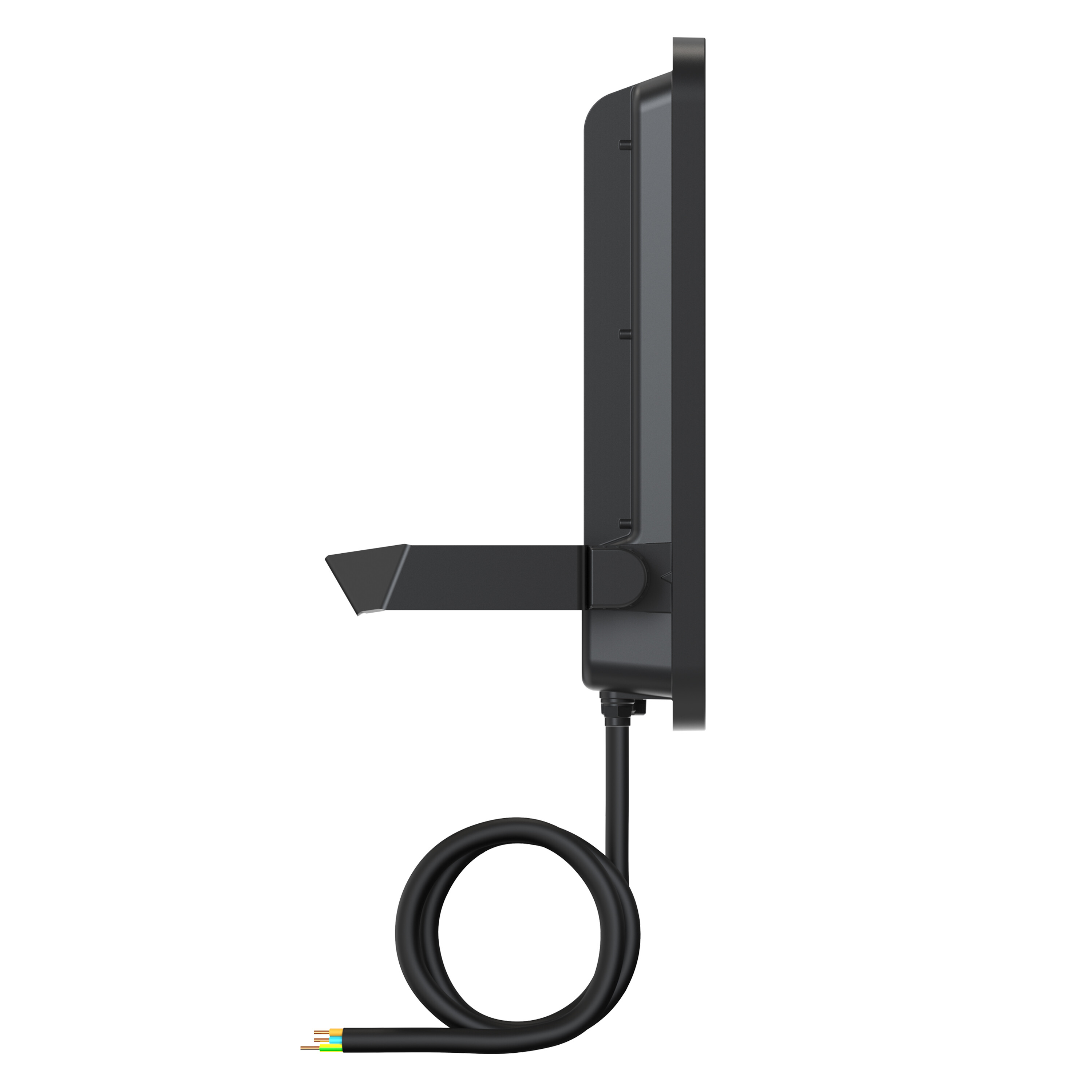

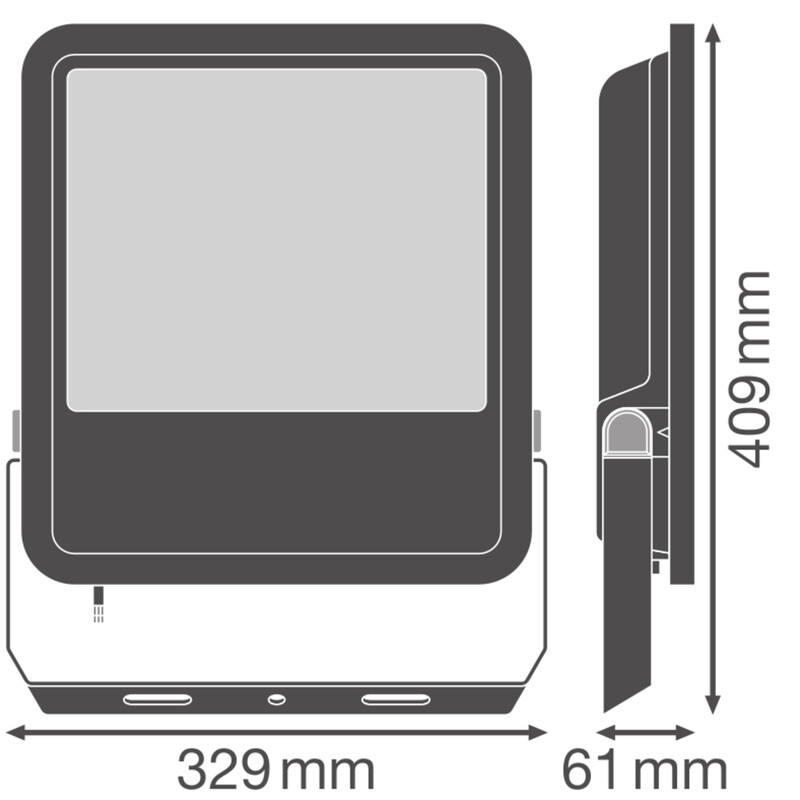

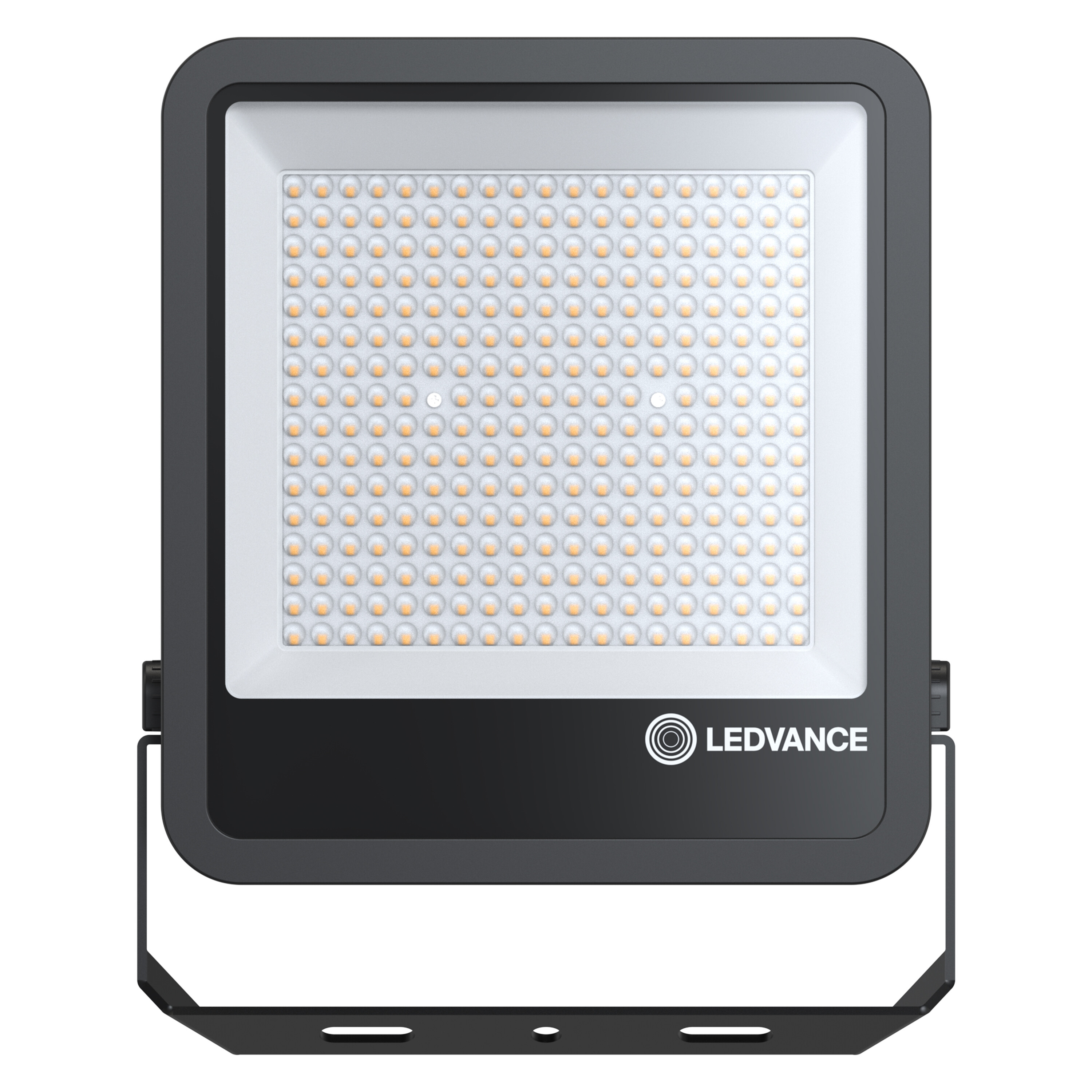

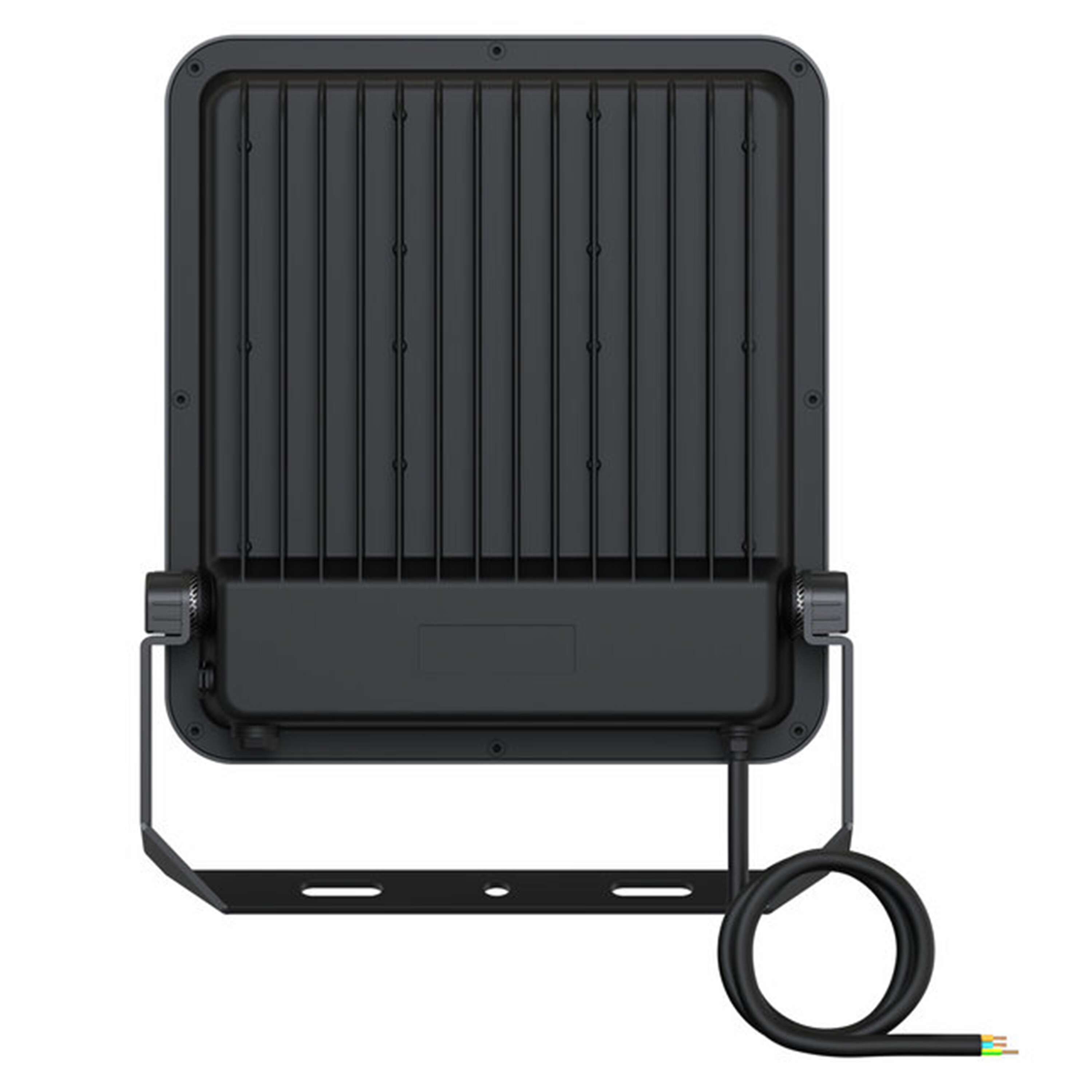

FLOODLIGHT AREA G2 product family offers a comprehensive range of asymmetric luminaires for outdoor lighting. The breath vent and sealed cable entry ensure that moisture does not accumulate inside the luminaire. The Multi Lumen feature enables selection of two stepped light output levels. The luminaire's aluminum housing is manufactured from recycled aluminum. Key technical specifications: • Luminous flux: 18600 lm / 16250 lm • Color temperature: 3000 K, CRI 80 • Power: 133 W / 115 W • Luminous efficacy: 141 / 140 lm/W • Beam angle: asymmetric 48x85 D • Dimmable: No • Dimensions (Length/Width/Height): 329 x 409 x 61 mm • Weight: 4.54 kg • Ingress protection rating: IP66 and IK07 • Average service life: 100 000 hours (L70/B50 +25 C) • Average service life: 75 000 hours (L80/B10 +25 C) • Operating temperature: -30…+50 C • Warranty: 5 years • Corrosion resistance class (EN 12944): C4 • Certifications: CE, ENEC, D-marking Most common applications: Industrial area lighting, small sports field lighting This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable

Product codes

SAPDLB315
STK4544117
PLC4544117
GTIN/EAN4099854427527
Manufacturer part number4099854427527
Vendor material number4544117

Basic information

Package measurements (L x W x H)78 x 354 x 454 mm
Package volume12.536 l
Package weight4.886 kg
Base uniteach
Package units1 / 2 / 8 / 48
Package contents
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)45.2823
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
