FLOODLIGHT FLOODLIGHT AREA FL AREA 50W 840 ASYM ML 7000LM
Product code
4544112
FLOODLIGHT AREA G2 product family offers a comprehensive range of asymmetric light distributors for outdoor area lighting. The breath vent and sealed cable entry ensure that moisture does not form inside the light distributor. The Multi Lumen feature enables selection of two stepwise light flux levels. The aluminum housing of the luminaires is manufactured from recycled aluminum.
Key technical specifications:
• Luminous flux: 7000 lm / 5250 lm
• Color temperature: 4000 K, CRI 80
• Power: 50 W / 36 W
• Luminous efficacy: 146 / 140 lm/W

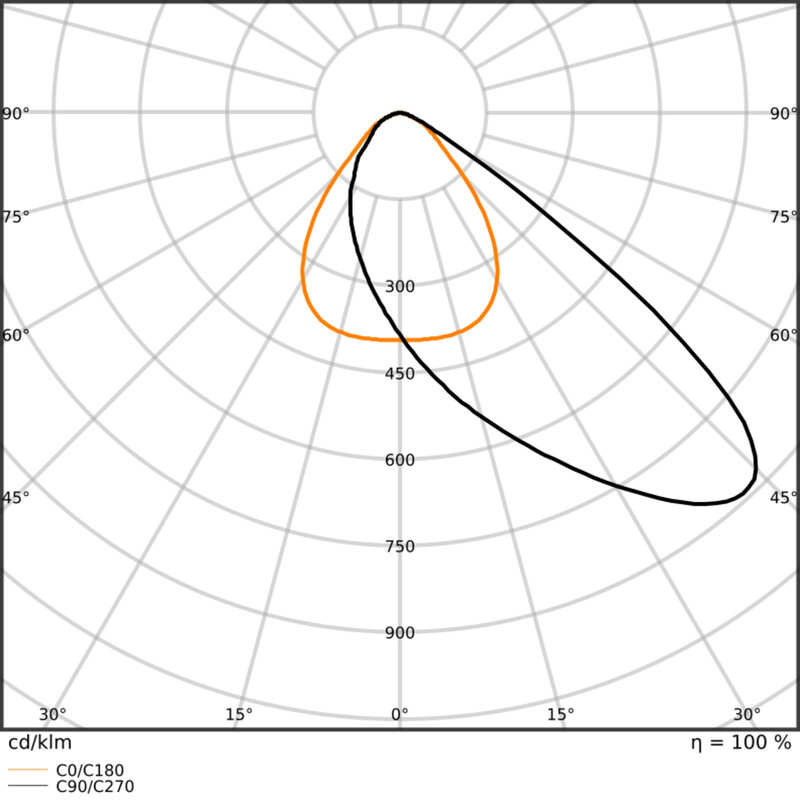

• Beam angle: asymmetric 48x85 D
• Dimmable: No

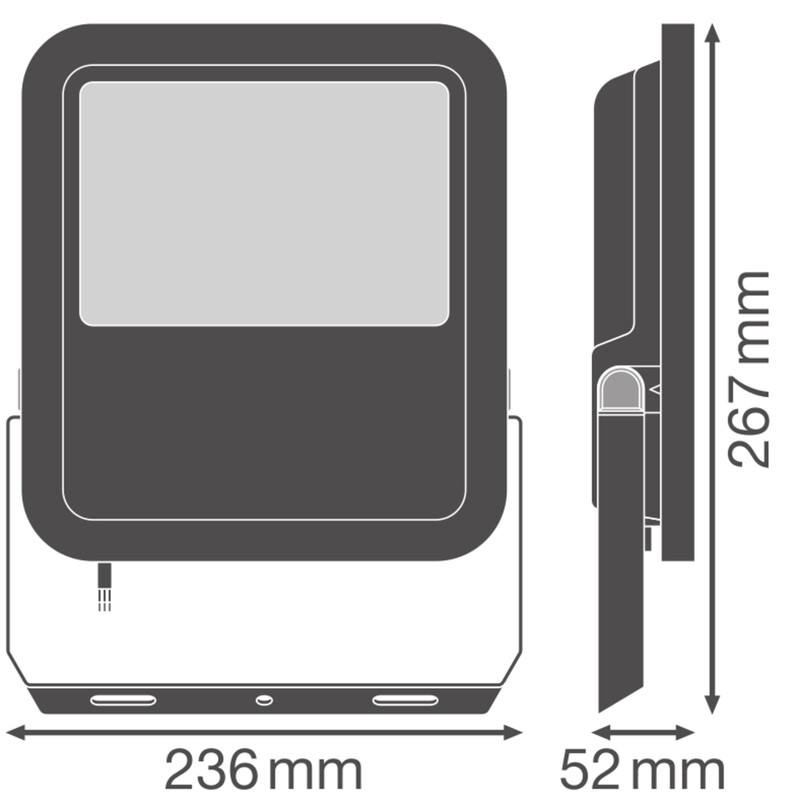

• Dimensions (Length/Width/Height): 236 x 267 x 52 mm
• Weight: 1.747 kg
• Protection rating: IP66 and IK07
• Average service life: 100 000 hours (L70/B50 +25 C)
• Average service life: 75 000 hours (L80/B10 +25 C)
• Operating temperature: -30…+50 C
• Warranty: 5 years
• Corrosion resistance class (EN 12944): C4
• Certifications: CE, ENEC, D-marking

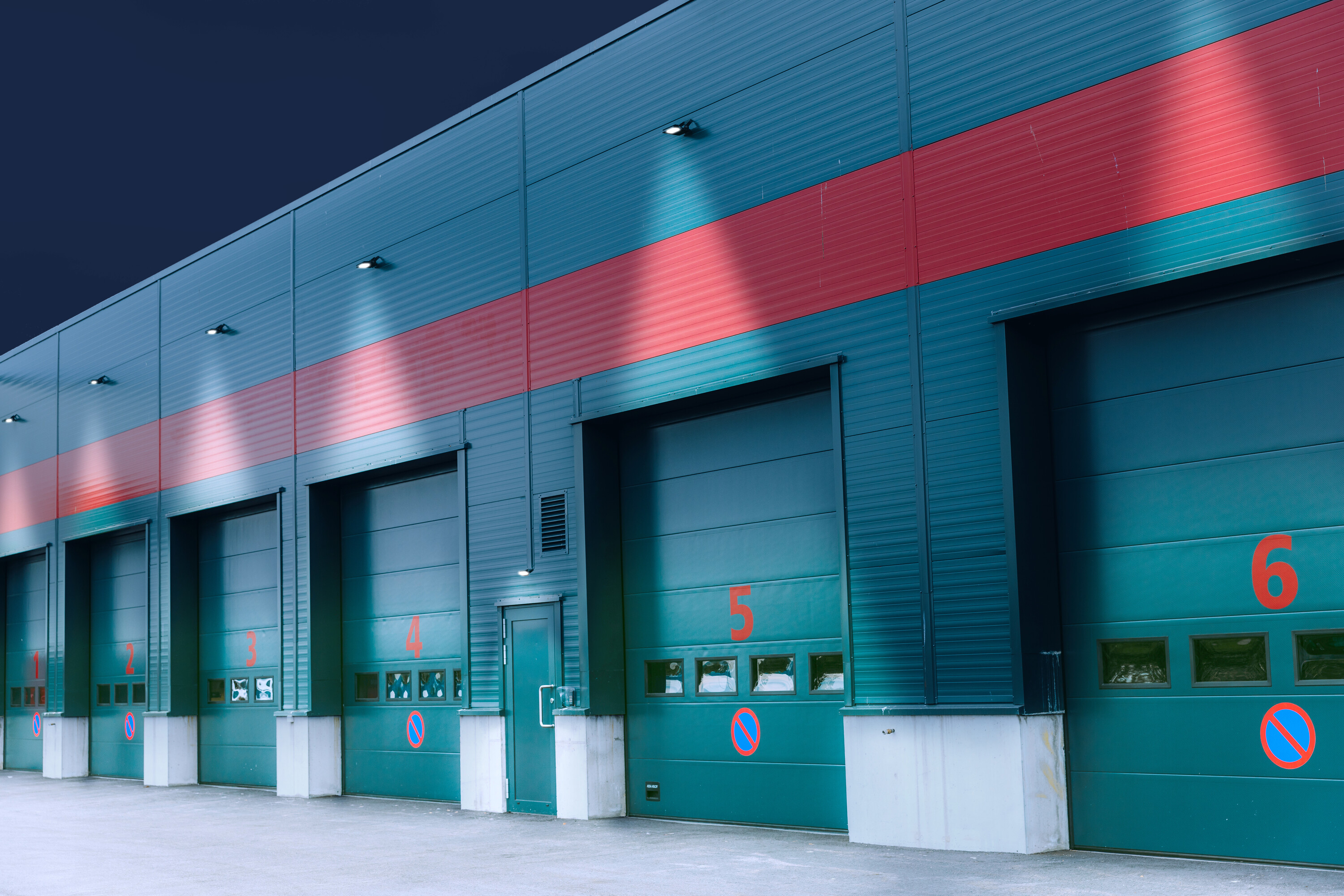

Most common applications: Industrial area lighting, small sports field lighting This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingno
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED not exchangeable
Product codes
SAPDLB320
STK4544112
PLC4544112
GTIN/EAN4099854427305
Manufacturer part number4099854427305
Vendor material number4544112
Basic information
Package measurements (L x W x H)78 x 255 x 237 mm
Package volume4.714 l
Package weight1.903 kg
Base uniteach
Package units1 / 4 / 28 / 84
Package contents–
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY
Documents (12)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)17.6366
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
