FLOODLIGHT FLOODLIGHT PFM FL10 IP66 1100LM 830 SY ML B
Product code
4529914
FLOODLIGHT SYM GEN4 - the products in this family are equipped with the Multi Lumen feature, allowing the luminous flux to be easily selected from the luminaire. The new generation floodlights are also equipped with a breath vent valve and a new tighter penetration grommet that prevent moisture from forming inside the luminaire.
Key technical specifications:
Key technical specifications:
- Luminous flux: 780 / 1100 lm
- Color temperature: 3000 K, CRI80
- Power: 6 / 8 W
- Luminous efficacy: 133 lm/W
- Beam angle: symmetrical 100 x 100 D
- Dimmable: No

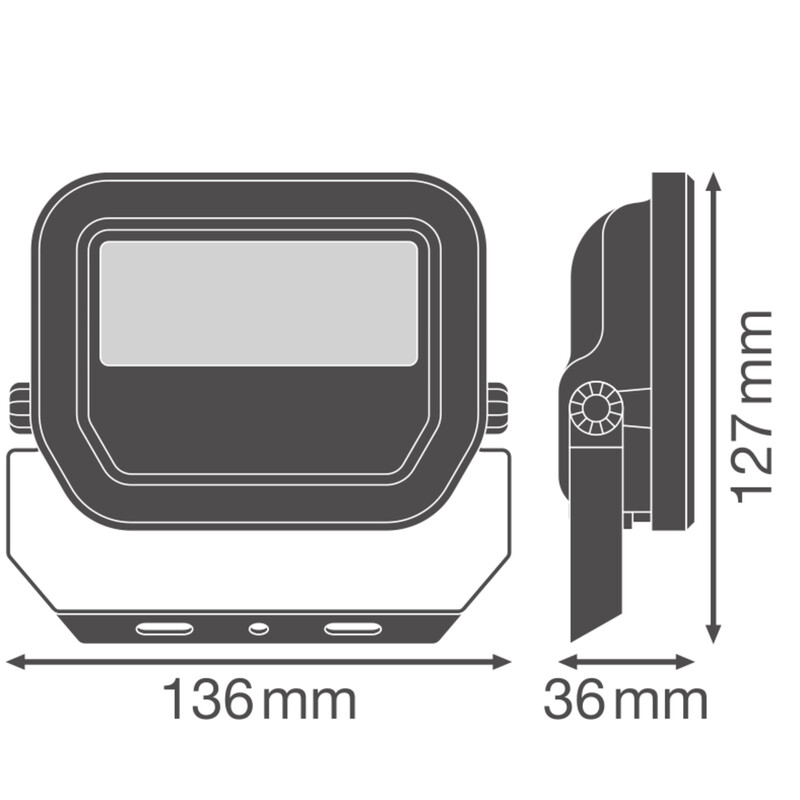

- Dimensions (Length/Width/Height): 136 x 36 x 127 mm
- Weight: 0.42 kg
- Protection class: IP66 and IK07
- Average service life: 100,000 hours (L70/B50 +25 C)
- Average service life: 70,000 hours (L80/B10 +25 C)
- Operating temperature: -30…+50 C
- Warranty: 5 years
- Certifications: CE, ENEC, D-mark
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for traverse mountingno
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes
Product codes
SAPDFL292
STK4529914
PLC4529914
GTIN/EAN4099854305689
Manufacturer part number4099854305689
Vendor material number4529914
Basic information
Package measurements (L x W x H)145 x 140 x 55 mm
Package volume1.117 l
Package weight0.46 kg
Base uniteach
Package units1 / 12 / 84 / 504
Package contents–
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY
Documents (13)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.5699
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
