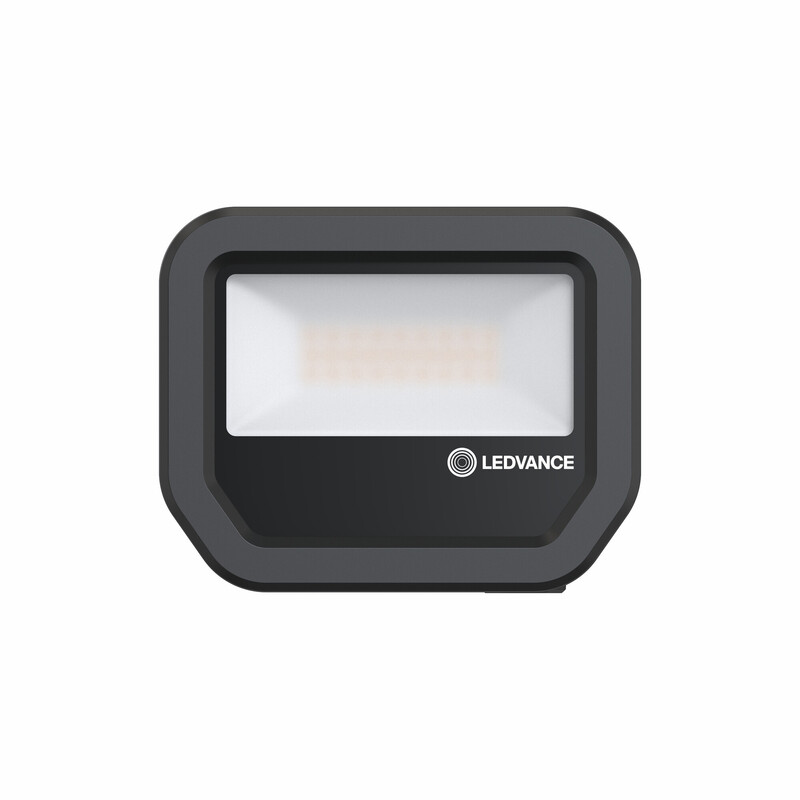

FLOODLIGHT FLOODLIGHT PFM FL10 IP66 1200LM 865 SY ML B
Product code
4529918
FLOODLIGHT SYM GEN4 - the products in this family are equipped with the Multi Lumen feature, allowing the luminous flux to be easily selected from the luminaire. The new generation floodlights are also equipped with a breath vent valve and a new tighter penetration gasket that prevent moisture from forming inside the luminaire.
Key technical specifications:
Key technical specifications:
- Luminous flux: 850 / 1200 lm
- Color temperature: 6500 K, CRI80
- Power: 6 / 8 W
- Luminous efficacy: 145 lm/W

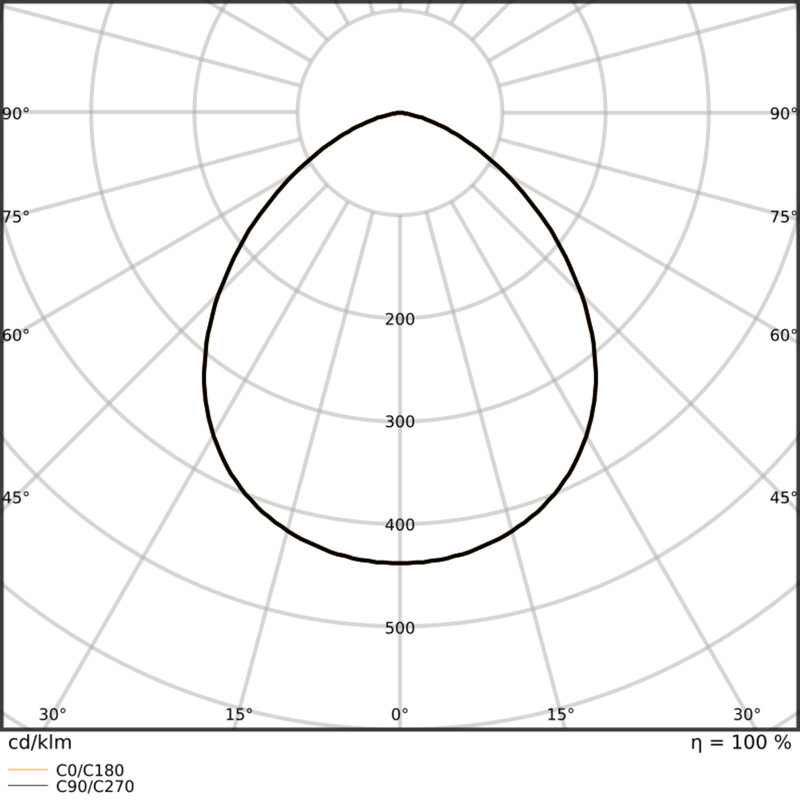

- Beam angle: symmetrical 100 x 100 D
- Dimmable: No

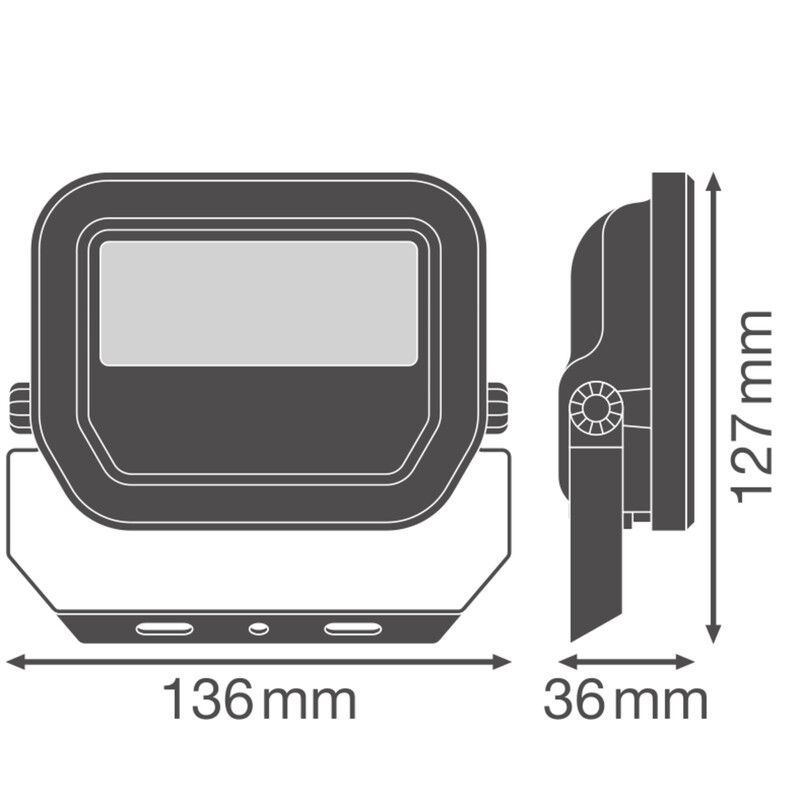

- Dimensions (Length/Width/Height): 136 x 36 x 127 mm
- Weight: 0.42 kg
- Protection rating: IP66 and IK07
- Average service life: 100,000 hours (L70/B50 +25 C)
- Average service life: 70,000 hours (L80/B10 +25 C)
- Operating temperature: -30…+50 C
- Warranty: 5 years
- Certifications: CE, ENEC, D-mark
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for traverse mountingno
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes
Product codes
SAPDFL296
STK4529918
PLC4529918
GTIN/EAN4099854305740
Manufacturer part number4099854305740
Vendor material number4529918
Basic information
Package measurements (L x W x H)62 x 143 x 138 mm
Package volume1.224 l
Package weight0.471 kg
Base uniteach
Package units1 / 12 / 84 / 504
Package contents–
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY
Documents (16)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.6552
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
