FLOODLIGHT FLOODLIGHT PFM FL100 IP66 10000LM 865 SY ML B

Product code
4529936
FLOODLIGHT SYM GEN4 - the luminaires in this product family are equipped with the Multi Lumen feature, allowing the luminous flux to be easily selected from the luminaire itself. The new generation luminaires are also equipped with a breath vent valve and a new tighter penetration grommet that prevent moisture from forming inside the luminaire.

Key technical specifications:
  • Luminous flux: 8000 / 10000 lm
  • Color temperature: 6500 K, CRI80
  • Power: 53 / 69 W
  • Luminous efficacy: 145 lm/W

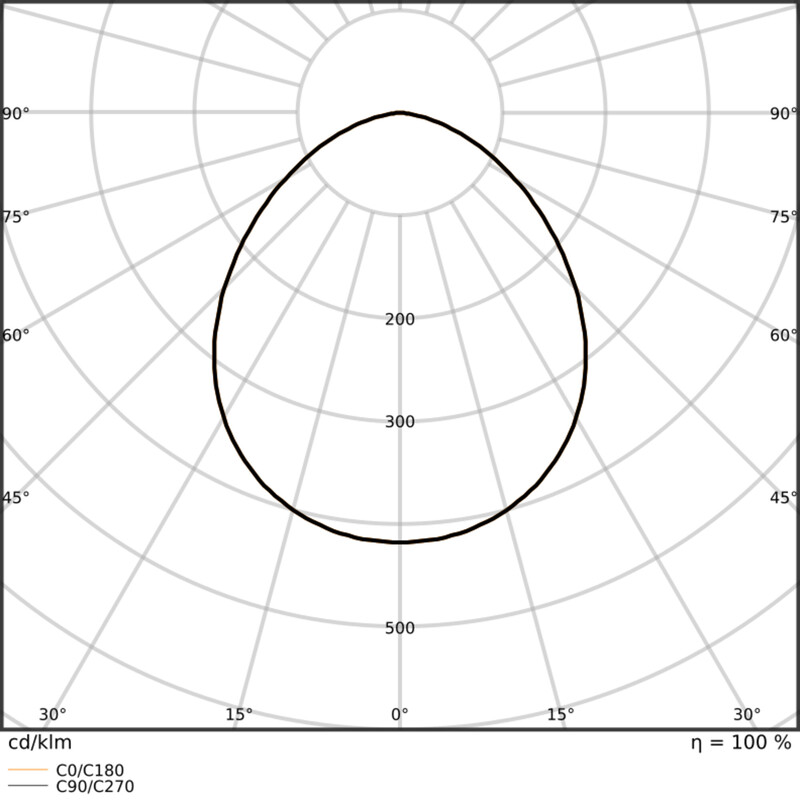

  • Beam angle: symmetric 100 x 100 D
  • Dimmable: No
  • Dimensions (Length/Width/Height): 236 x 52 x 236 mm
  • Weight: 1.712 kg
  • Protection rating: IP66 and IK08
  • Average service life: 100,000 hours (L70/B50 +25 C)
  • Average service life: 70,000 hours (L80/B10 +25 C)
  • Operating temperature: -30…+50 C
  • Warranty: 5 years
  • Certifications: CE, ENEC, D-mark
Fixed 1-meter pre-stripped connection cable integrated into the luminaire. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for traverse mountingno
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes

Product codes

SAPDFL314
STK4529936
PLC4529936
GTIN/EAN4099854306204
Manufacturer part number4099854306204
Vendor material number4529936

Basic information

Package measurements (L x W x H)78 x 255 x 237 mm
Package volume4.714 l
Package weight1.868 kg
Base uniteach
Package units1 / 4 / 28 / 84
Package contents
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)13.734
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
