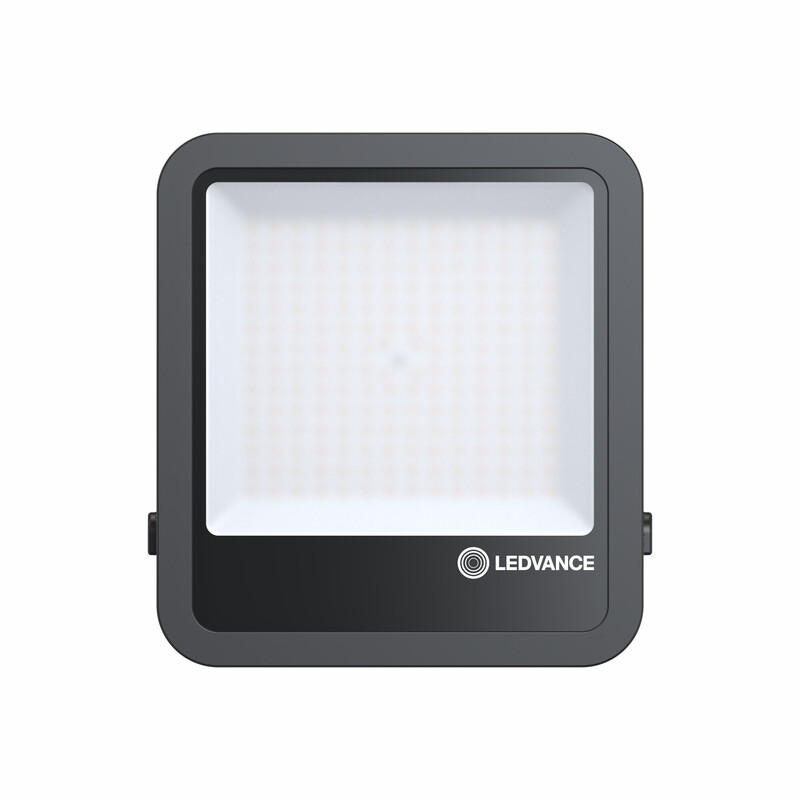

FLOODLIGHT FLOODLIGHT PFM FL150 IP66 14000LM 830 SY ML B
Product code
4529938
FLOODLIGHT SYM GEN4 - the luminaires in this product family are equipped with the Multi Lumen feature, allowing the luminous flux to be easily selected from the luminaire itself. The new generation luminaires are also equipped with a breath vent valve and a new tighter penetration gasket that prevent moisture from forming inside the luminaire.
Key technical specifications:
Key technical specifications:
- Luminous flux: 11670 / 14000 lm
- Color temperature: 3000 K, CRI80
- Power: 83 / 100 W
- Luminous efficacy: 140 lm/W

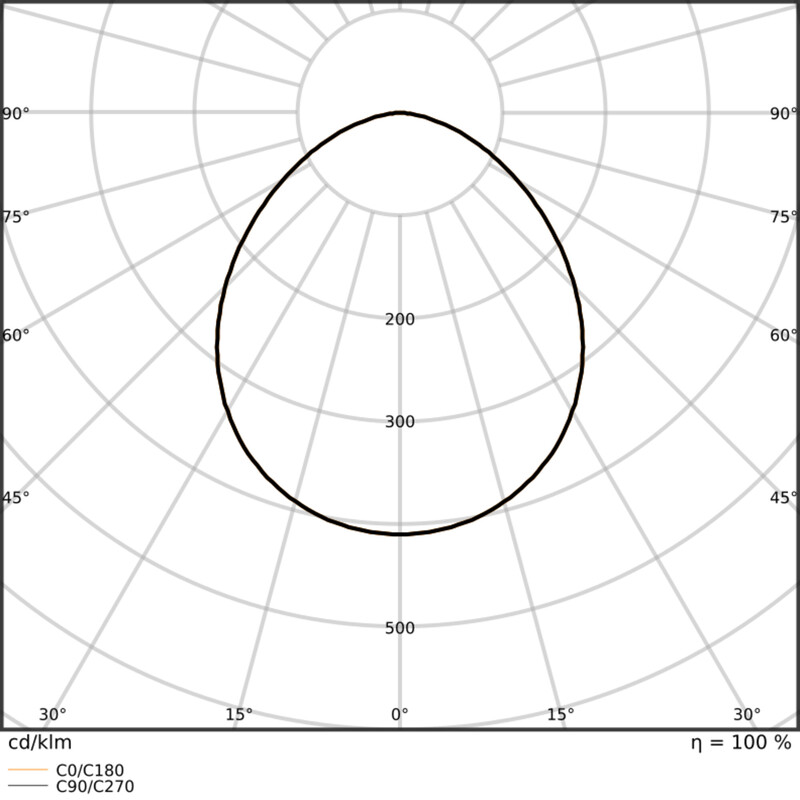

- Beam angle: symmetrical 100 x 100 D
- Dimmable: No
- Dimensions (Length/Width/Height): 266 x 55 x 343 mm
- Weight: 2.82 kg
- Protection rating: IP66 and IK08
- Average service life: 100 000 hours (L70/B50 +25 C)
- Average service life: 70 000 hours (L80/B10 +25 C)
- Operating temperature: -30…+50 C
- Warranty: 5 years
- Certifications: CE, ENEC, D-mark
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for traverse mountingno
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes
Product codes
SAPDFL316
STK4529938
PLC4529938
GTIN/EAN4099854306242
Manufacturer part number4099854306242
Vendor material number4529938
Basic information
Package measurements (L x W x H)72 x 285 x 370 mm
Package volume7.592 l
Package weight3.072 kg
Base uniteach
Package units1 / 3 / 33 / 66
Package contents–
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY
Documents (14)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)22.5861
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
