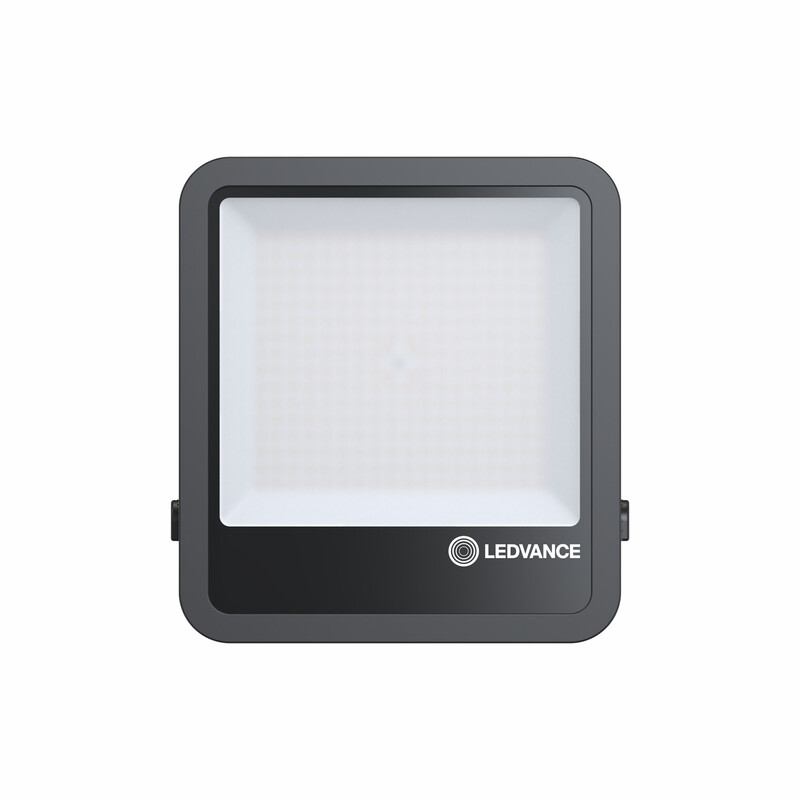

FLOODLIGHT FLOODLIGHT PFM FL200 IP66 20000LM 865 SY ML B

Product code
4529948
FLOODLIGHT SYM GEN4 - the lighting fixtures in this product family are equipped with the Multi Lumen feature, allowing the luminous flux to be easily selected from the fixture. The new generation floodlights are also equipped with a breath vent valve and a new tighter penetration grommet that prevent moisture from forming inside the fixture.

Key technical specifications:
  • Luminous flux: 17500 / 20000 lm
  • Color temperature: 6500 K, CRI80
  • Power: 117 / 133 W
  • Luminous efficacy: 150 lm/W

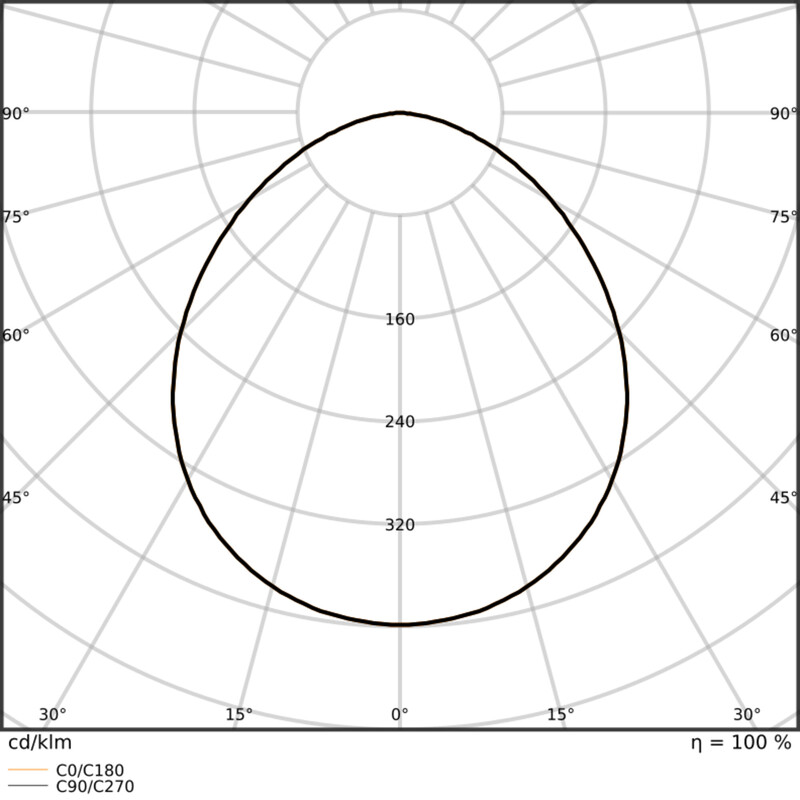

  • Beam angle: symmetrical 100 x 100 D
  • Dimmable: No
  • Dimensions (Length/Width/Height): 294 x 58 x 376 mm
  • Weight: 3.476 kg
  • Protection rating: IP66 and IK08
  • Average service life: 100 000 hours (L70/B50 +25 C)
  • Average service life: 70 000 hours (L80/B10 +25 C)
  • Operating temperature: -30…+50 C
  • Warranty: 5 years
  • Certifications: CE, ENEC, D-mark
Fixed 1 meter long pre-stripped connection cable integrated into the floodlight. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for traverse mountingno
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes

Product codes

SAPDFL326
STK4529948
PLC4529948
GTIN/EAN4099854306464
Manufacturer part number4099854306464
Vendor material number4529948

Basic information

Package measurements (L x W x H)75 x 324 x 417 mm
Package volume10.133 l
Package weight3.776 kg
Base uniteach
Package units1 / 2 / 28 / 56
Package contents
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)27.7621
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
