FLOODLIGHT FLOODLIGHT PFM FL250 IP66 23400LM 830 SY ML W
Product code
4529951
FLOODLIGHT SYM GEN4 - the products in this family are equipped with the Multi Lumen feature, allowing the luminous flux to be easily selected from the luminaire. The new generation floodlights are also equipped with a breath vent valve and a new tighter penetration gasket that prevent moisture from forming inside the luminaire.
Key technical specifications:
Key technical specifications:
- Luminous flux: 21060 / 23400 lm
- Color temperature: 3000 K, CRI80
- Power: 150 / 167 W
- Luminous efficacy: 140 lm/W
- Beam angle: symmetrical 100 x 100 D
- Dimmable: No

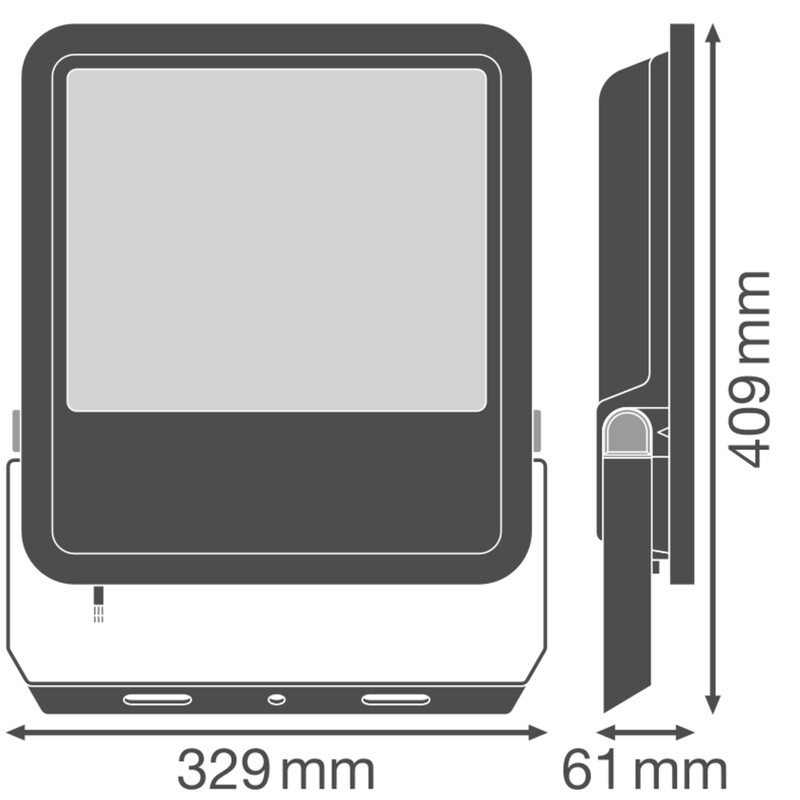

- Dimensions (Length/Width/Height): 329 x 61 x 409 mm
- Weight: 4.42 kg
- Protection rating: IP66 and IK08
- Average service life: 100 000 hours (L70/B50 +25 C)
- Average service life: 70 000 hours (L80/B10 +25 C)
- Operating temperature: -30…+50 C
- Warranty: 5 years
- Certifications: CE, ENEC, D-mark
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for traverse mountingno
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes
Product codes
SAPDFL329
STK4529951
PLC4529951
GTIN/EAN4099854306587
Manufacturer part number4099854306587
Vendor material number4529951
Basic information
Package measurements (L x W x H)78 x 354 x 454 mm
Package volume12.536 l
Package weight4.766 kg
Base uniteach
Package units1 / 2 / 8 / 48
Package contents–
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY
