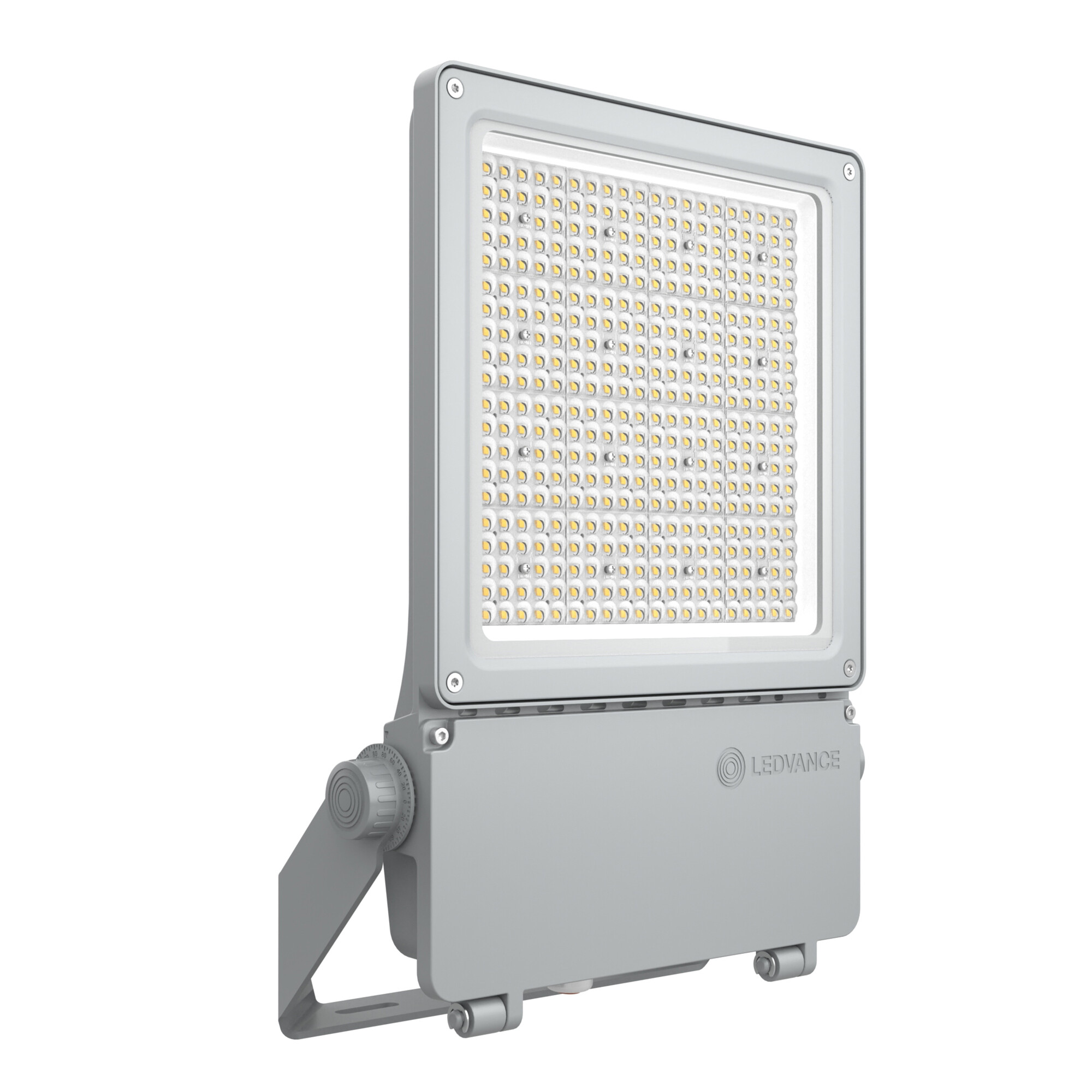

FLOODLIGHT PFM FL FLEX 180W/840 55X120D DALI

Product code
4532052
The FLOODLIGHT FLEX product family offers extremely long-lasting and high-quality LED floodlights. The DALI floodlights are equipped with a modern D4i-certified power supply that enables control via a modern lighting control system. The power supply can be easily replaced by a qualified electrician. The floodlight comes with all necessary penetration fittings. Key technical specifications: Luminous flux: 27700 lm, Color temperature: 4000 K, CRI > 80, Power: 180 W, Luminous efficacy: 154 lm/W, Beam angle: wide asymmetric 55 x 120 D, Dimmable: Yes, DALI D4i, Dimensions (Length/Width/Height): 552 x 361 x 68 mm, Weight: 6.6 kg, Ingress protection rating: IP66 and IK08, Average service life: 120,000 hours (L70/B50 +25 C), Average service life: 100,000 hours (L80/B10 +25 C), Operating temperature: -30…+50 C, Warranty: 5 years, Corrosion resistance class (EN 12944): C5, very severe, Certifications: CE, ENEC, D-marking. Most common applications: Sports field lighting, area lighting along coastlines, architectural lighting, general lighting for large outdoor areas. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingyes
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
With light sourceyes
Housing materialAluminium

Product codes

SAPDHY449
STK4532052
PLC4532052
GTIN/EAN4099854373640
Manufacturer part number4099854373640
Vendor material number4532052

Basic information

Package measurements (L x W x H)632 x 402 x 119 mm
Package volume30.234 l
Package weight7.826 kg
Base uniteach
Package units1 / 2 / 16
Package contents
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)48.415
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents
