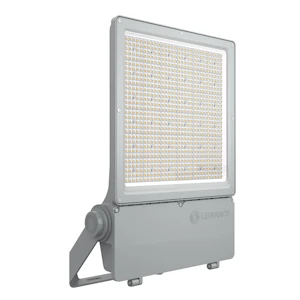

FLOODLIGHT PFM FL FLEX 360W/830 60X110D DALI
Product code
4532083
The FLOODLIGHT FLEX product family offers extremely long-lasting and high-quality LED floodlights. The DALI floodlights are equipped with a modern D4i-certified power supply that enables control via a modern lighting control system. The power supply can be easily replaced by a qualified electrician. The floodlight comes with all necessary mounting brackets.
Key technical specifications:
• Luminous flux: 48000 lm
• Color temperature: 3000 K, CRI > 80
• Power: 360 W
• Luminous efficacy: 133 lm/W
• Beam angle: wide asymmetric 60 x 110 D
• Dimmable: Yes, DALI D4i

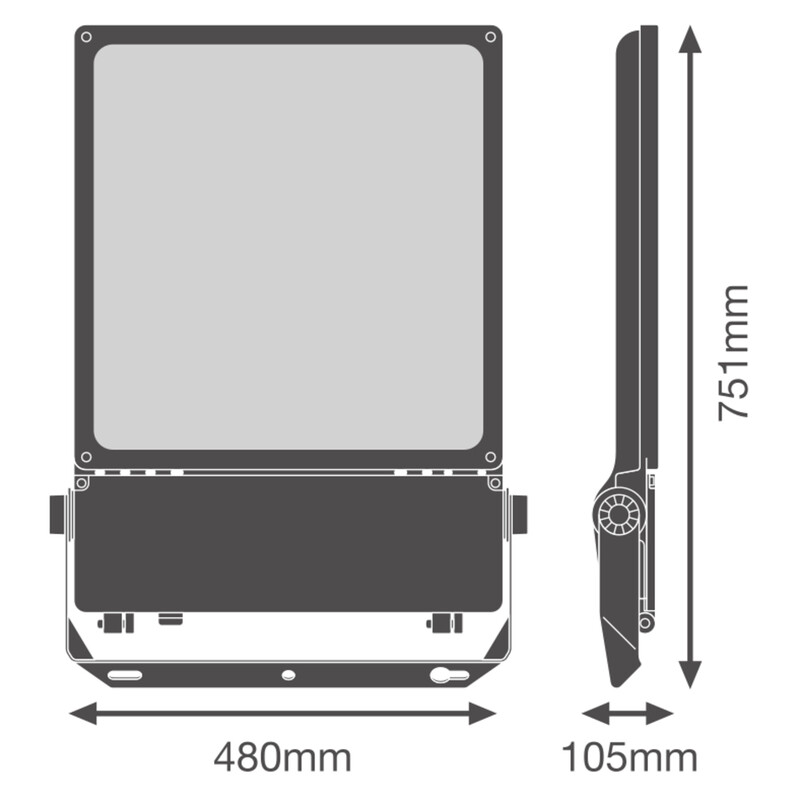

• Dimensions (Length/Width/Height): 751 x 480 x 105 mm
• Weight: 14.1 kg
• Ingress protection rating: IP66 and IK08
• Average service life: 120,000 hours (L70/B50 +25 C)
• Average service life: 100,000 hours (L80/B10 +25 C)
• Operating temperature range: -30…+50 C
• Warranty: 5 years
• Corrosion resistance class (EN 12944): C5, very severe
• Certifications: CE, ENEC, D-mark
Most common applications: Sports field lighting, coastal area lighting, architectural lighting, general lighting for large outdoor areas This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingyes
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
With light sourceyes
Housing materialAluminium
Product codes
SAPDII317
STK4532083
PLC4532083
GTIN/EAN4099854373909
Manufacturer part number4099854373909
Vendor material number4532083
Basic information
Package measurements (L x W x H)837 x 522 x 154 mm
Package volume67.285 l
Package weight16.512 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY
Documents (11)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)102.1504
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
