FLOODLIGHT PFM FL FLEX 360W/830 ML R20
Product code
4532081
The FLOODLIGHT FLEX product line offers extremely long-lasting and high-quality LED floodlights. Thanks to the Multi Lumen feature, the ON/OFF floodlights provide four different luminous flux options, easily selectable from the accessible electrical enclosure. The power supply can be easily replaced by a qualified electrical professional. The floodlight comes with all necessary penetration fittings.
Key technical specifications:
• Luminous flux: 27600 / 34400 / 41200 / 48500 lm
• Color temperature: 3000 K, CRI > 80
• Power: 198 / 252 / 306 / 360 W
• Luminous efficacy: 135 - 139 lm/W
• Beam angle: extremely narrow rotational symmetric 20 D
• Dimmable: No

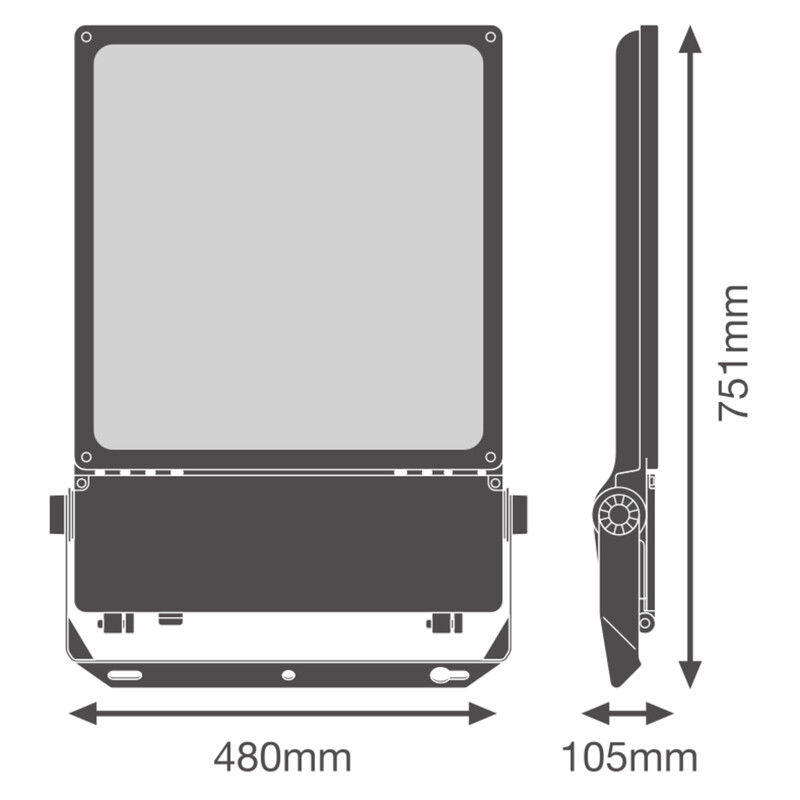

• Dimensions (Length/Width/Height): 751 x 480 x 105 mm
• Weight: 13.8 kg
• Protection rating: IP66 and IK08
• Average service life: 120,000 hours (L70/B50 +25 C)
• Average service life: 100,000 hours (L80/B10 +25 C)
• Operating temperature: -30…+50 C
• Warranty: 5 years
• Corrosion resistance class (EN 12944): C5, very severe
• Certifications: CE, ENEC, D-mark
Most common applications: Sports field lighting, area lighting along coastlines, architectural lighting, general lighting for large outdoor areas This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingyes
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
With light sourceyes
Housing materialAluminium
Product codes
SAPDII313
STK4532081
PLC4532081
GTIN/EAN4099854373770
Manufacturer part number4099854373770
Vendor material number4532081
Basic information
Package measurements (L x W x H)837 x 522 x 154 mm
Package volume67.285 l
Package weight16.212 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY
Documents (11)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)100.2944
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
