FLOODLIGHT PFM FL FLEX 360W/840 R20 DALI

Product code
4532090

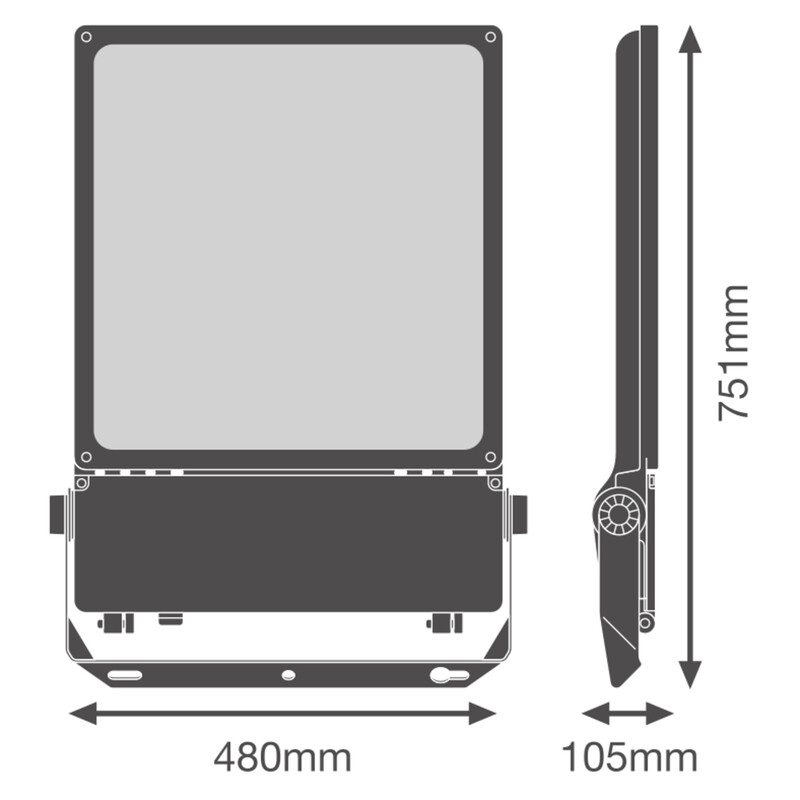

The FLOODLIGHT FLEX product family offers extremely long-lasting and high-quality LED floodlights. The DALI floodlights are equipped with a modern D4i-certified power supply that enables control via a modern lighting control system. The power supply can be easily replaced by a qualified electrician. The floodlight comes with all necessary penetration fittings. Key technical specifications: • Luminous flux: 52500 lm • Color temperature: 4000 K, CRI > 80 • Power: 450 W • Luminous efficacy: 146 lm/W • Beam angle: extremely narrow rotational symmetric 20 D • Dimmable: Yes, DALI D4i • Dimensions (Length/Width/Height): 751 x 480 x 105 mm • Weight: 14.1 kg • Ingress protection rating: IP66 and IK08 • Average service life: 120,000 hours (L70/B50 +25 C) • Average service life: 100,000 hours (L80/B10 +25 C) • Operating temperature: -30…+50 C • Warranty: 5 years • Corrosion resistance class (EN 12944): C5, very severe • Certifications: CE, ENEC, D-mark Most common applications: Sports field lighting, area lighting along coastlines, architectural lighting, general lighting for large outdoor areas This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingyes
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
With light sourceyes
Housing materialAluminium

Product codes

SAPDII300
STK4532090
PLC4532090
GTIN/EAN4099854373978
Manufacturer part number4099854373978
Vendor material number4532090

Basic information

Package measurements (L x W x H)837 x 522 x 154 mm
Package volume67.285 l
Package weight16.512 kg
Base uniteach
Package units1 / 6
Package contents
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)102.1504
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
