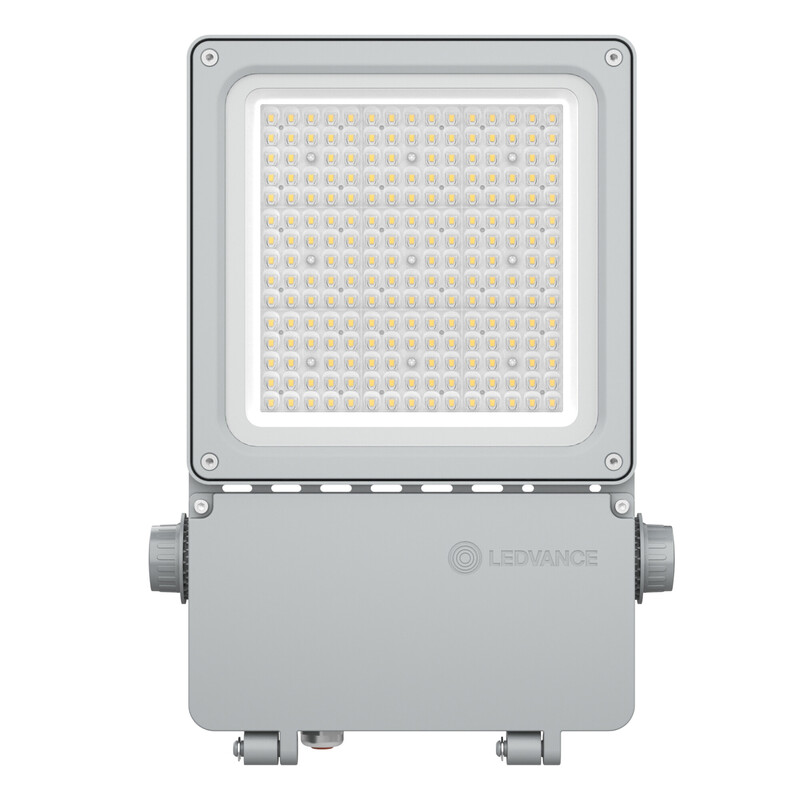

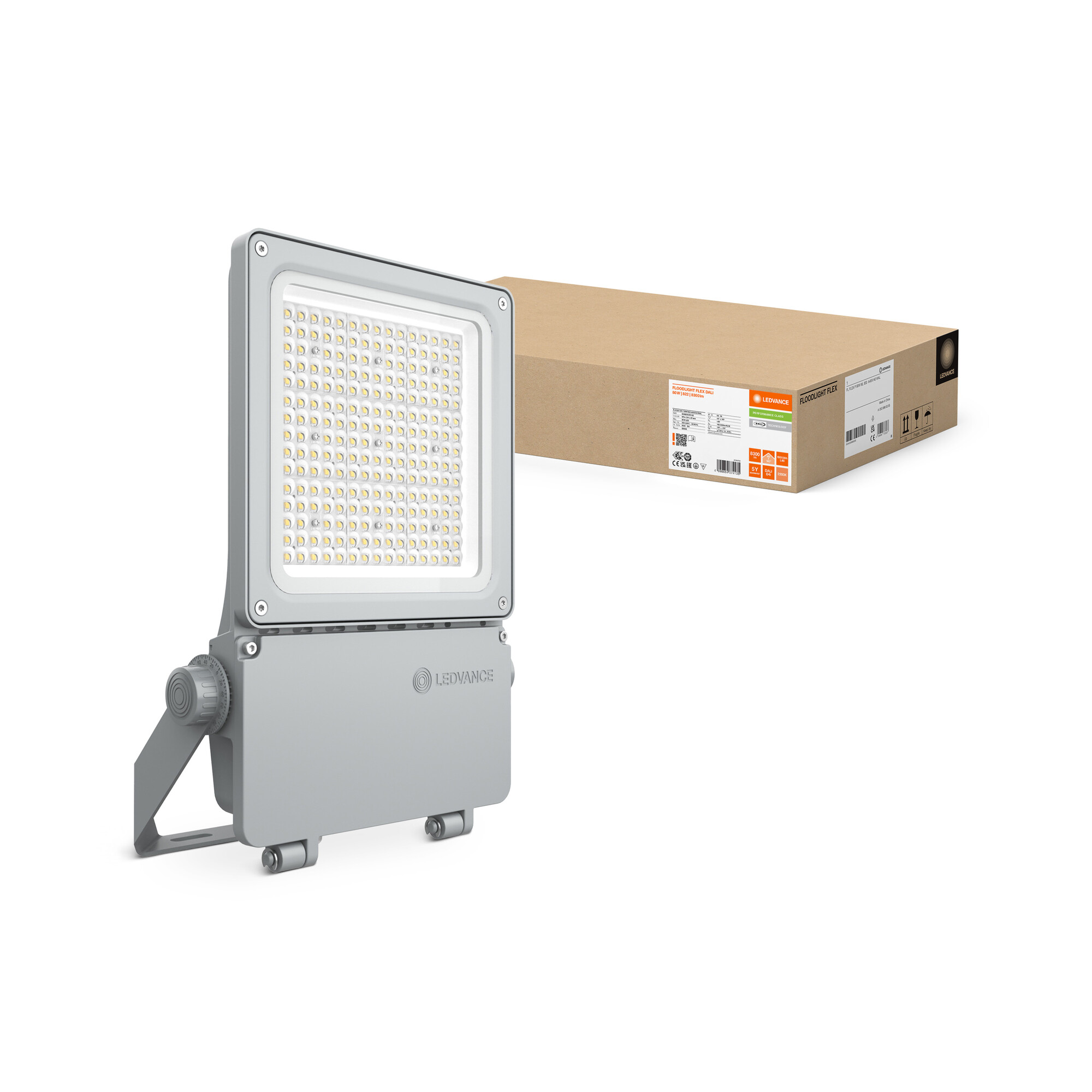

FLOODLIGHT PFM FL FLEX 80W/822 45X140D DALI

Product code
4532022

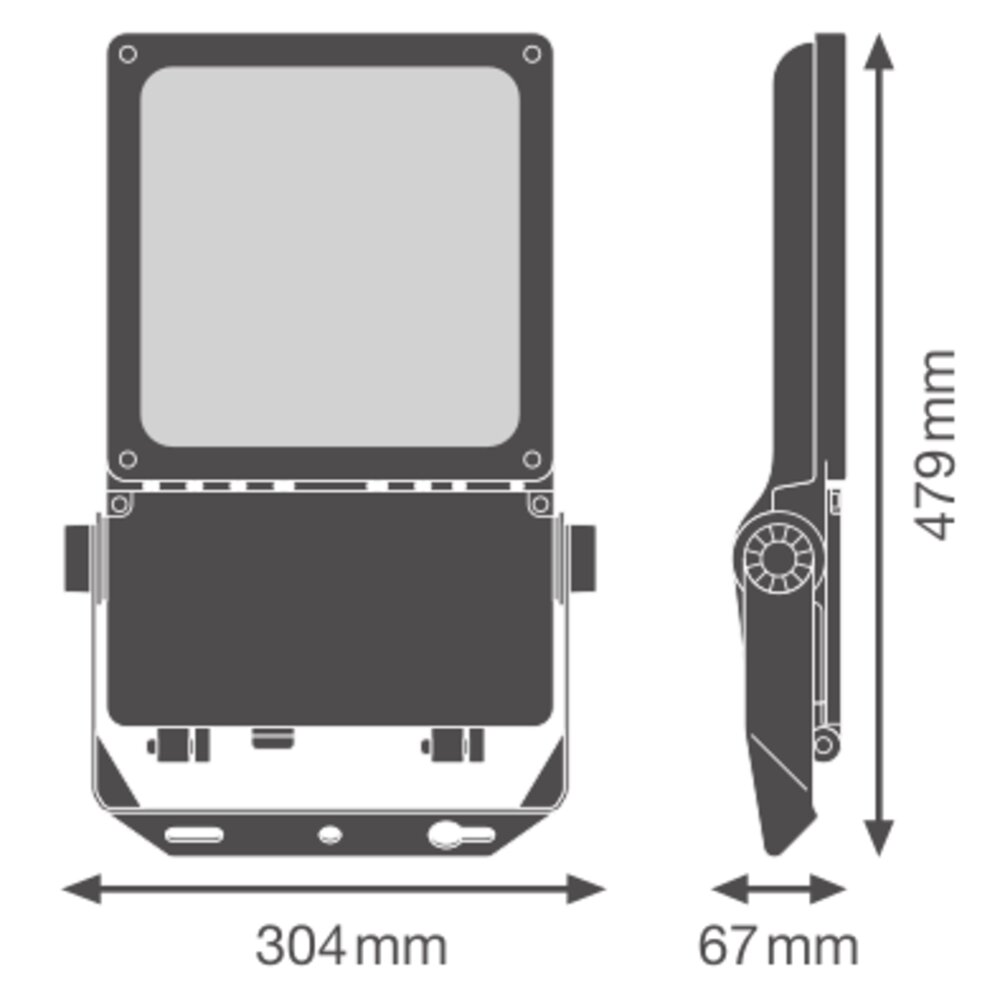

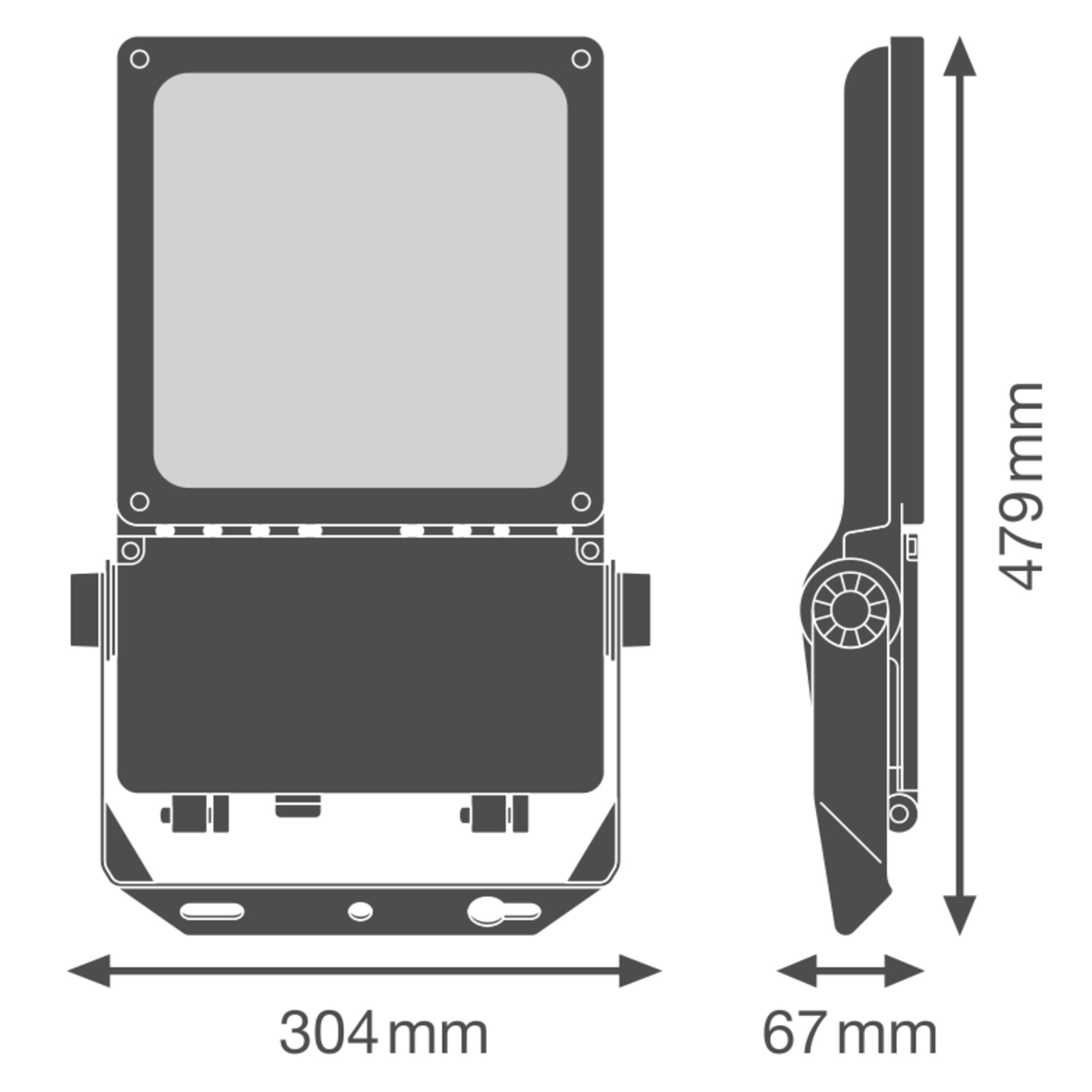

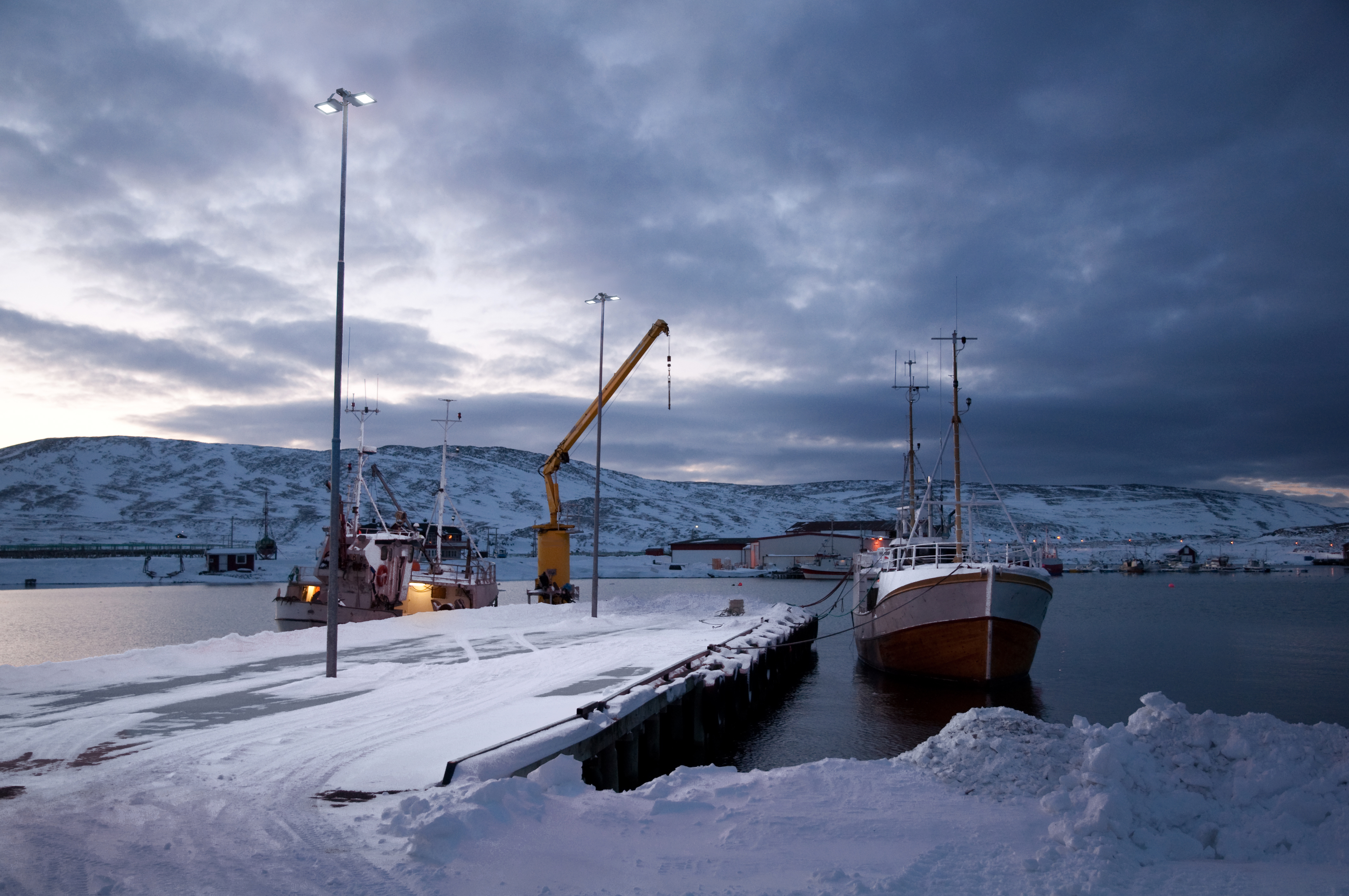

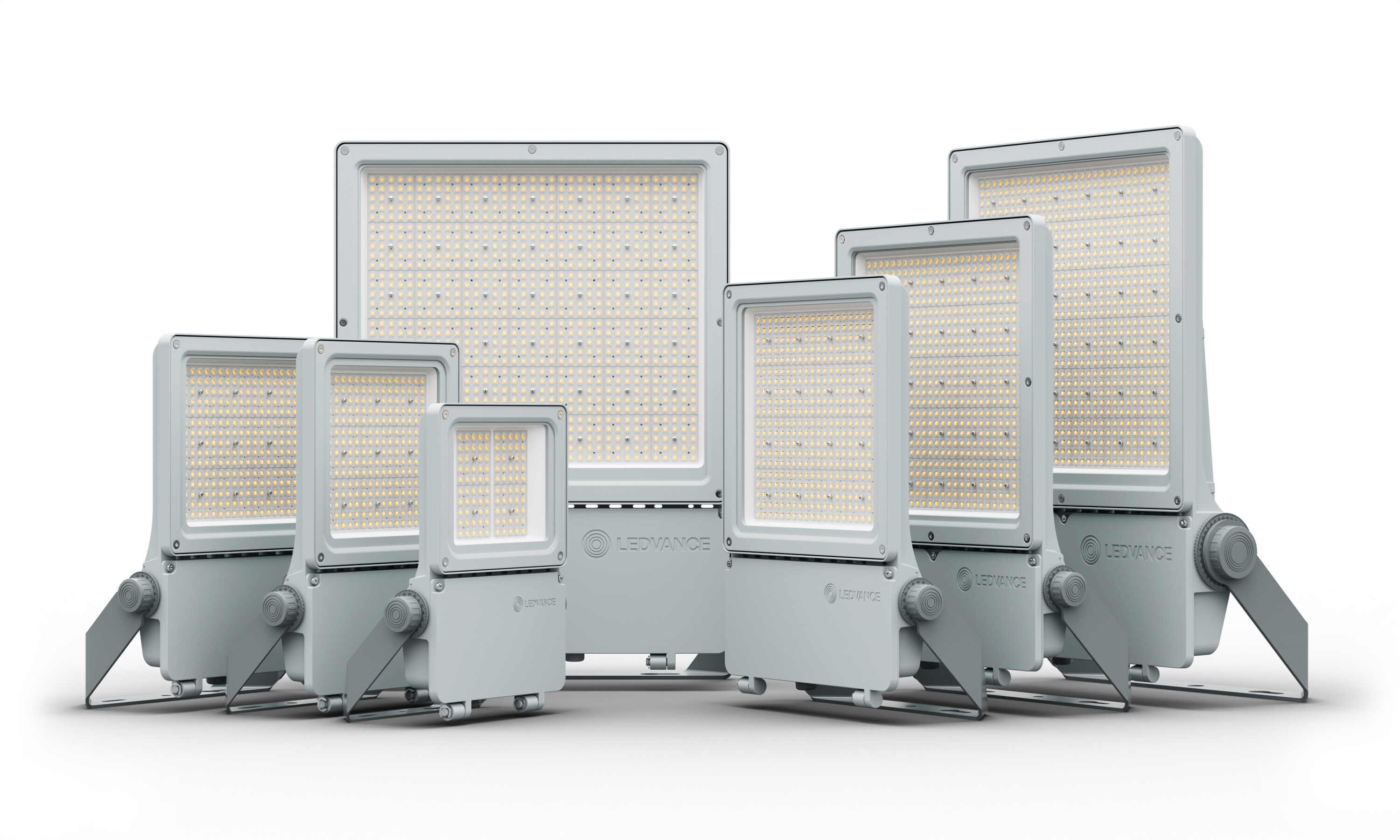

The FLOODLIGHT FLEX product family offers extremely long-lasting and high-quality LED floodlights. The DALI floodlights are equipped with a modern D4i-certified power supply that enables control via a modern lighting control system. The power supply can be easily replaced by a qualified electrician. The floodlight comes with all necessary pass-through fittings. Key technical specifications: • Luminous flux: 8300 lm • Color temperature: 2200 K, CRI > 80 • Power: 80 W • Luminous efficacy: 104 lm/W • Beam angle: extremely wide asymmetric 45 x 140 D • Dimmable: Yes, DALI D4i • Dimensions (Length/Width/Height): 479 x 304 x 67 mm • Weight: 4.7 kg • Protection rating: IP66 and IK08 • Average service life: 120,000 hours (L70/B50 +25 C) • Average service life: 100,000 hours (L80/B10 +25 C) • Operating temperature: -30…+50 C • Warranty: 5 years • Corrosion class (EN 12944): C5, very severe • Certifications: CE, ENEC, D-marking Most common applications: Sports field lighting, area lighting along coastlines, architectural lighting, general lighting of large outdoor areas This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for traverse mountingyes
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
With light sourceyes
Housing materialAluminium

Product codes

SAPDII306
STK4532022
PLC4532022
GTIN/EAN4099854374135
Manufacturer part number4099854374135
Vendor material number4532022

Basic information

Package measurements (L x W x H)557 x 342 x 114 mm
Package volume21.716 l
Package weight5.844 kg
Base uniteach
Package units1 / 4 / 36
Package contents
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)36.1535
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
