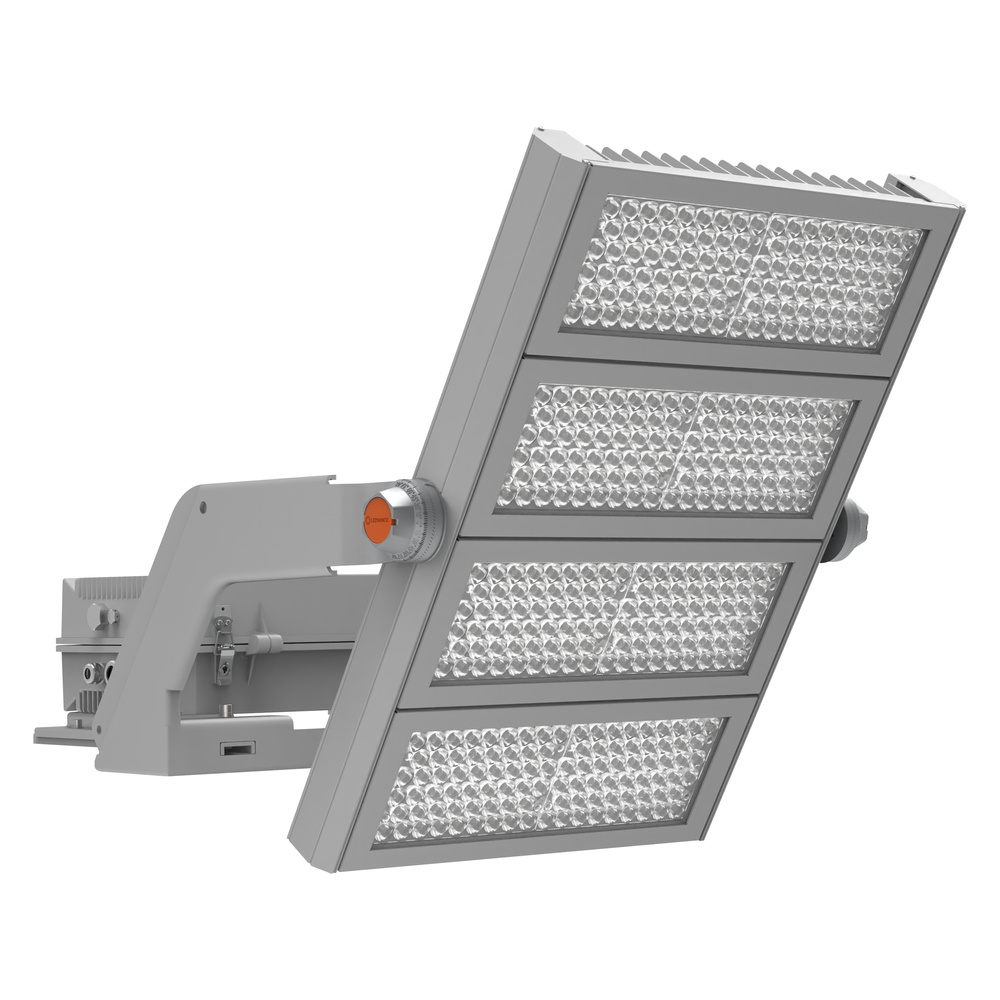

FLOODLIGHT PFM FL MAX 1200W/757 50X110 164KLM
Product code
4529726
Compatible power supply: 4529729 FL MAX POWER SUPPLY 1200W LEDVANCE Floodlight Max luminaires are excellently suited for illuminating large areas and sports fields. NOTE: luminaires and their compatible power supplies are sold separately. The luminaires can be easily connected to power supplies using quick-connectors. Floodlight Max luminaires can be connected so that only a portion of the modules are turned on. Thanks to this feature, a simple connection enables staged lighting activation and even greater energy savings. Luminaires are available with symmetrical beam angles of 10, 30, and 60 degrees, as well as an asymmetrical beam angle of 50x110 degrees. All beam angles are available in models with luminous fluxes of approximately 80,000, 120,000, and 160,000 lm. The color temperature of the luminaires is 5700 K. LEDVANCE Floodlight Max luminaires are suitable for operation in temperatures ranging from -30 °C to +50 °C, are rated IP66 and IK08, and have received ENEC certification. The average service life of the luminaires is up to 100,000 hours (L70/B50 @ +25 °C), and they come with a five-year product warranty. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for traverse mountingyes
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With light sensorno
Lamp typeLED not exchangeable
With light sourceyes
Product codes
SAPCOY308
STK4529726
PLC4529726
GTIN/EAN4058075580695
Manufacturer part number4058075580695
Vendor material number4529726
Basic information
Package measurements (L x W x H)952 x 619 x 294 mm
Package volume173.251 l
Package weight31.9 kg
Base uniteach
Package units1 / 3
Package contents–
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)414.7
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
