FLOODLIGHT PFM FL MAX 1800W 857 65X120 204KLM

Product code
4544205

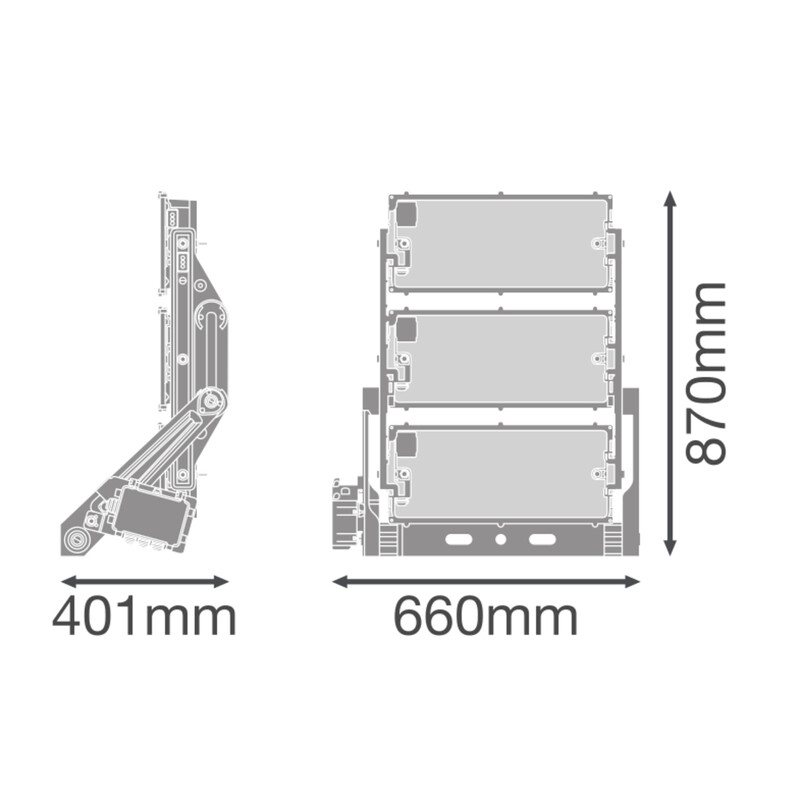

FLOODLIGHT MAX GEN2 -series offers powerful floodlights for illuminating sports fields and large areas. Each light module can be tilted. The floodlight is also ball-resistant (DIN 18032-32) and therefore suitable for illuminating sports halls. With an optional Connector Box, power sources can be placed up to 150 m away from the floodlights. Key technical specifications: • Luminous flux: 204400 lm • Color temperature: 5700 K, CRI 80 • Power: 1800 W • Luminous efficacy: 113 lm/W • Beam angle: 65x120 D • Dimmable: Yes • Dimensions (Length/Width/Height): 870 x 401 x 660 mm • Weight: 25.9 kg • Protection rating: IP66 and IK08 • Color: RAL9006, White aluminium • Average service life: 115,000 hours (L70/B50 +25 C) • Average service life: 75,000 hours (L80/B10 +25 C) • Operating temperature: -40…+50 C • Warranty: 5 years • Corrosion resistance class (EN 12944): C5-M • Certifications: CE, CB, ENEC, UKCA, EAC, EPD Most common applications: Sports stadiums, arenas, harbors, monument lighting This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Downlight/spot/floodlight (EC001744)
Suitable for surface mountingyes
Suitable for built-in mountingno
Suitable for wall mountingyes
Suitable for suspended mountingyes
Suitable for ceiling mountingno
Suitable for traverse mountingyes
Suitable for pedestal/floor mountingyes
Suitable for light-track mountingno
Suitable for clamp-mountingno
Suitable for low voltage cable systemno
AdjustabilitySwivelling
With movement sensorno
With presence detectorno
With light sensorno
Lamp typeLED exchangeable

Product codes

SAPDNF661
STK4544205
PLC4544205
GTIN/EAN4099854682643
Manufacturer part number4099854682643
Vendor material number4544205

Basic information

Package measurements (L x W x H)977 x 742 x 279 mm
Package volume202.257 l
Package weight28.6 kg
Base uniteach
Package units1 / 3
Package contents
UNSPSC39111611
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)212.2046
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
