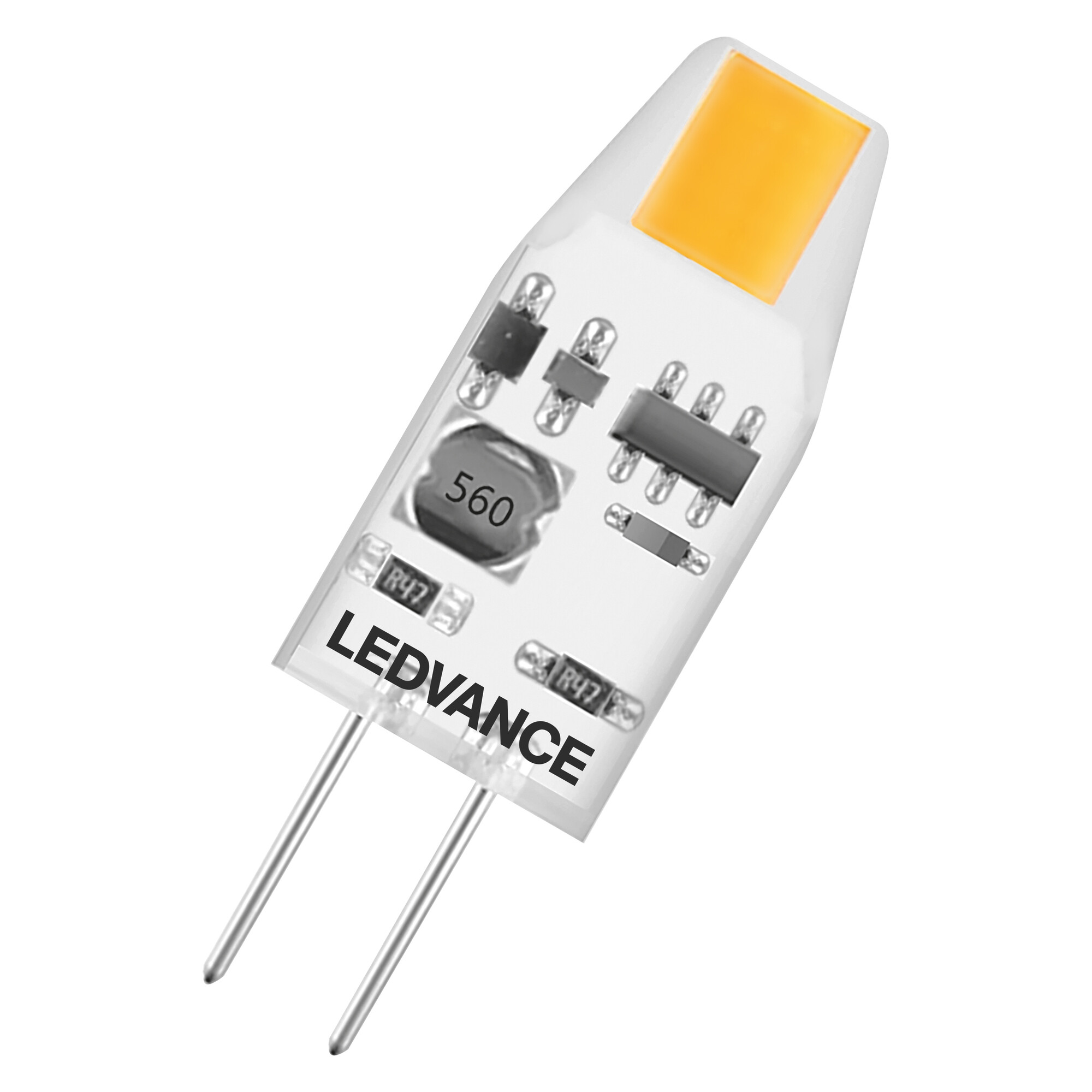

LED-LAMP PARATHOM SPECIAL PIN MICRO 1W/827 100LM G4 CL
Product code
4737969
LED PIN PERFORMANCE - This product family offers a long-lasting and energy-efficient LED miniature lamp as a replacement for the most common pin halogen lamps. LED miniature lamps may be larger than the old halogen lamps, so make sure the LED miniature lamp fits in the fixture.
Key technical specifications
- Luminous flux: 100 lm (equivalent to 10 W)
- Base: Pin
- Base material: clear plastic
- Color temperature: 2700 K
- Color rendering index: over 80
- Dimmable: No
- Base type: G4 / 12 V
- Power: 1 W
- Luminous efficacy: 100 lm/W
- Energy efficiency class: F

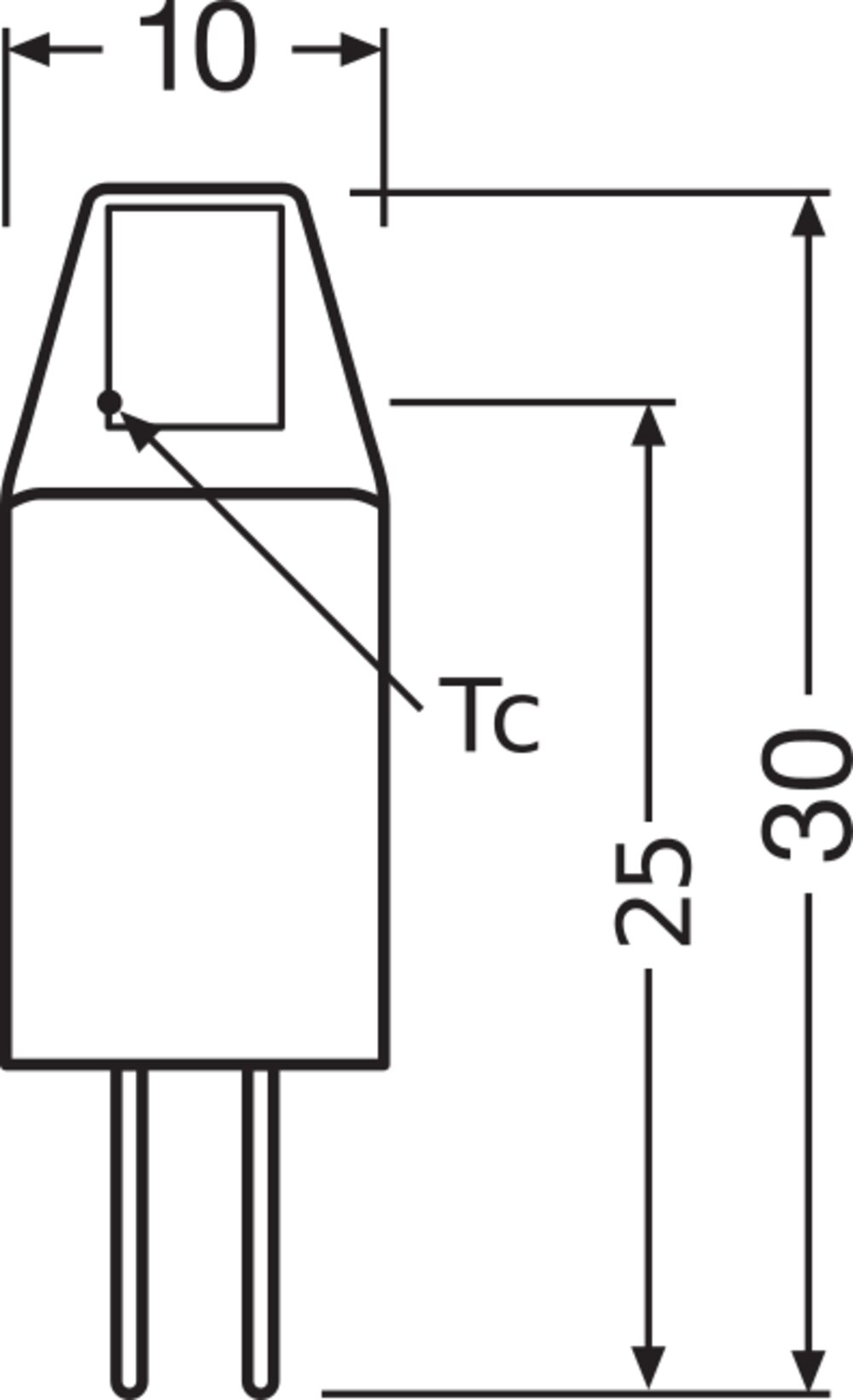

- Dimensions (length/diameter): 30 x 10 mm
- Operating temperature: -20…+40 C
- Service life: 15,000 hours (L70/B50 +25 C)
- Warranty: 4 years
A list of compatible transformers can be found at: ledvance.fi/ecg.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)LED-lamp/Multi-LED (EC001959)
Nominal voltage12 - 12 V
Nominal current130 - 130 mA
Power factor0.5
Lamp power1 - 1 W
Voltage typeAC/DC
Suitable for electronic ballastno
Suitable for magnetic ballastno
Luminous flux100 - 100 lm
Rated luminous flux according to IEC 62612100 lm
Lamp efficacy100 lm/W
Colour rendering index CRI80-89
Lamp shapeOther
Filament lampno
Type of glass/coverClear
Colour of light according to EN 12464-1Warm white < 3300 K
Product codes
SAPDEZ385
STK4737969
PLC4737969
GTIN/EAN4099854278563
Manufacturer part number4099854278563
Vendor material number4737969
Basic information
Package measurements (L x W x H)67 x 30 x 28 mm
Package volume0.06 l
Package weight0.001 kg
Base uniteach
Package units1 / 20 / 980 / 12740
Package contents–
UNSPSC39101628
BrandLEDVANCE
VendorLEDVANCE OY
Documents (10)
Environment and safety
Sustainability categories
Circular economy
Features
Fully recyclable packagingYes
Warranty (years)4
Incandescent, halogen or fluorescent lightingNo
Energy efficiency classF
Packaging made of recycled materialsYes
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
