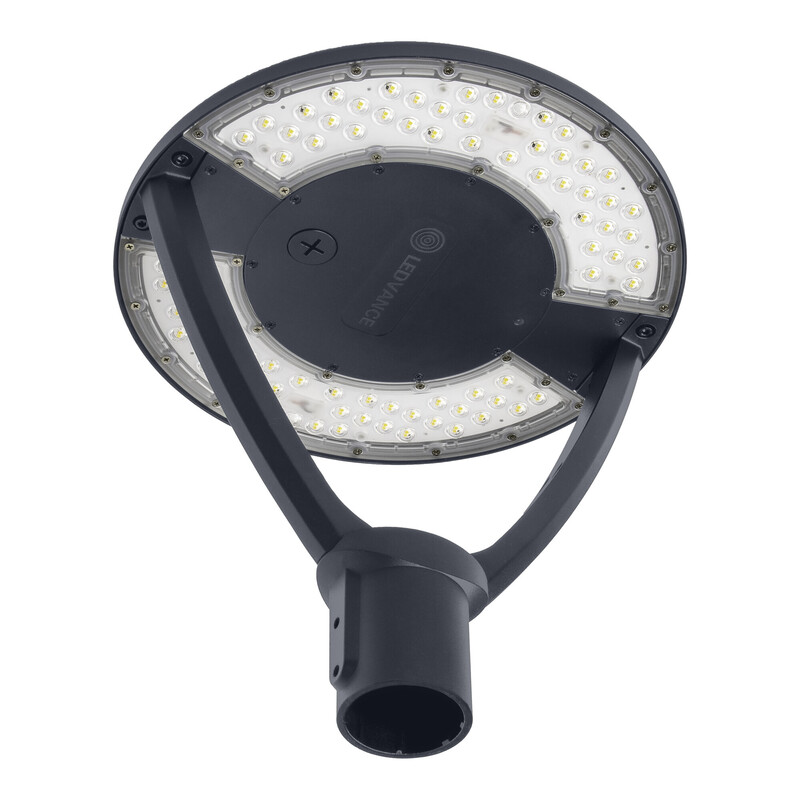

POLE MOUNT. LUM. URBAN LANTERN URBN LTRN 29W CCT PS SYM GY
Product code
4529864

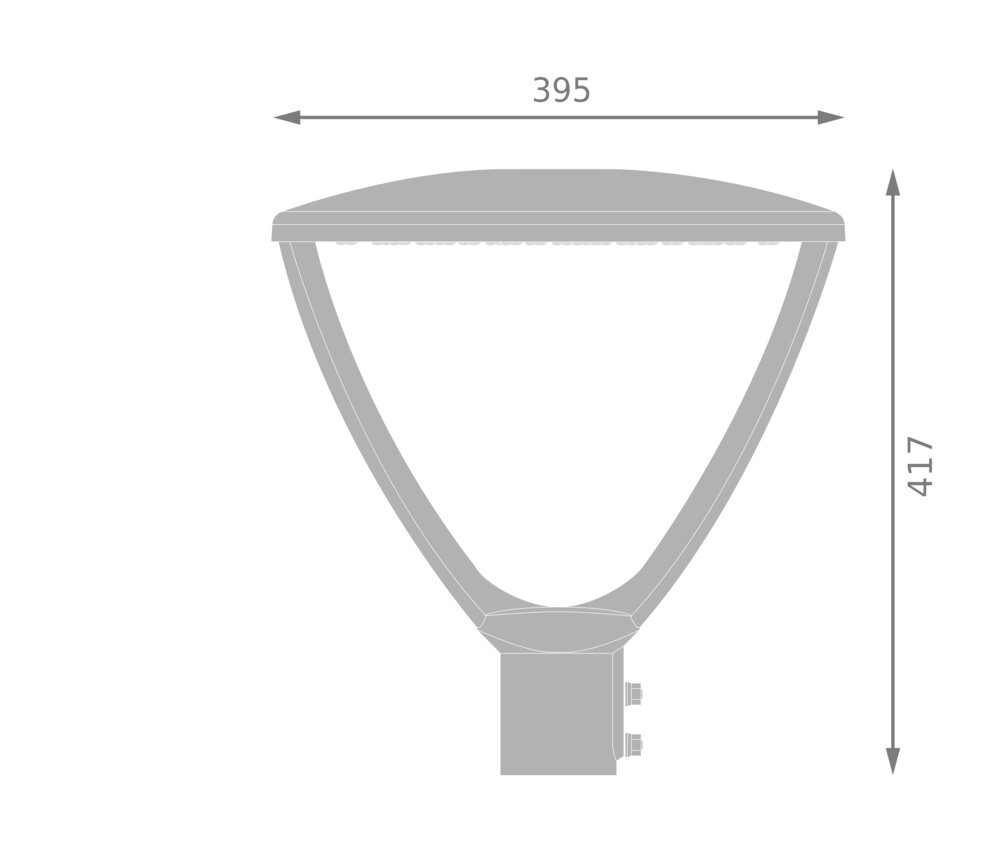

URBAN LANTERN product line offers cost-effective and extremely long-lasting pole lights for illuminating various courtyards or parks. The light fixture body is made of robust powder-coated aluminum and the optics are made of polycarbonate. The light is equipped with a fixed 250 mm long connection cable. Key technical specifications: Luminous flux: 2040 / 2720 / 3700 / 3945 lm Color temperature: 3000 / 4000 K, CRI80 Power: 15 / 20 / 25 / 29 W Luminous efficacy: 136 lm/W Beam angle: 145 D Dimmable: No Dimensions (diameter/height): 395 x 417 mm Weight: 4.155 kg Light color: Graphite gray, RAL7024 Ingress protection rating: IP66 and IK10 Average service life: 100,000 hours (L70/B50 +25 C) Operating temperature range: -30…+50 C Warranty: 5 years Pole mount diameter: 45 - 60 mm Certifications: CE, ENEC Most common applications: Park walkways, courtyards, and parking areas This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Luminaire for streets and places (EC000062)
Mounting methodPost top
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Lamp holderNone
Housing materialAluminium
Surface protectionPowder coating
Housing colourGrey
Material coverPlastic, opal
Voltage typeAC
Nominal voltage220 - 250 V
Nominal current70 - 130 mA
With control gearyes
Type of control gearElectronic ballast
Exchangeable control gearno
Product codes
SAPDET427
STK4529864
PLC4529864
GTIN/EAN4099854246838
Manufacturer part number4099854246838
Vendor material number4529864
Basic information
Package measurements (L x W x H)435 x 430 x 205 mm
Package volume38.35 l
Package weight5.42 kg
Base uniteach
Package units1 / 2 / 8
Package contents–
UNSPSC39111605
BrandLEDVANCE
VendorLEDVANCE OY
Documents (9)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)41.3446
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
