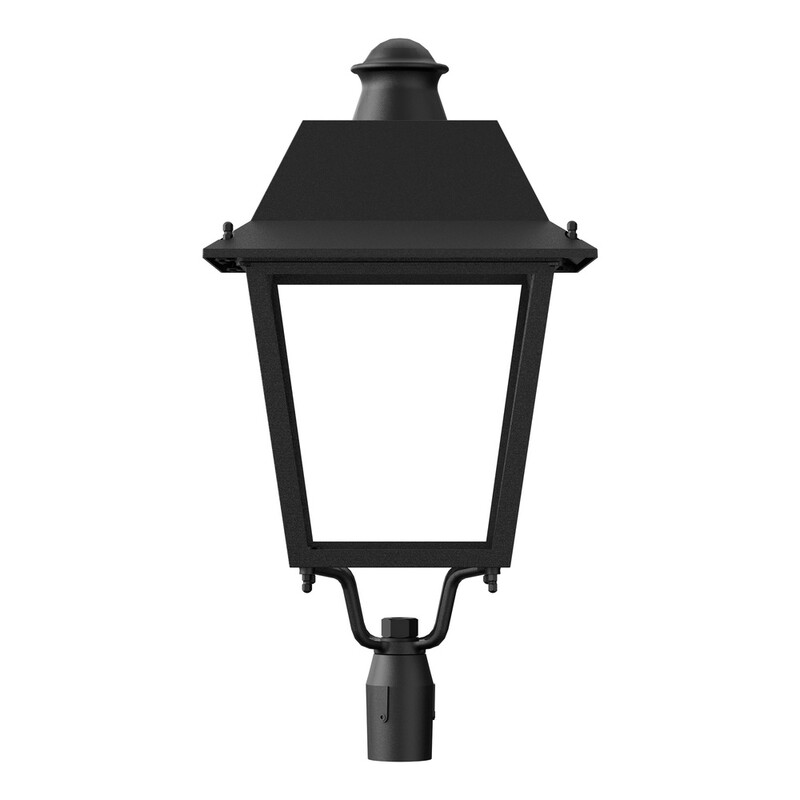

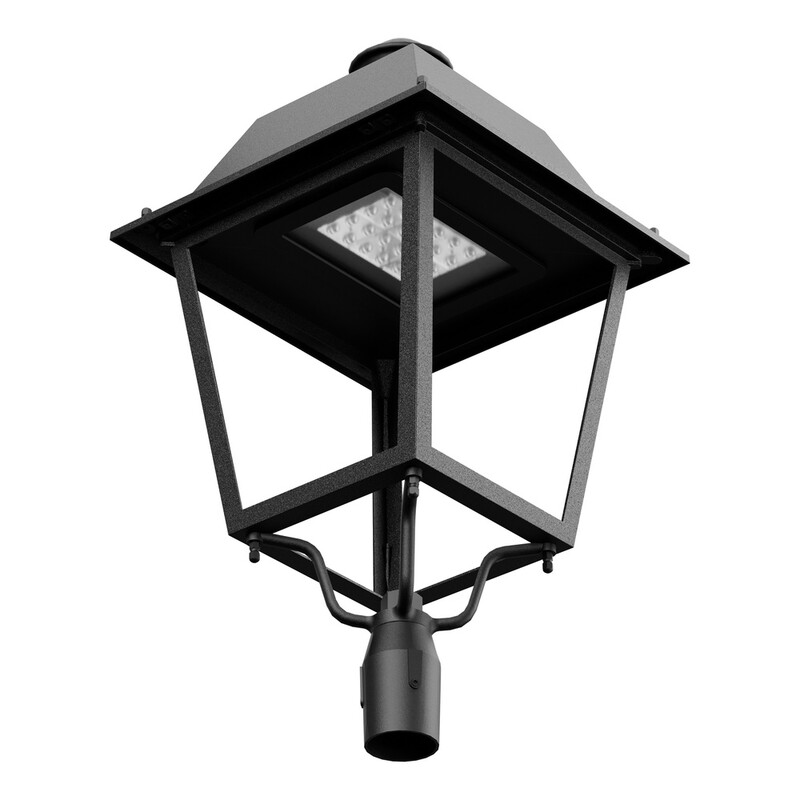

POLE MOUNTED LUMINAIRE URBAN VILLA 40W 730 SYM140
Product code
4544125
URBAN VILLA product line features long-lasting column lights reminiscent of traditional lanterns. The light fixture body is made from durable, low-copper aluminum and coated with a corrosion-resistant powder coating. The light has passed a 1000-hour salt spray test.
Key technical specifications:
• Luminous flux: 4800 lm
• Color temperature: 3000 K, CRI70
• Power: 40 W
• Luminous efficacy: 120 lm/W
• Beam angle: symmetrical 140°
• Dimmable: No
• Dimensions (Length/Width/Height): 425 x 425 x 816 mm
• Weight: 8.9 kg
• Ingress protection rating: IP66 and IK08
• Average service life: 100,000 hours (L70/B50 +25°C)
• Average service life: 70,000 hours (L70/B50 +25°C)
• Operating temperature: -20…+45°C
• Warranty: 5 years
• Column mount diameter: 60 mm
• Certifications: CE, ENEC
Common applications: Parks, pedestrian paths, historical outdoor lighting sites This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Luminaire for streets and places (EC000062)
Mounting methodPost top
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Housing materialAluminium
Surface protectionPowder coating
Housing colourBlack
Material coverGlass transparent
Solar poweredno
With integrated PV panelno
Built-in batteryno
Suitable for off-grid power systemno
Voltage typeAC
Nominal voltage220-240 V
Nominal current179-179 mA
Product codes
SAPDMK642
STK4544125
PLC4544125
GTIN/EAN4099854609213
Manufacturer part number4099854609213
Vendor material number4544125
Basic information
Package measurements (L x W x H)452 x 452 x 680 mm
Package volume138.927 l
Package weight10.647 kg
Base uniteach
Package units1 / 2 / 2
Package contents–
UNSPSC39111605
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)91.8398
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
