POLE MTD. LUM. URBAN LANTERN UL VALUE 29W CCT ML SYM BK 6m
Product code
4544145

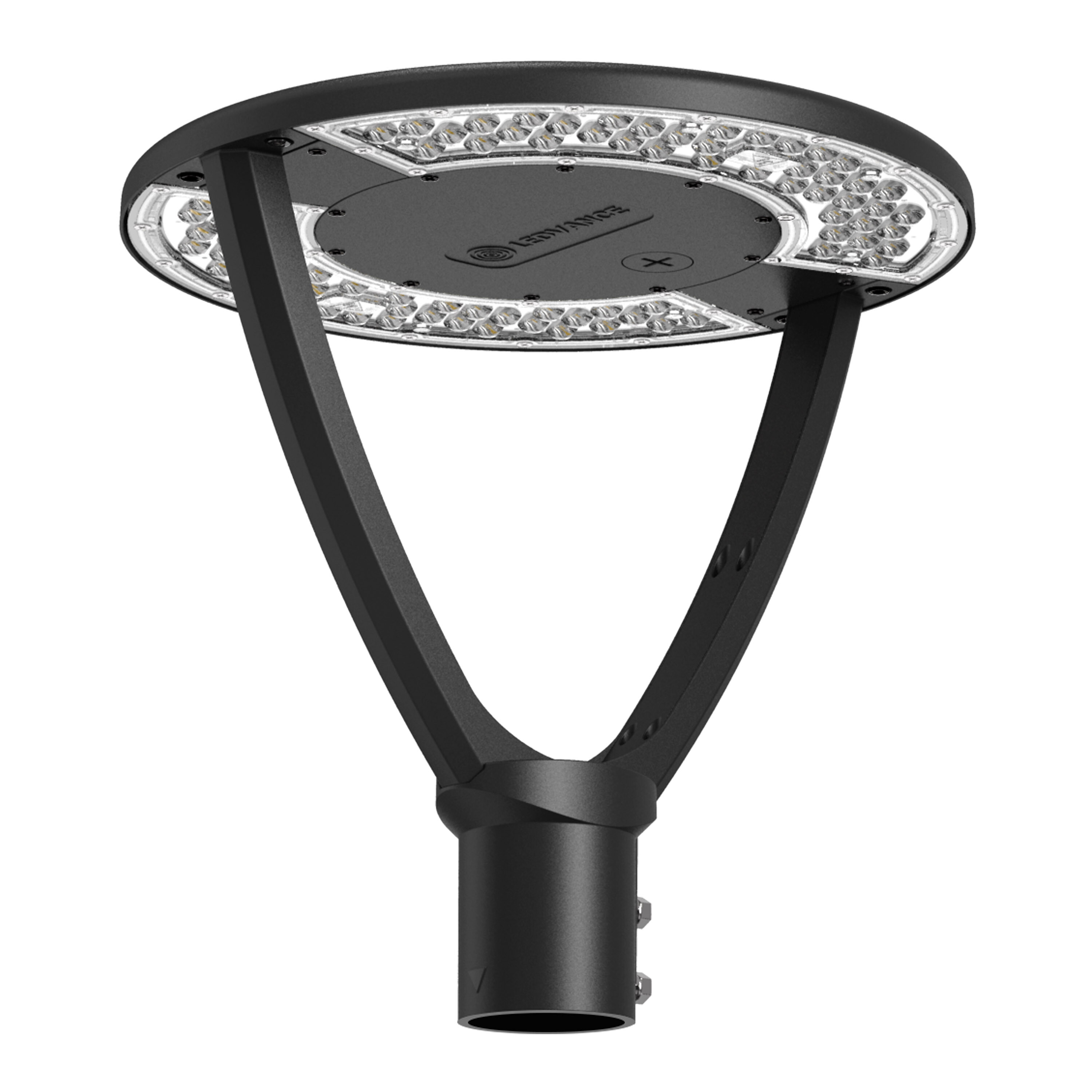

URBAN LANTERN product line offers cost-effective and extremely long-lasting pole lights for illuminating various courtyards or parks. The lamp body is made of robust powder-coated aluminum and the optics are made of polycarbonate. The light is equipped with a fixed 6-meter connection cable.
Key technical specifications:
• Luminous flux: 3000K: 1950 / 2600 / 3250 / 3770 lm; 4000K: 2040 / 2720 / 3400 / 3945 lm
• Color temperature: 3000 / 4000 K, CRI80
• Power: 15 / 20 / 25 / 29 W
• Luminous efficacy: 136 lm/W

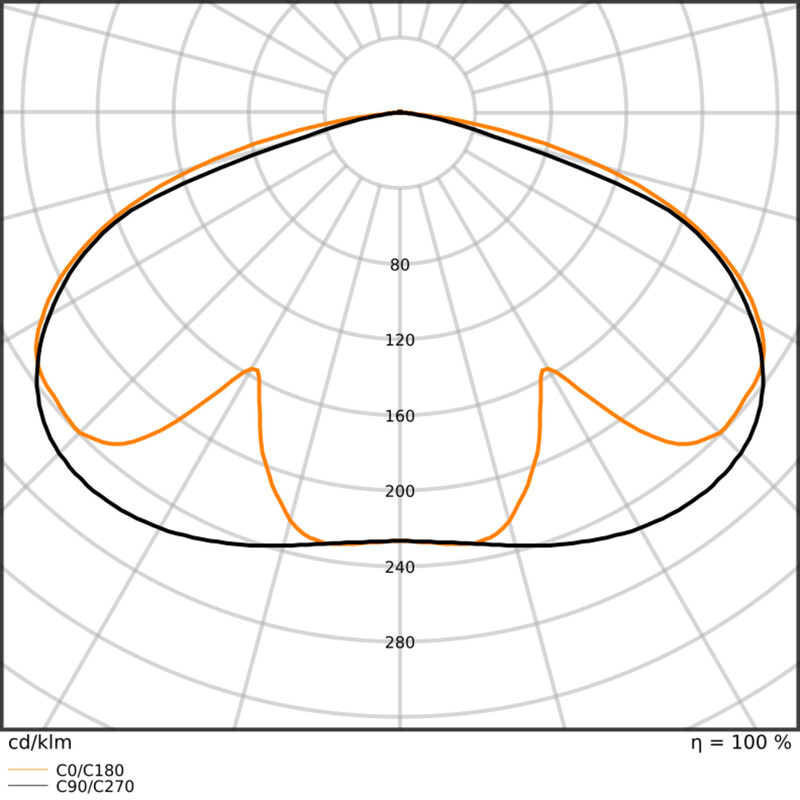

• Beam angle: 145 D
• Dimmable: No

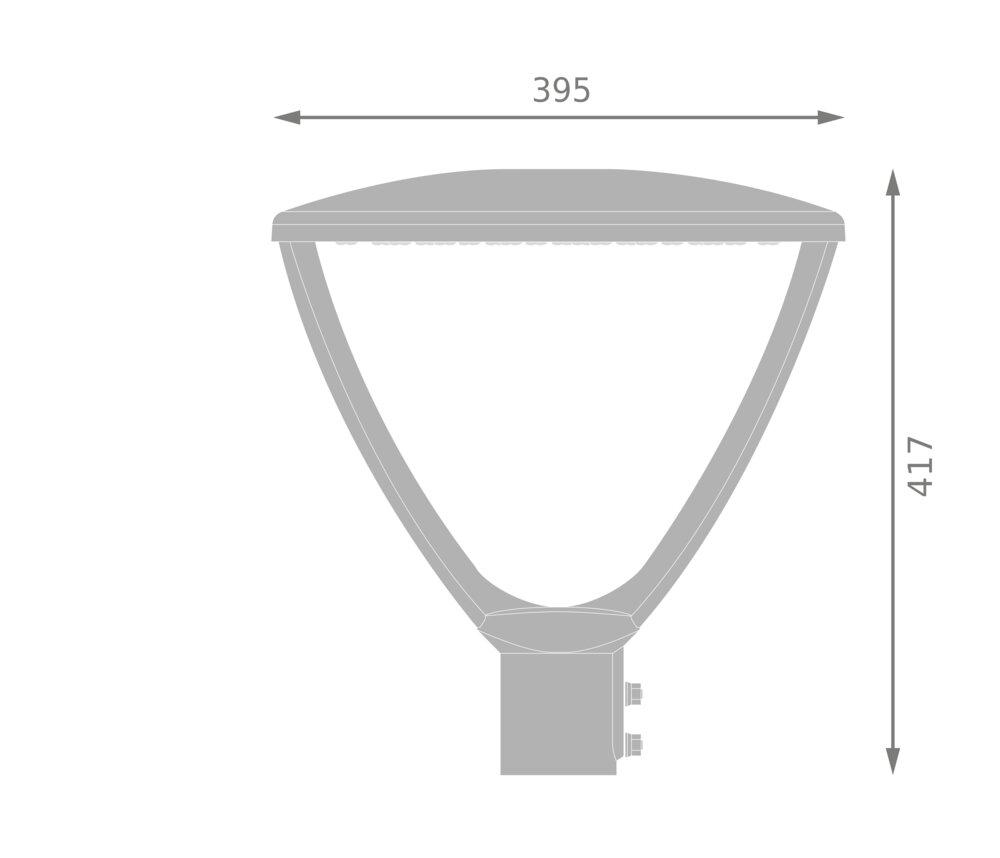

• Dimensions (diameter/height): 395 x 417 mm
• Weight: 4.562 kg
• Lamp color: Traffic Black, RAL9017
• Protection rating: IP66 and IK10
• Average service life: 100,000 hours (L70/B50 +25 C)
• Operating temperature range: -30…+50 C
• Warranty: 5 years
• Pole mount diameter: 45 - 60 mm
• Certifications: CE, ENEC
Most common applications: Park walkways, courtyards, and parking areas This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Luminaire for streets and places (EC000062)
Mounting methodPost top
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Housing materialAluminium
Surface protectionPowder coating
Housing colourBlack
Material coverPlastic, opal
Solar poweredno
With integrated PV panelno
Built-in batteryno
Suitable for off-grid power systemno
Voltage typeAC
Nominal voltage220 - 250 V
Nominal current70 - 70 mA
Product codes
SAPDMT245
STK4544145
PLC4544145
GTIN/EAN4099854649837
Manufacturer part number4099854649837
Vendor material number4544145
Basic information
Package measurements (L x W x H)435 x 435 x 220 mm
Package volume41.63 l
Package weight4.93 kg
Base uniteach
Package units1 / 2 / 8
Package contents–
UNSPSC39111605
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)98.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001044
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
