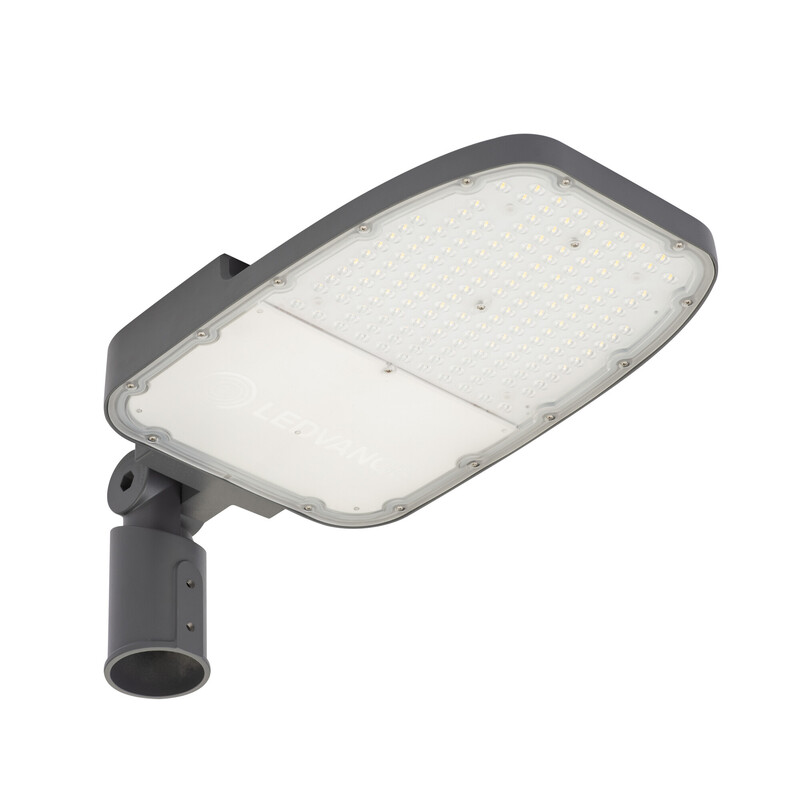

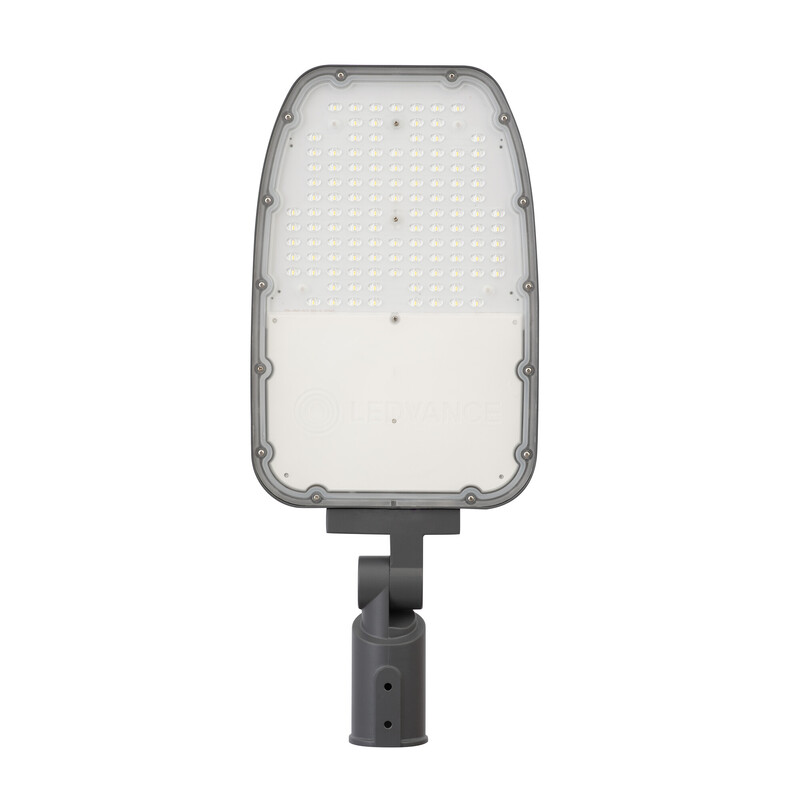

STREET LUMINAIRE ECO SL AREA 90W/765 RV35ST 12150LM

Product code
4529905

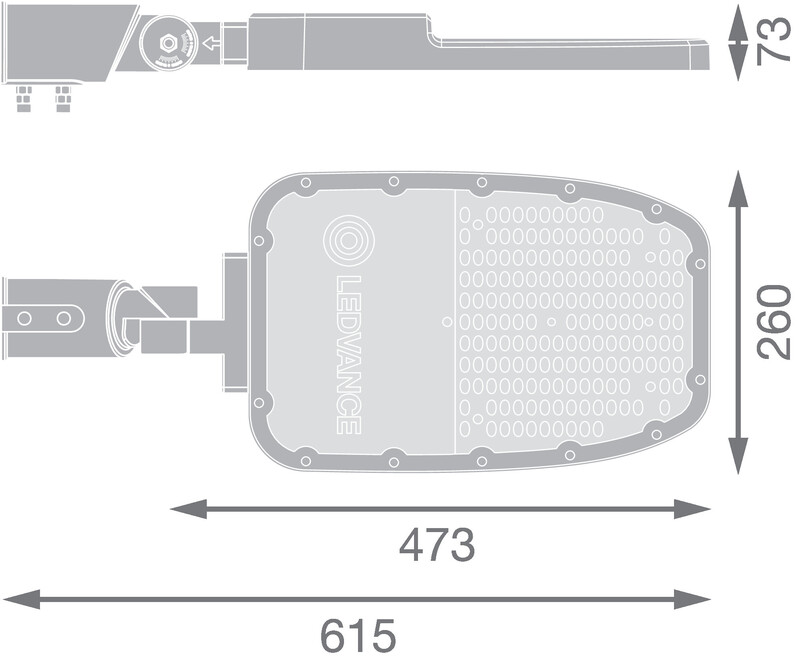

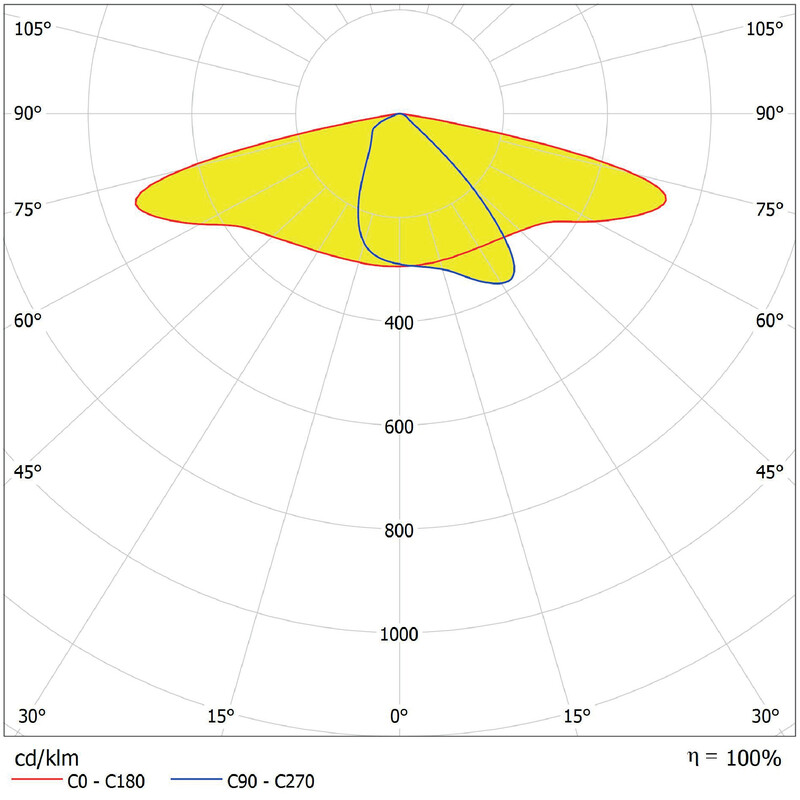

STREETLIGHT AREA - This product family offers a comprehensive range of luminaires suitable for courtyards, small parking areas, and pedestrian pathways. A pole mount is included, enabling installation on poles or horizontal arms. A fixed 500 mm long connection cable simplifies wiring. Key technical specifications: Luminous flux: 12150 lm, Color temperature: 6500 K, CRI 70, Power: 90 W, Luminous efficacy: 135 lm/W, Beam angle: 155D x 69D, RV35ST optics, Dimmable: No, Dimensions (Length/Width/Height): 473 x 260 x 73 mm, Weight: 3.2 kg, Luminaire color: Clay gray, RAL7015, Ingress protection: IP66 and IK08, Average service life: 100,000 hours (L70/B50 +25 C), Operating temperature: -30…+50 C, Warranty: 5 years, Pole mount diameter: 48 - 60 mm, Certifications: CE and ENEC This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Luminaire for streets and places (EC000062)
Mounting methodPost top
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Lamp holderNone
Housing materialAluminium
Surface protectionPowder coating
Housing colourGrey
Material coverPlastic, opal
Voltage typeAC
Nominal voltage100-240 V
Nominal current420-420 mA
With control gearyes
Exchangeable control gearyes
Dimmableno

Product codes

SAPDBK777
STK4529905
PLC4529905
GTIN/EAN4099854079863
Manufacturer part number4099854079863
Vendor material number4529905

Basic information

Package measurements (L x W x H)79 x 642 x 280 mm
Package volume14.201 l
Package weight3.33 kg
Base uniteach
Package units1 / 2 / 8 / 40
Package contents
UNSPSC39111603
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)66.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001044

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
