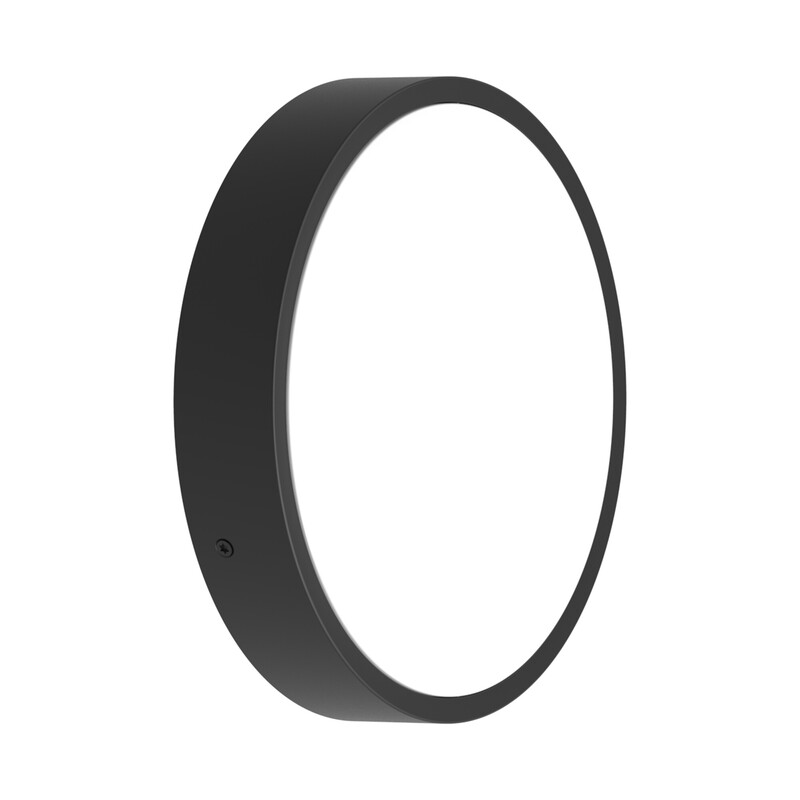

SURFACE MOUNTED LUMINAIRE BLKH RD 250 10W CCT ML BK EL
Product code
4152078

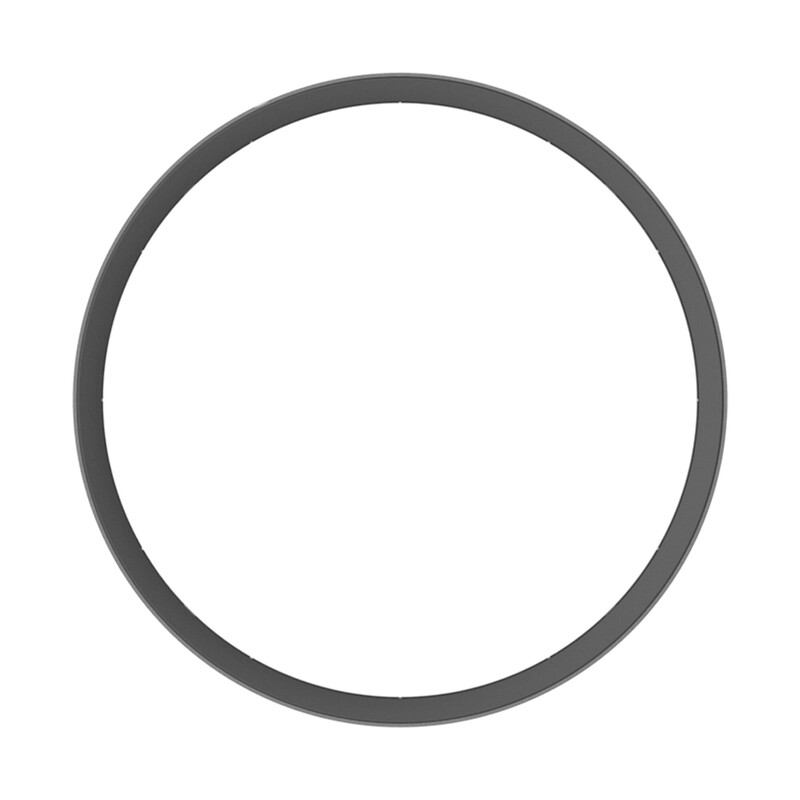

The Bulkhead Round product family offers a comprehensive range of easily installable surface-mounted outdoor lighting fixtures. Each fixture comes with a decorative frame, and the Eyelid frame is available as an optional accessory. Thanks to the Multi Select feature, the color temperature and luminous flux of the fixtures can be easily selected from the power supply. The Bulkhead Round fixtures are also Everloop products, meaning easily replaceable spare parts are available as optional additions.
Key technical specifications:
• Luminous flux: 3000K: 680 / 820 / 1020 / 1150 lm; 4000K: 710 / 860 / 1070 / 1220 lm
• Color temperature: 3000 / 4000 K, CRI > 80
• Power: 5.5 / 6.5 / 8 / 9.5 W
• Luminous efficacy: 128 - 132 lm/W

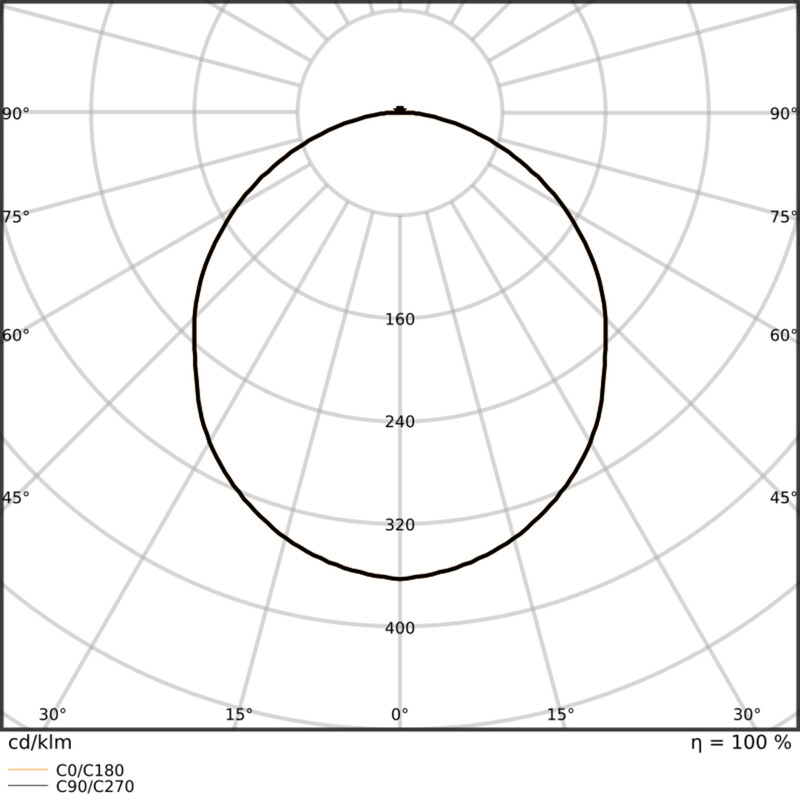

• Beam angle: 120 D
• Dimmable: No

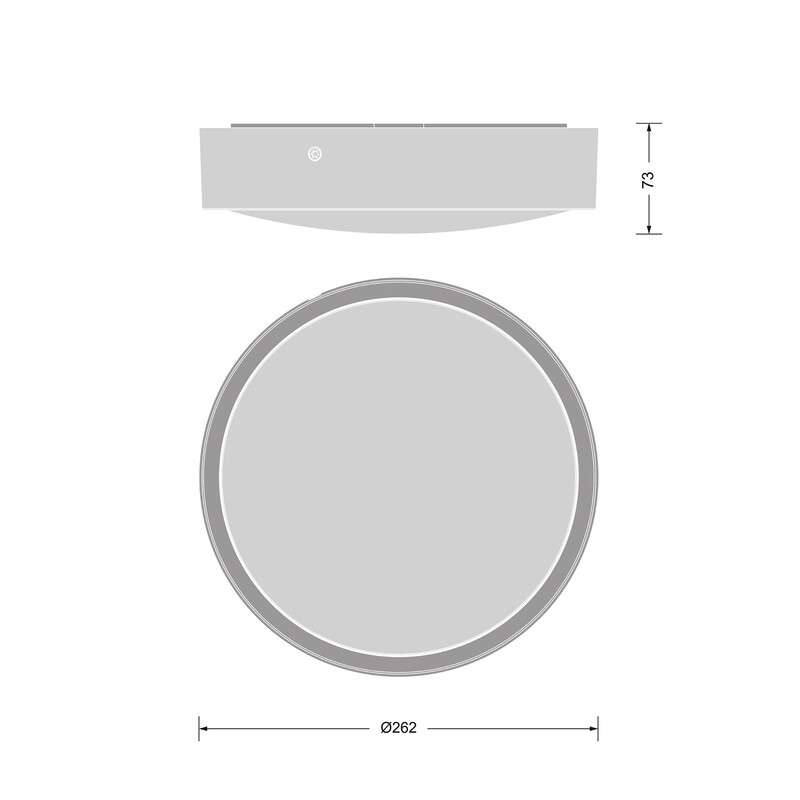

• Dimensions (diameter/height): 262 x 73 mm
• Protection rating: IP65 and IK10
• Average service life: 70,000 hours (L70/B50 +25°C)
• Operating temperature: -20...+40°C
• Warranty: 3 years
• 3-hour emergency lighting duration
• Emergency lighting luminous flux: 300 lm
• Automatic emergency lighting system self-test
Common applications: Stairwells, lobbies, facade lighting This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Lamp typeLED not exchangeable
Housing materialPlastic
Housing colourBlack
Colour temperature3000 - 4000 K
Outer diameter262 mm
Product codes
SAPDJH860
STK4152078
PLC4152078
GTIN/EAN4099854286285
Manufacturer part number4099854286285
Vendor material number4152078
Basic information
Package measurements (L x W x H)77 x 266 x 266 mm
Package volume5.448 l
Package weight1.043 kg
Base uniteach
Package units1 / 8 / 32 / 96
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)13.559
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
