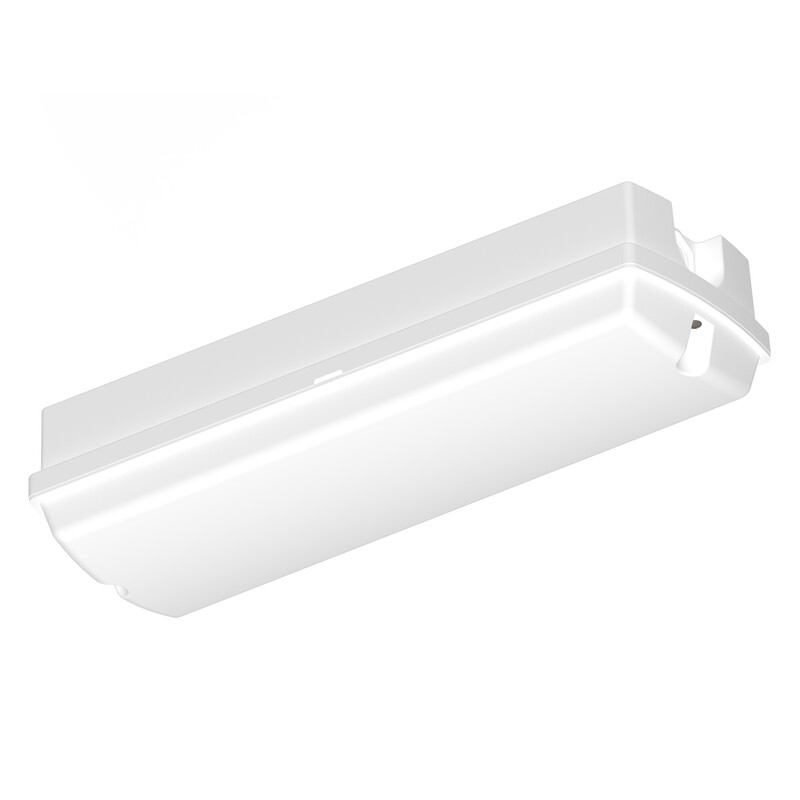

SURFACE MOUNTED LUMINAIRE BLKH RECT 8W CCT ML WT SENS EL
Product code
4152044
BULKHEAD COMPACT RECTANGULAR products are equipped with the Multi Select feature, allowing easy selection of luminous flux and color temperature during installation. The luminaire is made of polycarbonate and is suitable for outdoor use.
Key technical specifications:
• Luminous flux: 500 / 690 / 840 lm
• Color temperature: 3000 / 4000 K, CRI80
• Power: 7 / 9 / 11 W
• Luminous efficacy: 71 - 76 lm/W
• Beam angle: 125 D
• Dimmable: No

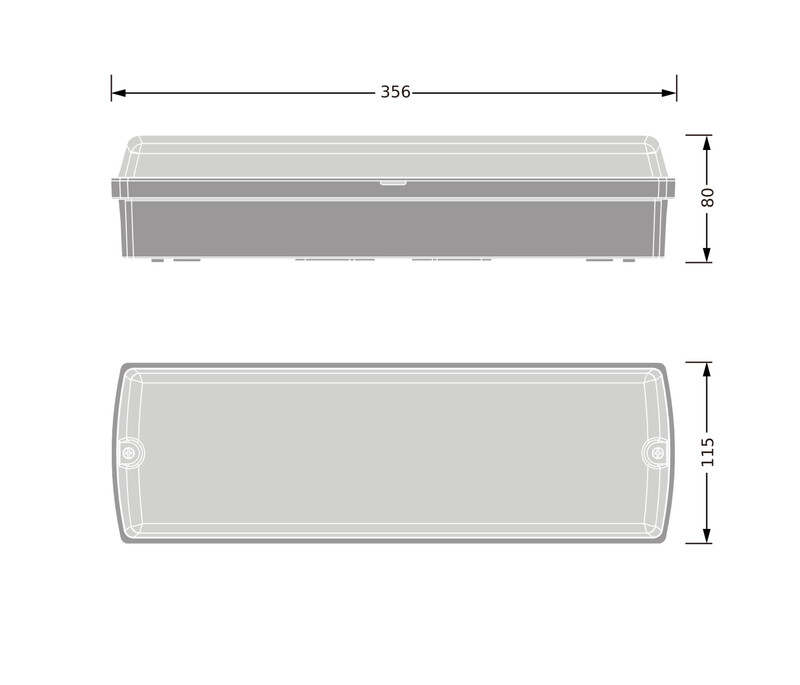

• Dimensions (Length/Width/Height): 356 x 115 x 80 mm
• Protection rating: IP65 and IK10
• Average service life: 50,000 hours (L70/B50 +25 C)
• Operating temperature: +5…+45
• 3-hour emergency lighting duration
• Emergency luminous flux: 300 lm
• Automatic emergency lighting system self-test
• Warranty: 5 years
Most common applications: Stairwells, entrance areas, technical rooms This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Housing materialPlastic
Housing colourWhite
Material coverPlastic, opal
Type of gridMatt
Product codes
SAPDJH861
STK4152044
PLC4152044
GTIN/EAN4099854290725
Manufacturer part number4099854290725
Vendor material number4152044
Basic information
Package measurements (L x W x H)88 x 123 x 368 mm
Package volume3.983 l
Package weight0.69 kg
Base uniteach
Package units1 / 6 / 36 / 180
Package contents–
UNSPSC39111544
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)8.97
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
