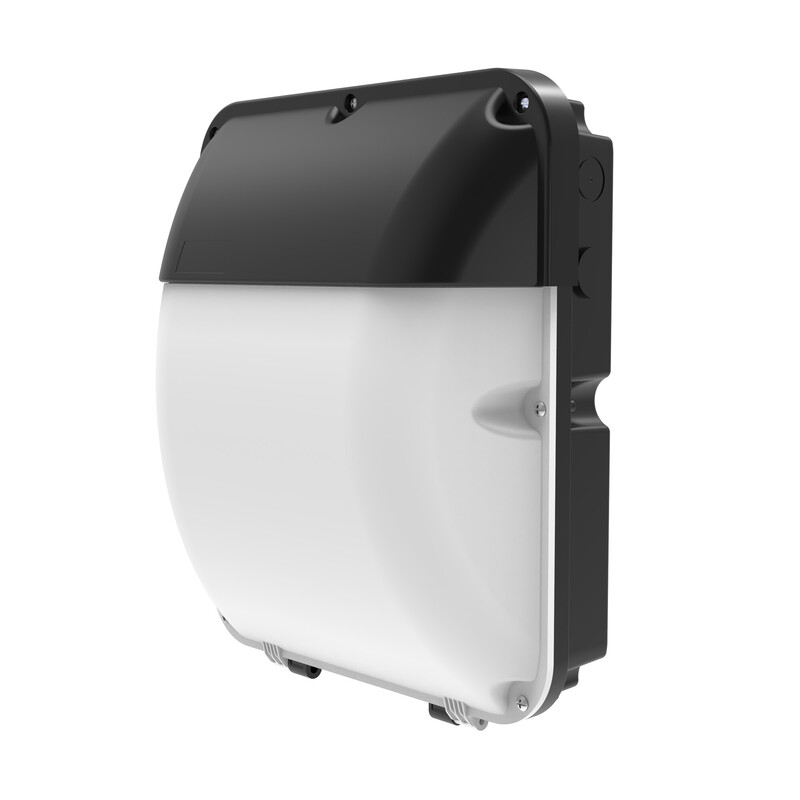

WALL LUMINAIRE URBAN WALL UB WALLPACK CBO 24W CCT ML
Product code
4544167
URBAN WALLPACK COMBO - find durable and cost-effective wall-mounted lights for outdoor use. Thanks to the Multi Colour feature, the light color temperature is easy to select during installation. With the Multi Lumen feature, you can choose the appropriate luminous flux for the target. The light offers comprehensive options for cable penetration.
Key technical specifications:
• Luminous flux: 1980 / 2640 lm
• Color temperature: 4000 / 6500 K, CRI 80
• Power: 18 / 24 W
• Luminous efficacy: 110 lm/W
• Beam angle: 110 D
• Dimmable: No

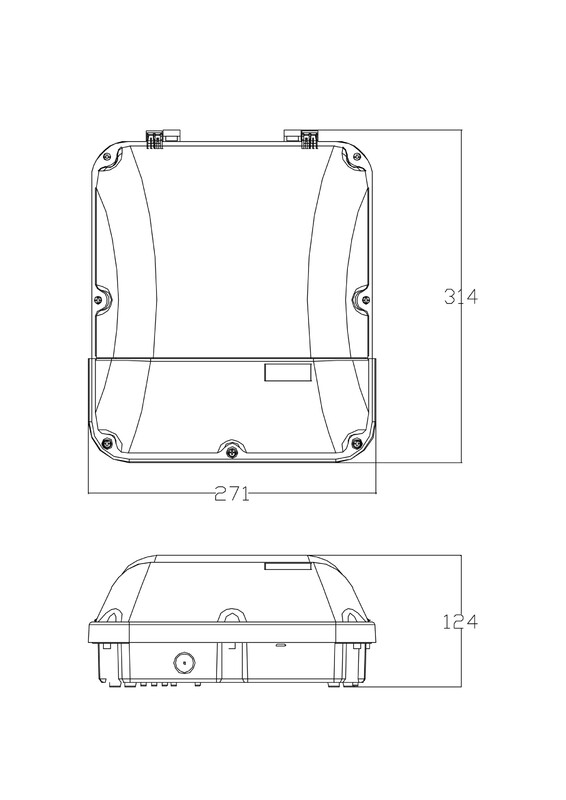

• Dimensions (Depth/Width/Height): 124 x 271 x 314 mm
• Weight: 1.00 kg
• Protection rating: IP65 and IK08
• Average service life: 60,000 hours (L70/B50 +25 C)
• Average service life: 50,000 hours (L80/B10 +25 C)
• Operating temperature: -20…+50 C
• Warranty: 3 years
• Certifications: CE, UKCA, EAC
Most common applications: Industrial and warehouse facade lighting This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
With mounting materialyes
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Housing materialPlastic
Housing colourBlack
Material coverPlastic, opal
Product codes
SAPDNF697
STK4544167
PLC4544167
GTIN/EAN4099854668074
Manufacturer part number4099854668074
Vendor material number4544167
Basic information
Package measurements (L x W x H)292 x 136 x 326 mm
Package volume12.946 l
Package weight1.12 kg
Base uniteach
Package units1 / 5 / 10 / 30
Package contents–
UNSPSC39111605
BrandLEDVANCE
VendorLEDVANCE OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Manufacturer
NameLEDVANCE GmbH
Websitewww.ledvance.com/contact
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
