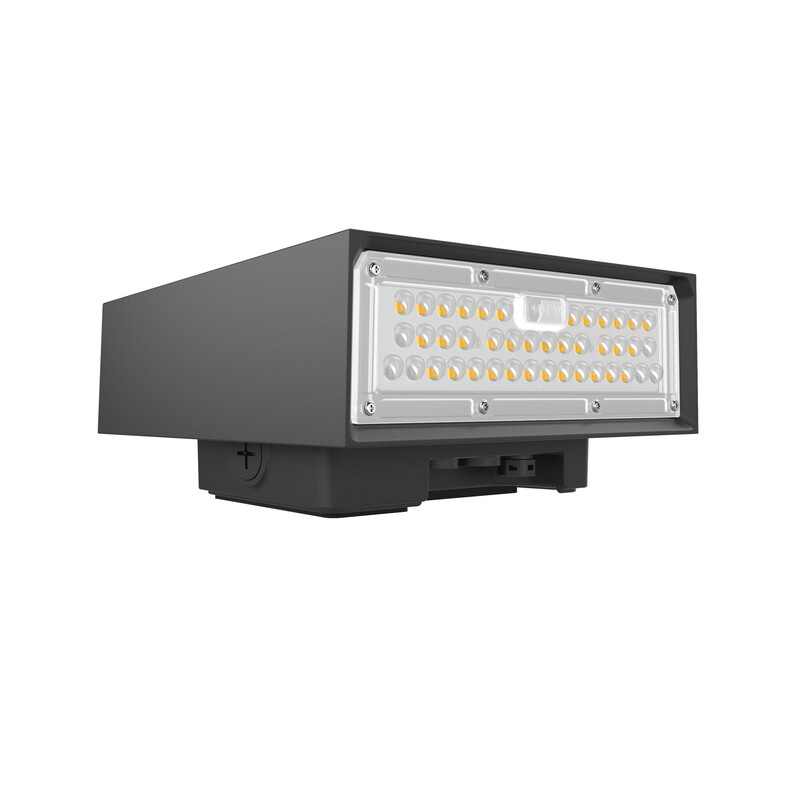

WALL LUMINAIRE URBAN WALLPACK 40W 830 ML GY

Product code
4544153

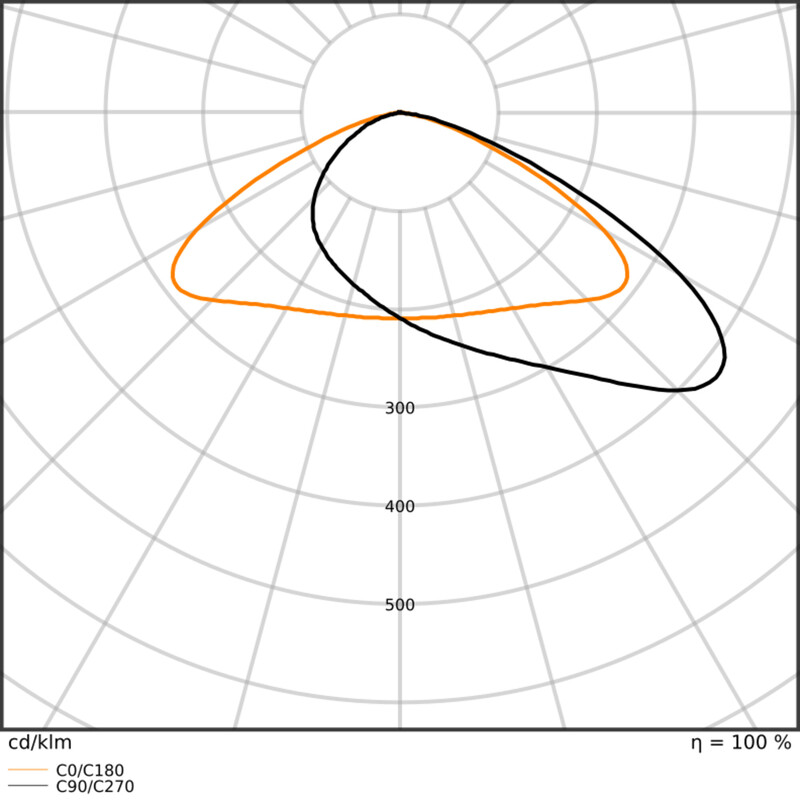

URBAN WALLPACK product line offers durable and extremely long-lasting wall lights for outdoor use. With the Multi Lumen feature, you can select the appropriate light flux for your target. The light fixture can be easily wired from any direction. The asymmetric light distribution evenly illuminates the area near the luminaire. Recommended mounting height: 3–6 meters. Key technical specifications: • Light flux: 2620 / 3225 / 3720 / 4284 / 4600 lm • Color temperature: 3000 K, CRI 80 • Power: 20 / 25 / 30 / 36 / 40 W • Luminous efficacy: 115–131 lm/W • Beam angle: 55x135 D • Dimmable: No • Dimensions (Depth/Width/Height): 96 x 200 x 180 mm • Weight: 1.5 kg • Protection rating: IP66 and IK08 • Average service life: 100,000 hours (L70/B50 +25 C) • Average service life: 100,000 hours (L80/B10 +25 C) • Operating temperature: -30…+45 C • Warranty: 5 years • Certifications: CE, UKCA, EAC Most common applications: Exterior lighting for warehouses, schools, and commercial buildings This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingyes
Suitable for suspended mountingno
Suitable for ceiling mountingno
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for clamp-mountingno
With mounting materialyes
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources0
Housing materialAluminium
Surface protection housingPowder coating
Housing colourGrey

Product codes

SAPDMT253
STK4544153
PLC4544153
GTIN/EAN4099854592867
Manufacturer part number4099854592867
Vendor material number4544153

Basic information

Package measurements (L x W x H)257 x 257 x 139 mm
Package volume9.181 l
Package weight1.93 kg
Base uniteach
Package units1 / 12 / 84
Package contents
UNSPSC39111605
BrandLEDVANCE
VendorLEDVANCE OY

Environment and safety

Manufacturer

NameLEDVANCE GmbH
Postal addressParkring 1-5, 85748, Garching near Munich, Germany
