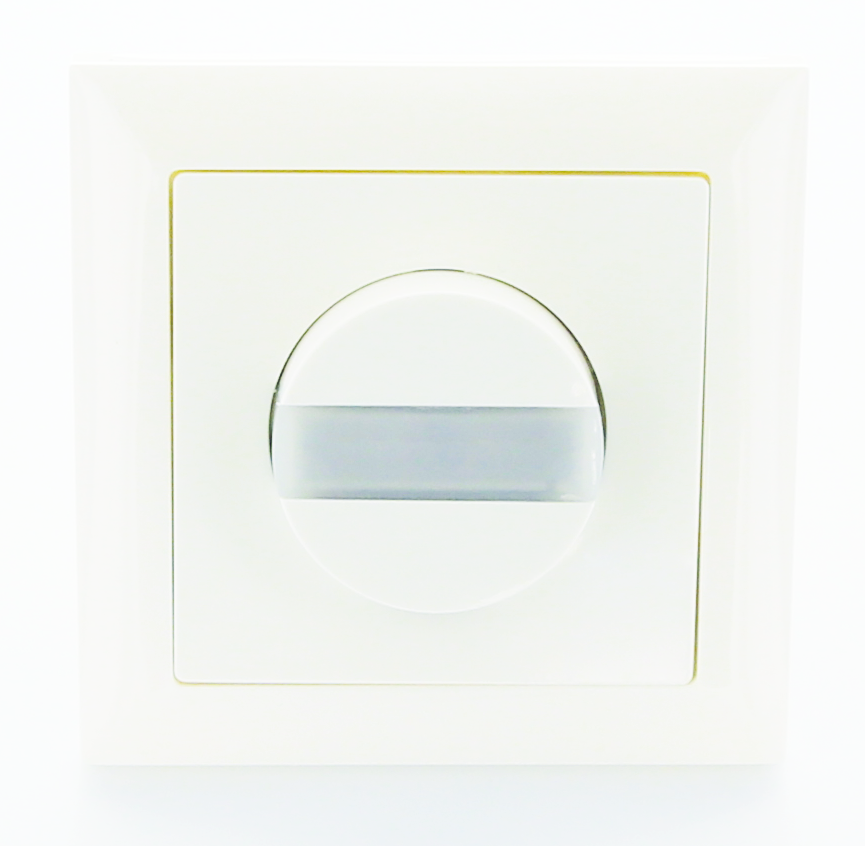

MOTION DETECTOR INDOOR 140-L 140 2300W IP20

Product code
2603206
Comfort Switch
  • Wall-mounted motion sensor with dimmer, push button, and integrated LED light.
  • One switching channel for controlling lighting.
  • Integrated downward-facing LED light that functions as guidance and night light.
  • Main lighting and integrated LED light can be programmed independently into automatic or semi-automatic mode.
  • Four operating modes: automatic, semi-automatic, automatic corridor, slave.
  • Monitoring area expansion by connecting up to 5 Indoor 140-L sensors (Master/Slave function configurable from the sensor).
  • Decorative covers available to match the interior design.
  • Settings adjustable via sensor potentiometers and DIP switches.
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelPresence detector
Constant light controlno
HVAC-controlno
Forced switch offyes
Creep-under protectionyes
Optimum mounting height1 m
Max. reach sideways8 m
Max. reach frontally3 m
Diameter reach on floor2 m
Remote operationno
With remote controlno
Response value luminosity adjustableyes
Mounting methodFlush-mounted
MaterialPlastic
Material qualityOther

Product codes

SAPASX261
STK2603206
PLC2603206
GTIN/EAN4007529943258
Manufacturer part number94325
Vendor material number2603206

Basic information

Package measurements (L x W x H)62 x 88 x 88 mm
Package volume0.48 l
Package weight0.2 kg
Base uniteach
Package units1
Package contents
UNSPSC46171608
BrandLUXOMAT
VendorNYLUND-GROUP OY AB

Environment and safety

Sustainability categories

Features

emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Twilight sensorYes
