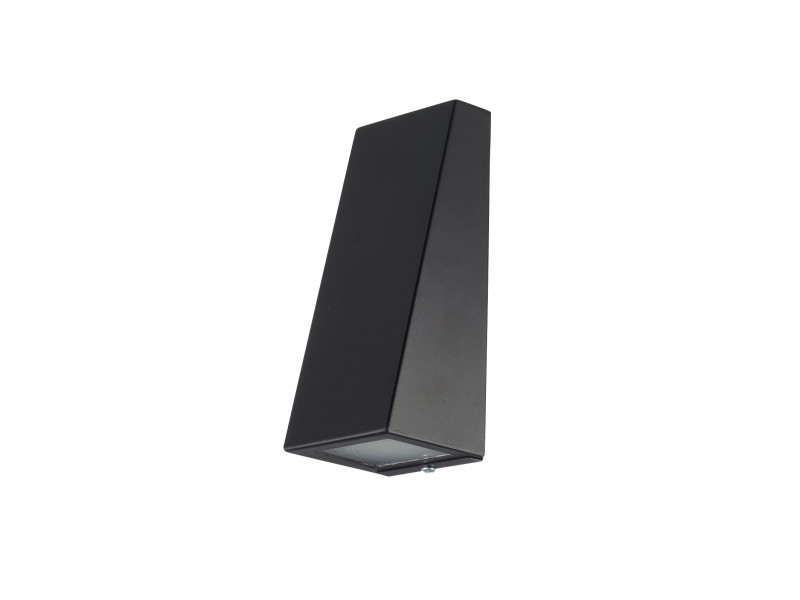

OUTDOORS WALL LUMINARE AADA 1X7W LED 200X80 MM IP54 3K BK

Aada LED

• LED wall/column light
• Electro-galvanized powder-coated steel frame.
• Opal acrylic glare shield.
• Manufactured in Finland.
• Elegant LED wall/column light manufactured in Finland.

Applications

• Public spaces, residential areas
• Indoor and outdoor environments Structure

Frame

• Electro-galvanized powder-coated steel

Glare Shield

• Opal acrylic

Installation

• On wall surface or column
• To junction box, mounting interval 78 mm (Model AADA L)
• Available for installation: rubber gasket (TIIVI-1)
• Connection -o- 3 x 2.5 mm², push-in connector
• Number of connections per circuit breaker: - B10A: max. 51 pcs - B16A: max. 84 pcs - C16A: max. 142 pcs

Features

• Standard colors: - white RAL9010 - graphite gray RAL7024 - black RAL9005
• Light source LED module - Osram LED (AADA L), Citizen LED (AADA K) - color temperature 3000K or 4000K
• CRI > 80
• Lifespan 50,000 h
• MacAdam SDCM <= 3
• LED module is replaceable
• Reported lumen values are those of the light source.
• Warranty 5 years, frame 10 years
• STUL warranty

Available on Order

• In all RAL colors
• AADA-K also available in 2700 K or 5000 K color temperatures
• Type designation X = color code: V=white, M=black, H=graphite gray

This product description is an automated translation of the original Finnish description.
