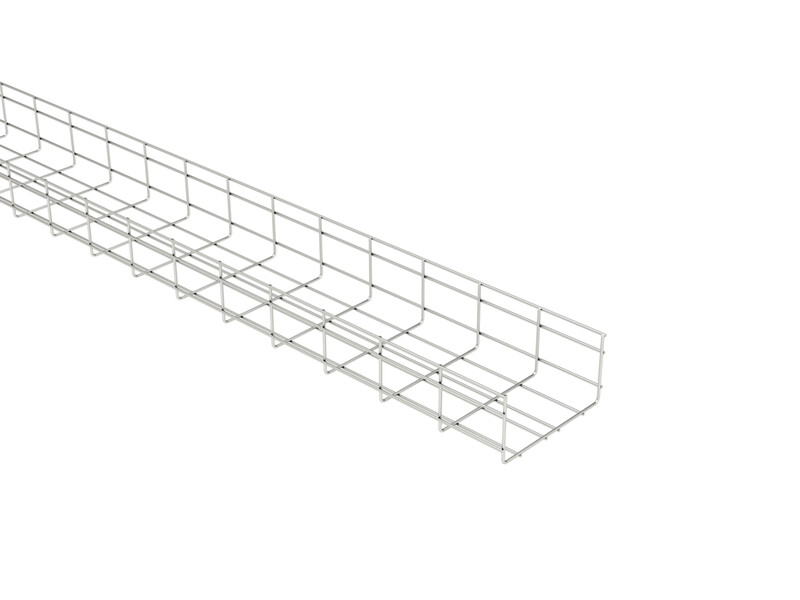

WIRE MESH CABLE TRAY MEKA WMT-100-200 L 3000 XPG
Product code
1448646
The edge height of the wire shelf is 100 mm. Thanks to various material and surface treatment options, WMT wire shelves are suitable for applications ranging from offices to chemical industries. The product is fire-resistant when installed according to Mekan installation instructions. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mesh cable tray (EC000853)
Profile shapeU-shape
Width200 mm
Height100 mm
Length3000 mm
Working length3000 mm
Diameter longitudinal wire4 mm
Diameter transverse wire4 mm
Usable cross section17664 mm²
Integrated partitionNone
ModelWithout connector
Suitable for circuit integrityyes
MaterialSteel
Material qualityOther
Surface protectionHot-dip galvanised
ColourOther
Product codes
SAPDKX412
STK1448646
PLC1448646
GTIN/EAN6438377147877
Manufacturer part number1448646
Vendor material number1448646
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume20.6 l
Package weight1.377 kg
Base unitMeter
Package units3 / 120
Package contents–
UNSPSC39131704
BrandMEKA
VendorMEKA PRO OY
The country of origin stated by the supplierFinland
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.7454
GWP, unitMeter
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
