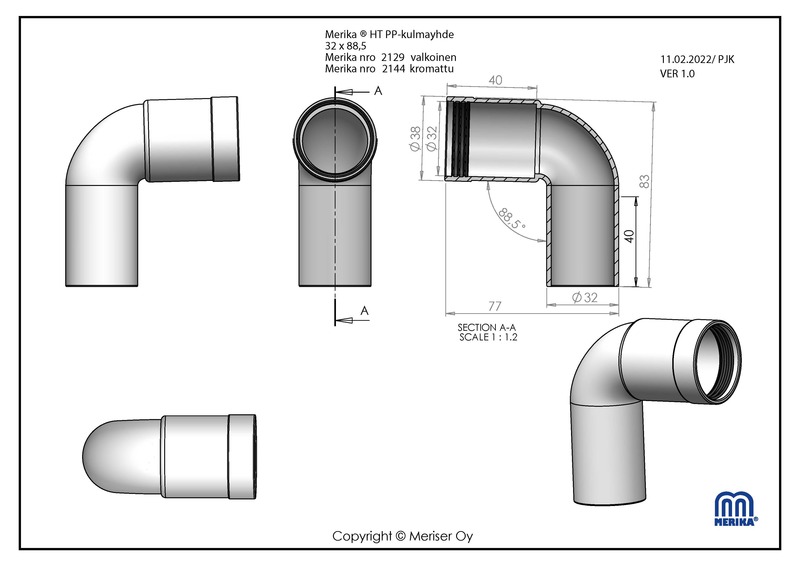

HT ANGLE CHROME 32X88 MERIKA 2144
Product code
2449841
The corner material is chromated polypropylene. The product has been awarded the Nordic Poly Mark quality label.
Meriser is known for its continuous product development and high-quality Merika products. Product development is carried out continuously in collaboration with VTT, which tests and monitors the quality and functionality of the products.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polypropylene (PP)
Surface protection connection 1Chromium-plated
Material connection 2Polypropylene (PP)
Surface protection connection 2Chromium-plated
ShapeElbow (fitting)
Bend angle88.5 °
Reducingno
Eccentricno
Nominal diameter connection 11 1/4 inch (32)
Outer pipe diameter connection 132 mm
Connection 1Slide sleeve
Nominal diameter connection 21 1/4 inch (32)
Outer pipe diameter connection 232 mm
Connection 2Slide end
Main colour fittingOther
Product codes
SAPADJ533
HPAC2449841
PLC2449841
GTIN/EAN6415824498416
Manufacturer part number2144
Vendor material number2144
Basic information
Package measurements (L x W x H)75 x 75 x 38 mm
Package volume0.214 l
Package weight0.024 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC40172501
BrandMERIKA
VendorMERISER OY
The country of origin stated by the supplierFinland
