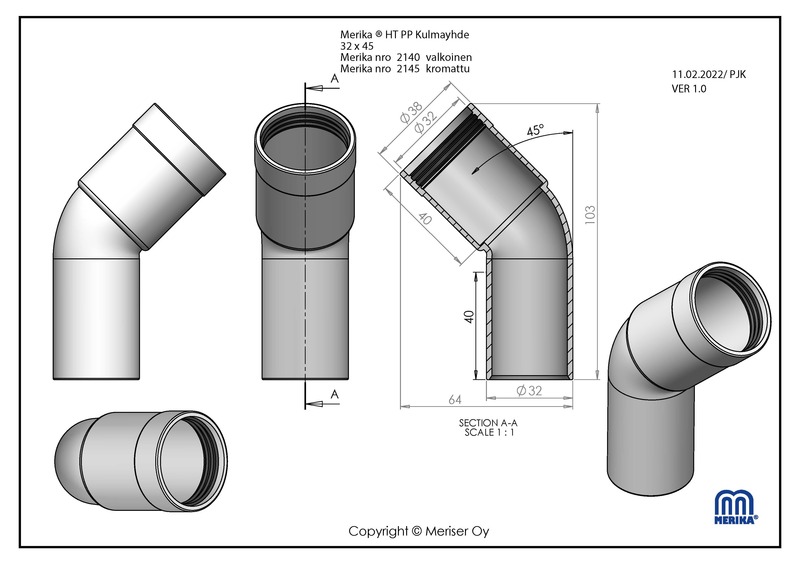

HT BEND CHROME 32X45 MERIKA 2145
Product code
2449821
The corner material is chromated polypropylene. The product has been awarded the Nordic Poly Mark quality label.
Meriser is known for its continuous product development and high-quality Merika products. Product development is carried out continuously in collaboration with VTT, which tests and monitors the quality and functionality of the products.
This product description is an automated translation of the original Finnish description.Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Polypropylene (PP)
Surface protection connection 1Chromium-plated
Material connection 2Polypropylene (PP)
Surface protection connection 2Chromium-plated
ShapeElbow (fitting)
Bend angle45 °
Reducingno
Eccentricno
Nominal diameter connection 11 1/4 inch (32)
Outer pipe diameter connection 132 mm
Connection 1Slide sleeve
Nominal diameter connection 21 1/4 inch (32)
Outer pipe diameter connection 232 mm
Connection 2Slide end
Main colour fittingOther
Product codes
SAPADJ532
HPAC2449821
PLC2449821
GTIN/EAN6415824498218
Manufacturer part number2145
Vendor material number2145
Basic information
Package measurements (L x W x H)110 x 50 x 43 mm
Package volume0.237 l
Package weight0.024 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC40172501
BrandMERIKA
VendorMERISER OY
The country of origin stated by the supplierFinland
Documents (9)
Certificates
Brochures & documents
Links
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
