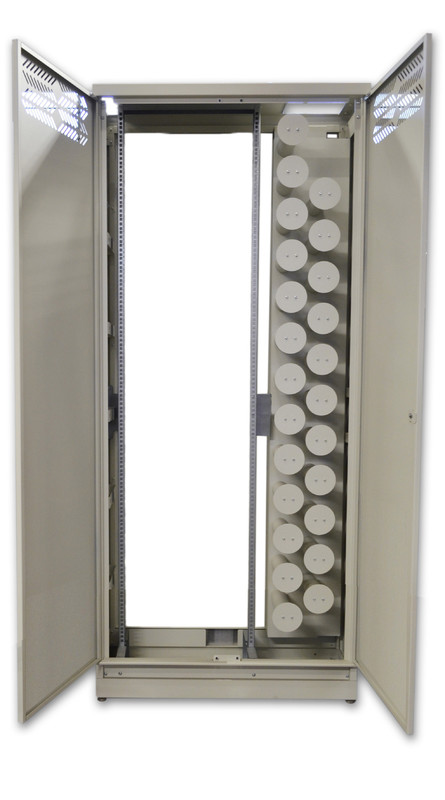

CABINET 19 ODF 900X300X2000MM RK
Product code
7268603
NAF19 is a 19-inch mechanical cabinet designed for patching, 900 mm wide and 300 mm deep. It is available in both 2000 mm and 2200 mm heights. The cabinet design takes into account controlled cable management. The cabinet structure is very simple with no moving parts. The capacity of the 2000 mm cabinet is 40 U, and the 2200 mm cabinet is 44 U, allowing 1920 SC connectors in the smaller cabinet and 2112 in the larger one. The number of LC connectors that fit is double that of SC connectors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Telecommunications cabinet (EC002501)
Mounting levelFront side
Number of doors2
Type of ventilationPassive
Width900 mm
Height2000 mm
Depth300 mm
With roof plateyes
With front dooryes
With rear doorno
With sidewallno
With baseno
Demountableyes
Scope of applicationInside
Compliant with ETSIno
MaterialSteel
Product codes
SAPDJC151
STK7268603
PLC7268603
GTIN/EAN6410072686035
Manufacturer part number7268603
Vendor material number7268603
Basic information
Package measurements (L x W x H)300 x 900 x 2000 mm
Package volume540 l
Package weight93 kg
Base uniteach
Package units1
Package contents–
UNSPSC30161801
BrandNAFICON
VendorNAFICON LIITIN OY
The country of origin stated by the supplierFinland
