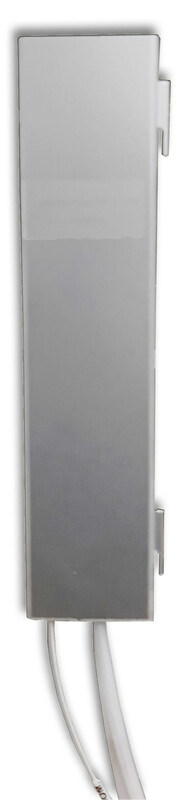

DISTRIBUTION BLOCK SPLITTER 1/16
Product code
7269316
PLC splitter installed in the extension tray with a 1:16 splitting ratio. Fibers are tubing, Com in its own tube and the other fibers 8 per tube. The enclosure has hooks suitable for the extension tray. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Planar Lightwave Circuit (PLC) splitter (EC003870)
Type1x16
Operating wavelength1260-1650 nm
Mounting methodSplice cassette
Connector type inputOpen end
Connector type outputOpen end
Max. insertion loss13.9 dB
Min. return loss55 dB
Max. uniformity loss1.3 dB
Max. polarisation dependent loss (PDL)0.4 dB
Min. directivity55 dB
Operating temperature-40-70 °C
Fibre length input3000 mm
Fibre length output3000 mm
Height4 mm
Width12 mm
Product codes
SAPDCR610
STK7269316
PLC7269316
GTIN/EAN6410072693163
Manufacturer part number7269316
Vendor material number7269316
Basic information
Package measurements (L x W x H)290 x 370 x 95 mm
Package volume10.194 l
Package weight1 kg
Base uniteach
Package units1
Package contents–
UNSPSC43223207
BrandNAFICON
VendorNAFICON LIITIN OY
The country of origin stated by the supplierFinland
