DISTRIBUTION BOX NAF UNIVERSAL 192 3XOVAL

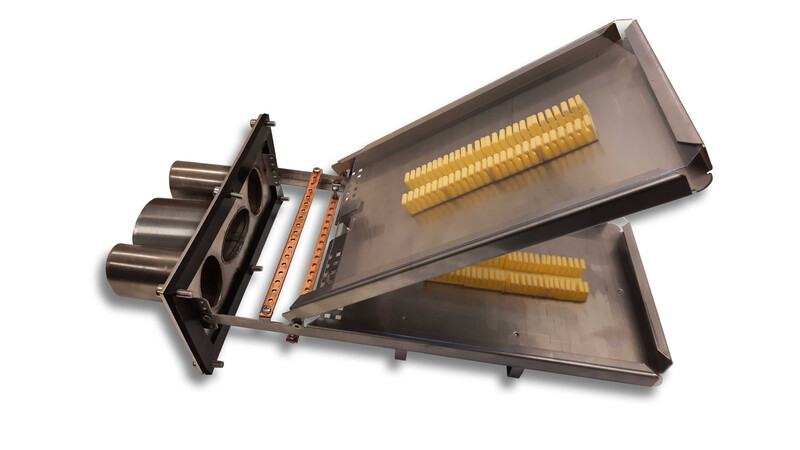

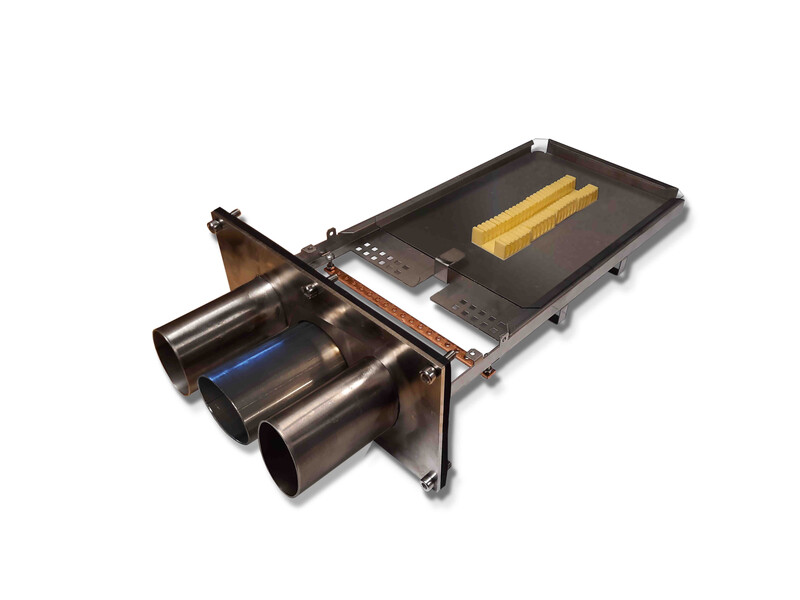

The enclosure is a so-called splice box consisting of a lower section with splice trays and a protective cover. Features

• 192 fiber splicing. Includes two 96-fiber splice trays, with the upper tray hinged.
• Suitable for various cable structures and can be used in cable side entries.
• Also suitable as a ground-level splice for microduct networks.
• Dimensions with cable penetration: 498 x 235 x 125 mm.
• Three oval penetrations in the lower section's flange for mechanical cable entries or conduits.
• Material: stainless steel.
• Sealing: IP 68.
• Designed and manufactured in Finland.

Accessories

• 2 pieces of heat shrink sleeves (56/16 - 200 mm)
• 2 pieces of branch wedge
• 2 pieces of end cap
• 2 pieces of splice tray with 4 pieces of 24-position KJS holders permanently mounted
• 1 piece of standalone 24-position KJS holder
• 8 pieces of grounding connector
• 1 piece of grounding connector M6-16 mm²
• 16 pieces of mounting screw M4x12
• 24 pieces of tie strap 2x100 mm
• 3 pieces of overflow ducts with connectors
• 3 pieces of corrugated cable clamps
• 1 piece of cleaning cloth
• 1 piece of silica gel packet 25 g

This product description is an automated translation of the original Finnish description.
