POLE MOUNT. LUMINAIRE IP66 3200LM 40W 3CCT IK09
Product code
4548175
Onnpark Town is a modernly designed and versatile pole lamp suitable for multiple applications. The lamp can be used for lighting parks, squares, courtyards, and other public outdoor areas.

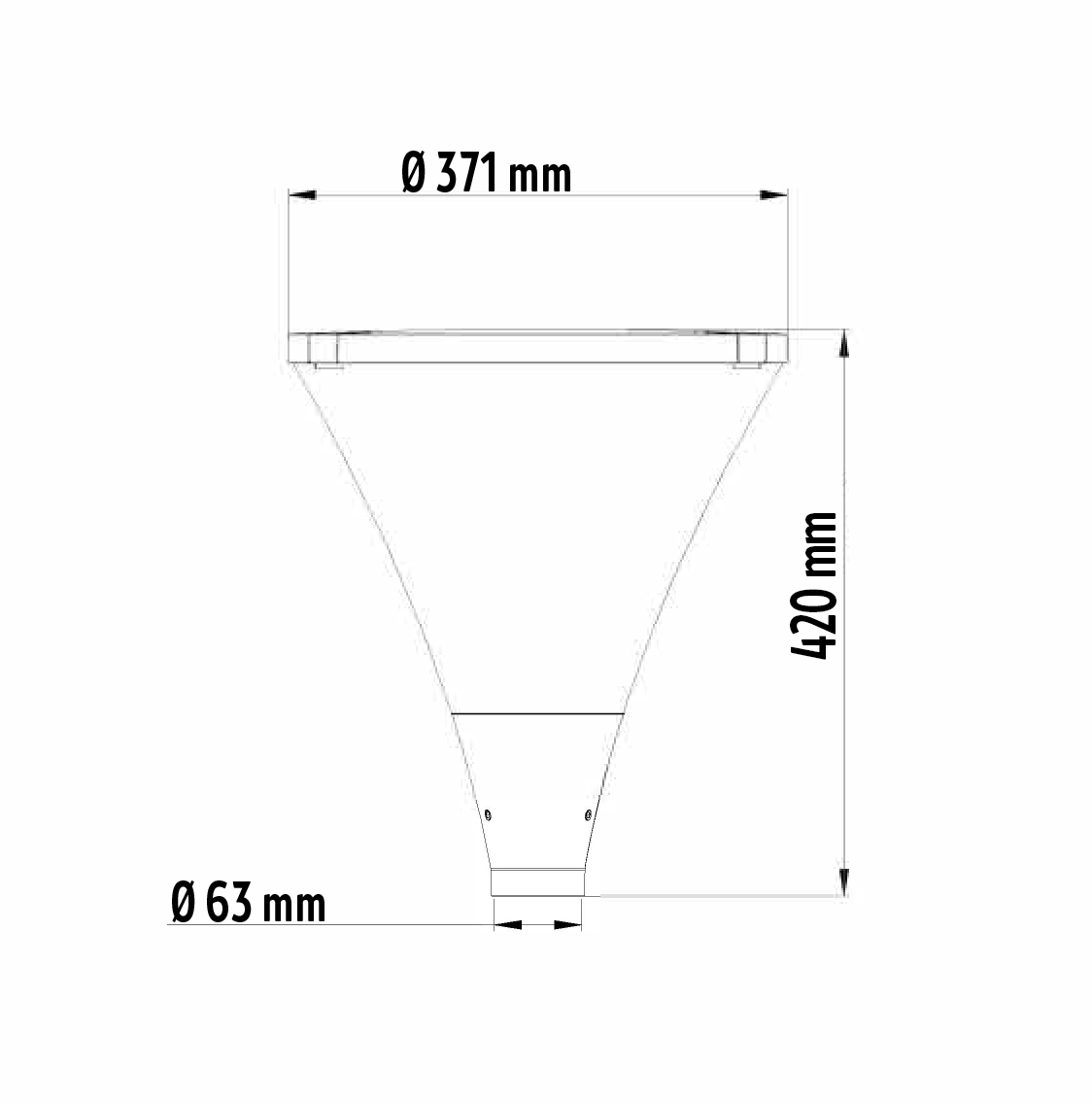

The lamp’s color temperature and power can be selected using DIP switches. The housing is made of powder-coated black aluminum (RAL 9017) and a polycarbonate lens. The lamp is equipped with a 6-meter rubber cable 3 x 1.5 mm² and is mounted directly onto a 60 mm pole.
Operating temperature range: -30°C to +50°C. IP66 and IK09. The lighting can be supplemented with another lamp from the same series. Onnpark lamps come with a 5-year product warranty. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Luminaire for streets and places (EC000062)
Mounting methodPost top
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Lamp holderOther
Housing materialAluminium
Surface protectionPowder coating
Housing colourBlack
Material coverPlastic, transparent
Voltage typeAC
Nominal voltage100-240 V
Nominal current174-400 mA
With control gearyes
Type of control gearLED operating device current-controlled
Exchangeable control gearyes
Product codes
SAPCZL543
STK4548175
PLC4548175
GTIN/EAN6438056312558
Basic information
Package measurements (L x W x H)455 x 455 x 540 mm
Package volume111.794 l
Package weight6.9 kg
Base uniteach
Package units1 / 8
Package contents–
UNSPSC39111605
BrandONNLINE
VendorONNINEN OY
Documents (15)
Images
Brochures & documents
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)138.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001044
