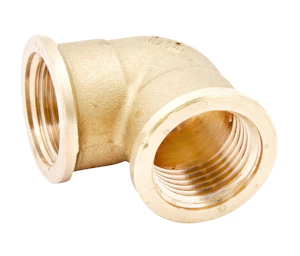

ELBOW 90 F/F DZR 1
Product code
1570106
Lead-free, special brass pipe fittings, caps, and installation accessories for the installation of cold and hot water systems in buildings and various industrial applications. The primary intended use of the products is water systems, and they are suitable for drinking water use. Pipe fittings can also be used in systems other than water systems, such as glycol, fuel oil, gasoline, etc. However, the suitability of the product must always be verified when substances other than water or non-standard installation locations are involved. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fitting with 2 connections (EC003024)
Material connection 1Brass
Material quality connection 1Dezincification resistant brass (DZR)
Material connection 2Brass
Material quality connection 2Dezincification resistant brass (DZR)
ShapeBend
Bend angle90 °
Nominal diameter connection 11 inch (25)
Outer pipe diameter connection 133.2 mm
Nominal diameter connection 21 inch (25)
Outer pipe diameter connection 233.2 mm
Max. operating pressure at 20 °C16 bar
With sealing rings/gasketsno
Cappedno
With drain valveno
With de-aeratorno
Product codes
SAPAAD925
HPAC1570106
PLC1570106
GTIN/EAN6415895043935
Manufacturer part number15080252500
Vendor material number1570106
Basic information
Package measurements (L x W x H)69 x 41 x 41 mm
Package volume0.116 l
Package weight0.194 kg
Base uniteach
Package units1 / 80
Package contents–
UNSPSC40172801
BrandONNLINE
VendorONNINEN OY
The country of origin stated by the supplierFinland
Documents (4)
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.6936
GWP, uniteach
Source for GWP dataEPD
