BATH AND SHOWER MIXER ORAS 7149 OPTIMA

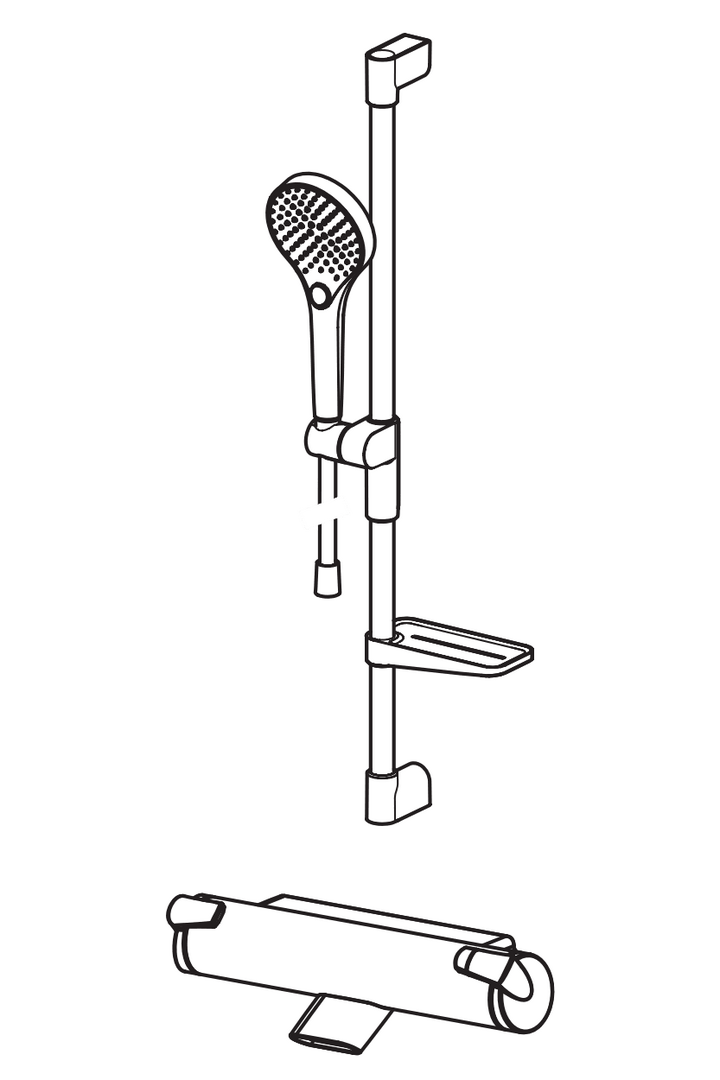

Oras Optima 7149 is a set consisting of a thermostatic bath and shower faucet in shiny chrome finish (Oras 7140; LVI 6318030) and a shower set (Oras 2790N; LVI 6510310).

The Oras Optima 7149 shower faucet features a fixed spout and Easy Grip handles. The handles make it easy to adjust water flow and temperature. The temperature control has a safety button at 38 °C. The faucet also features an EcoFlow flow regulator.

The Oras Optima Style shower set includes a hand shower with three different spray options available (normal, massage, and rain), a shower arm up to 720 mm in length, an adjustable hand shower holder, a soap dish, and a 1750 mm long shower hose that rotates from its connector to prevent twisting. Thanks to silicone nozzles, the hand shower is easy to keep clean.

The Oras Optima 7149 bath and shower faucet has single-way valves and dirt filters. The faucet is type-approved in Finland.

Features:

• valve type: rotating valve, integrated flow control handle
• lever/handle type: temperature control handle, flow control handle, Easy Grip, safety function
• mechanical parts: thermostatic control unit, single-way valves, dirt filters
• shower functions: 3 shower functions
• shower components: hand shower, shower arm, adjustable shower holder, soap dish, shower holder, shower hose (1750 mm), EcoFlow function
• spout type: fixed spout
• color: chrome
• temperature control: safety button at 38 °C
• EcoFlow at 300 kPa: 0.16 l/s
• flow at 300 kPa: 0.3 / 0.23 l/s
• pressure loss at flow (0.2 l/s): 230 kPa
• pressure loss at flow (0.3 l/s): 300 kPa
• backflow prevention (EN1717): EB
• connection size: G1/2
• hot water: max. +80 °C

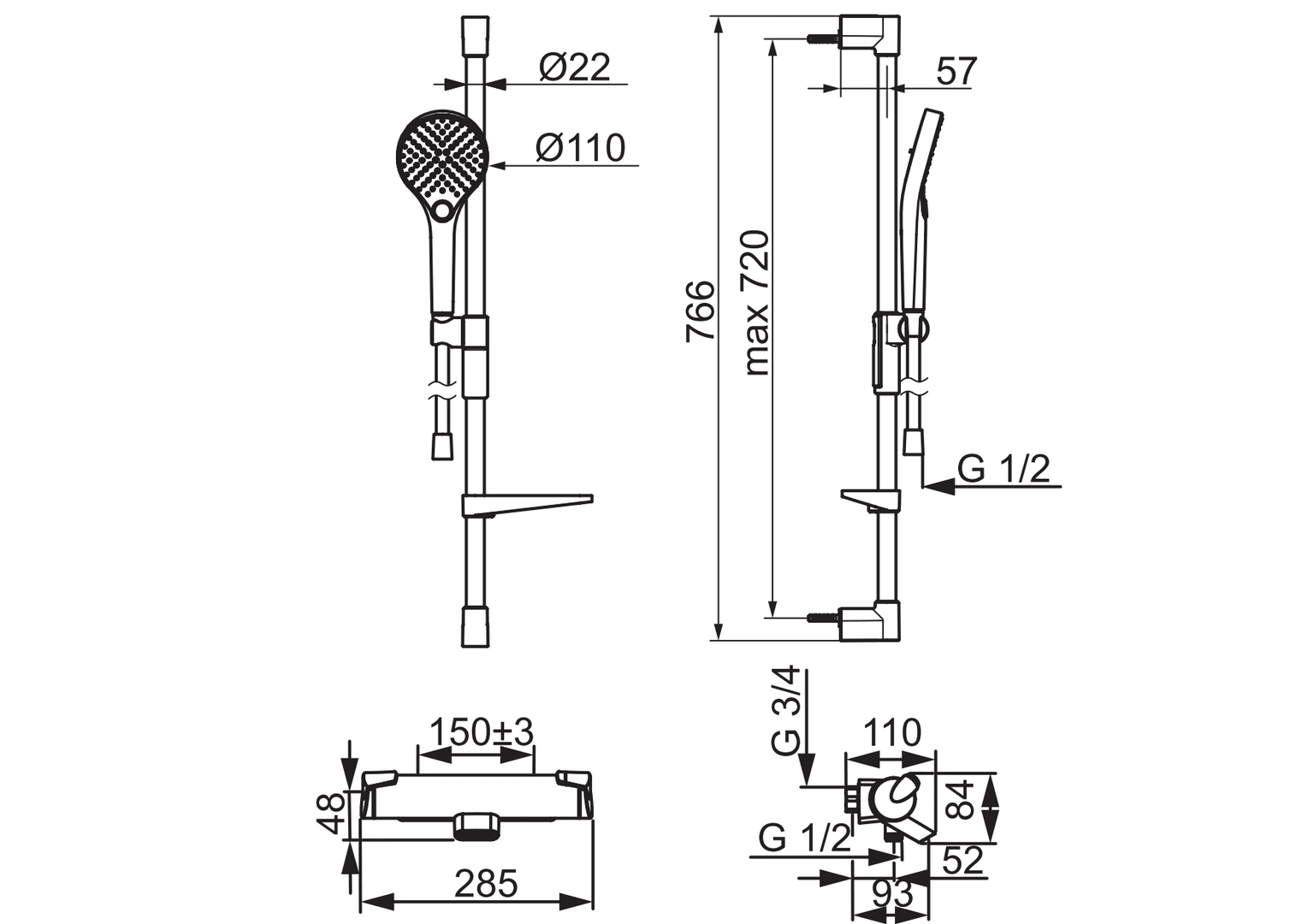

• installation width: 150 ± 3 mm
• material: brass/plastic
• projection: 93 mm
• operating pressure: 100 - 1000 kPa
• EN standard: EN 1111, EN 1112, EN 1113
• sound class: I (ISO 3822)
• STF certificate: EUFI29-20002662-TH4

Maintenance:

Comprehensive spare parts are available for Oras faucets, allowing you to further extend the lifespan of this high-quality product.

The following spare parts are available for the Oras Optima 7149 thermostatic bath and shower faucet and shower set:

Bath and shower faucet:

?

• flow control handle: LVI 6420321
• valve / control unit: LVI: 6510096
• dirt filters G1/2, DN15: LVI 6422063
• sealing washer G3/4, DN20: LVI 6422179
• temperature control handle: LVI 6420324
• O-ring set: LVI 6421003
• thermostatic control unit: LVI 6421004
• nozzle: LVI 6420376

Shower set:

• wall bracket (chrome): LVI 6510327</ This product description is an automated translation of the original Finnish description.
