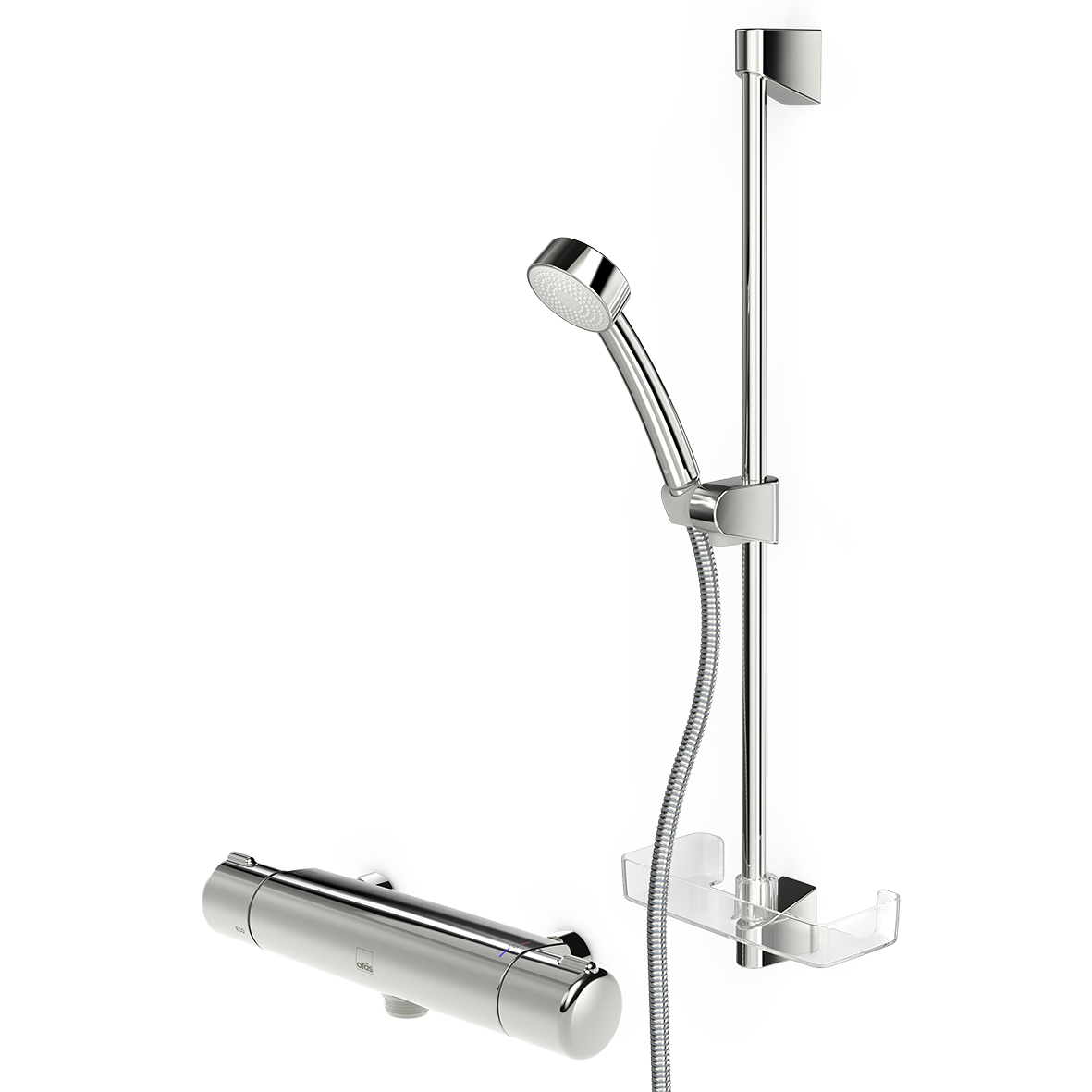

SHOWER MIXER ORAS 7495 NOVA THERMOSTAT

Oras Nova 7495 is a thermostatic shower valve with a temperature-limiting knob that can be bypassed by pressing a button. The valve features an EcoFlow flow regulator, vacuum valve, strainers, and check valves. Product includes:

• body 7461, LVI code 6310811
• vacuum valve 261033, LVI code 6513730
• Apollo shower set 520, LVI code 6510076

Features

• connection type: direct connection to connectors, internal thread
• lever/knob type: temperature control knob, flow control knob
• mechanical components: ceramic flow control valve, thermostatic control unit, check valves, strainers, suction protected
• shower components: hand shower, shower arm, adjustable shower holder, soap dish, shower hose (1500 mm), Eco-flow function
• color: chrome
• temperature settings: safety button at 38 °C, temperature setting lock possible
• Eco-flow rate at 300 kPa: 0.2 l/s
• flow rate at 300 kPa: 0.28 l/s
• pressure loss at flow rate (0.2 l/s): 155 kPa
• connection size: G1/2
• hot water: max. +80 °C
• installation width: CC150 ± 3 mm
• material: brass
• operating pressure: 100 - 1000 kPa
• noise class: I (ISO 3822) Oras lab.

Replacement parts for the shower valve

• flow control knob: LVI 6420571
• operating valve: LVI 6421506
• strainers, G1/2, DN15: LVI 6422063
• seal ring, G3/4, DN20: LVI 6422179
• temperature control knob: LVI 6420572
• O-ring set: LVI 6421003
• thermostatic control unit: LVI 6421004

Replacement parts for the shower arm

• shower arm slider: LVI 6510089
• shower arm slider: LVI 6510090
• wall bracket: LVI 6510092
• wall bracket: LVI 6510091
• shower hose, L=1500: LVI 6515008
• hand shower: LVI 6510080

This product description is an automated translation of the original Finnish description.
