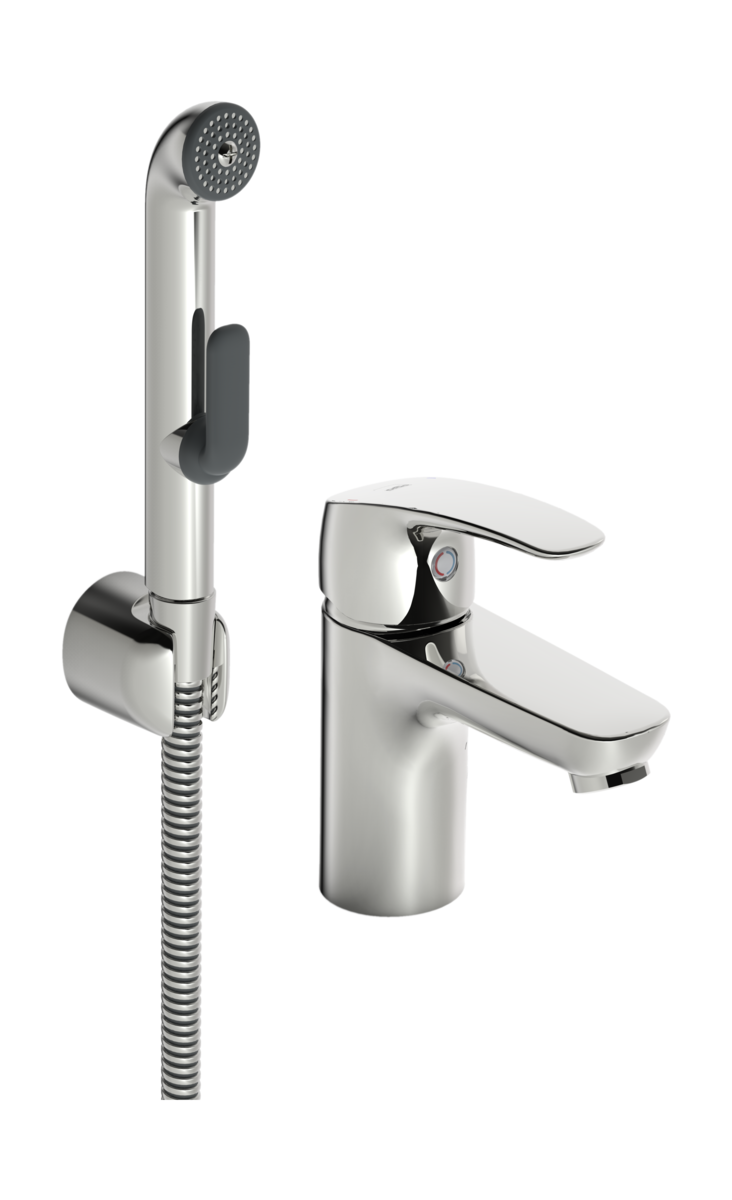

WASHBASIN MIXER ORAS 1012F-102 SAFIRA ECO BIDE

Oras Safira ECO 1012F-102 washbasin faucet features a Bidetta hand shower, bracket, 1.75 m shower hose, aerator, and fixed spout. The flow restrictor (1.7 l/min) enables low water consumption. The faucet meets the efficiency requirements for water use set by ECO Building and has flexible supply hoses.

Features

• aerator type: aerator includes flow restrictor
• connection type: flexible supply hoses
• extensions: chain holder without chain
• hand shower type: Bidetta hand shower
• lever/handle type: single operating lever/handle, hot/cold symbols
• mechanical parts: ř 40 mm control unit
• shower components: shower holder, shower hose (1750 mm)
• special features: 3S-Installation mounting system
• color: chrome
• temperature controls: temperature and flow rate limitation capability
• flow rate at 300 kPa (with flow restrictor): 0.028 l/s
• backflow prevention (EN1717): HC
• connection size: G3/8
• hot water: max. +70 °C
• material: brass
• projection: 107 mm
• operating pressure: 50 - 1000 kPa
• noise class: I (ISO 3822) Oras lab.
• KIWA SE: 1490

Replacement parts for washbasin faucet

• operating lever: LVI 6420625
• protective cap: LVI 6420635
• locking nut: LVI 6420331
• control unit, Green building: LVI 6420733
• control unit: LVI 6420301
• mounting screw, M8x1, L=130: LVI 6420637
• mounting kit: LVI 6420634
• aerator, M24x1, -105: LVI 6510075
• aerator, M24x1, -104: LVI 6420700
• aerator, M24x1 STD HC A: LVI 6421630
• base seal: LVI 6420646
• nut: LVI 6420241
• holder: LVI 6420746
• plug: LVI 6420141

Replacement parts for Bidetta hand shower

• sealing washer (10 pcs): LVI: 6421445
• screen with O-rings: LVI 6421446

This product description is an automated translation of the original Finnish description.
