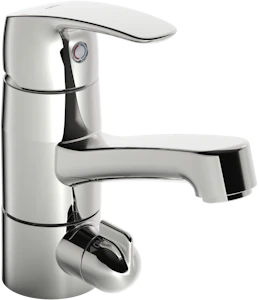

WASHBASIN MIXER ORAS 1013F SAFIRA DWC

Oras Safira 1013F -washbasin faucet features a washing machine valve, aerator, flexible connection hoses, and a swivel spout with 120° rotation (can be restricted to 40° - 80°).

Features

• airator type: fixed aerator
• connection type: flexible connection hoses
• lever/handle type: single operating lever/handle with hot/cold symbols
• mechanical parts: ř 40 mm control unit
• spout type: swivel spout with rotation angle restriction capability, profile structure
• color: chrome
• temperature controls: temperature and flow rate restriction capability
• flow rate at 300 kPa: 0.19 l/s
• pressure loss at flow rate (0.2 l/s): 90 kPa
• connection size: G3/8
• warm water: max. +70 °C
• material: brass
• projection: 133 mm
• operating pressure: 50 - 1000 kPa
• noise class: I (ISO 3822)

Replacement Parts

• operating lever: LVI 6420625
• protective cap: LVI 6420632
• locking nut: LVI 6420331
• control unit: LVI 6420301
• spout, L=132: LVI 6510237
• spout restrictor, 40°-80°: LVI 6420574
• spout restrictor, 120°: LVI 6420642
• mounting screw, M8x1, L=130: LVI 6420637
• mounting kit: LVI 6420634
• aerator, M24x1 STD HC A: LVI 6421630
• bearing ring: LVI 6420620
• X-sealing pack: LVI 6420263
• bearing ring: LVI 6420348
• operating valve, G1/2: LVI 6420600
• washing machine valve handle: LVI 6420657
• base gasket: LVI 6420646
• support plate, 100x60mm: LVI 6420134

This product description is an automated translation of the original Finnish description.
