WASHBASIN MIXER ORAS 2606FH-80 STYLE BIDE STEEL
Product code
6110485

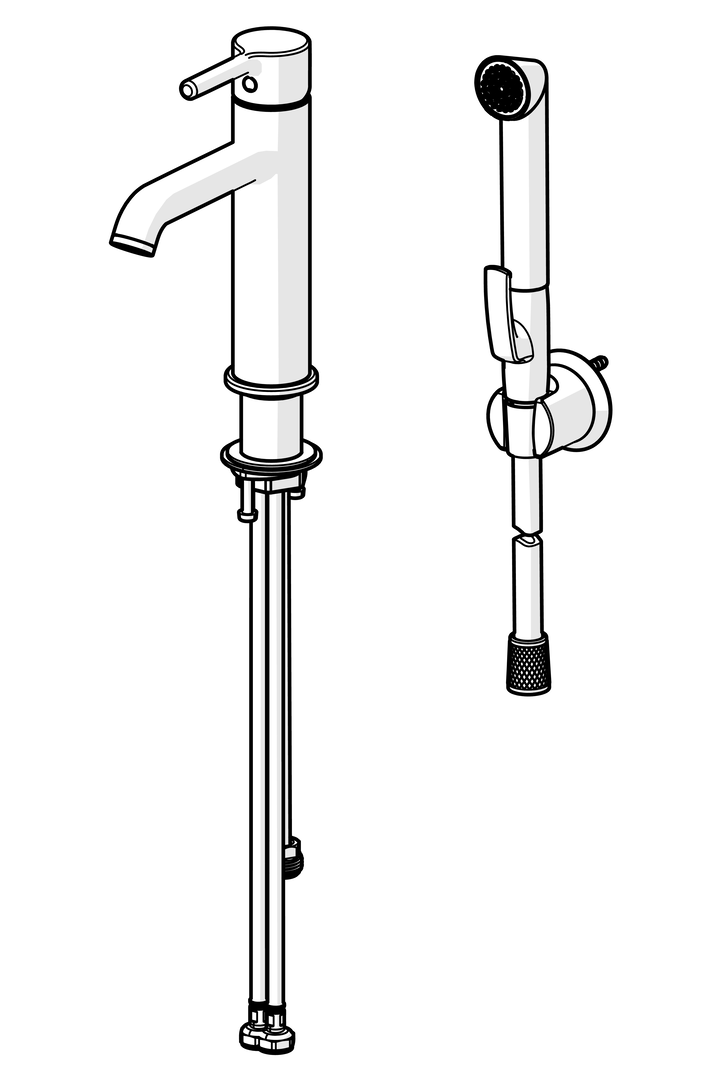

Oras Optima Style 2606FH-80 is a brushed steel finish faucet with a Bidetta hand shower, lever-style handle, and flexible supply hoses. The flow rate is 6 l/min.
Features- spout type: fixed aerator, aerator includes flow restrictor
- connection type: flexible supply hoses
- hand shower type: Bidetta hand shower
- handle/lever type: single operating lever, lever-style handle, hot/cold symbols
- mechanical components: ř 30 mm control unit
- shower components: hand shower, shower holder, shower hose (1750 mm)
- special features: inner body made of zinc-resistant brass
- supply pipe type: fixed supply pipe
- color: brushed steel
- temperature controls: temperature and flow rate limitation capability, temperature limit stop (retrofitable)
- flow rate at 300 kPa (with flow restrictor): 0.1 l/s
- pressure loss at flow rate (0.1 l/s): 195 kPa
- backflow prevention (EN1717): HC
- connection size: G3/8
- warm water: max. +70 °C
- material: brass

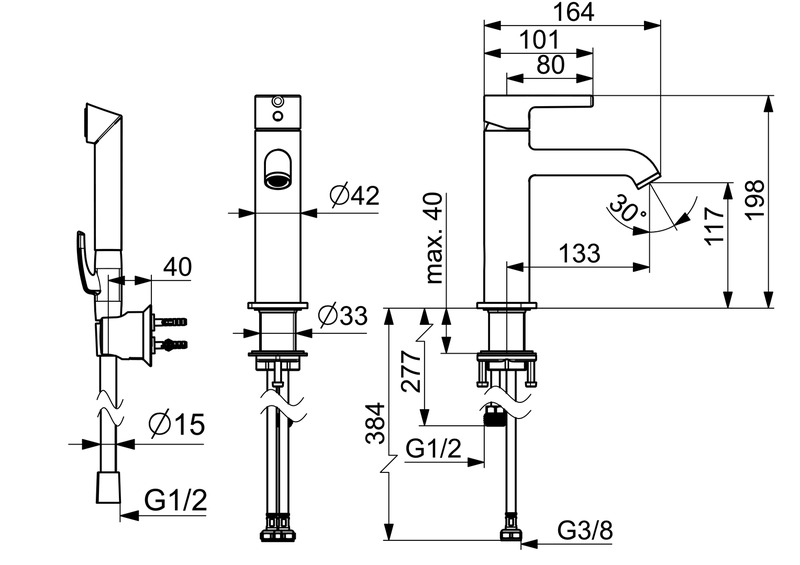

- projection: 133 mm
- operating pressure: 50 - 1000 kPa
- EN standard: EN 817
- sound class: I (ISO 3822)
- STF certificate: EUFI29-23002169-TH1
- compression nut, M34x1.5: LVI 6420776
- control unit, 3.0: LVI 6420771
- installation kit: LVI 6420651
Product details
Technical specifications
Product class (ETIM)Washbasin mixing tap (EC011328)
ModelMechanical
Type of gripSingle-grip
Type of electronic operating methodOther
Self-closingno
Type of temperature controlManually operated
Material tapBrass
Surface protectionOther
Surface treatmentOther
Basic colourOther
MountingTop/tap hole
Number of tap holes1-hole
Connection supplyHose (gland nut)
Connection size supply3/8 inch (10)
Spout modelFixed, top
Type of spoutOther
Product codes
SAPDCL948
HPAC6110485
PLC6110485
GTIN/EAN6414150103667
Manufacturer part number2606FH-80
Vendor material number6110485
Basic information
Package measurements (L x W x H)590 x 180 x 63 mm
Package volume6.691 l
Package weight2 kg
Base uniteach
Package units1 / 10 / 40 / 120
Package contents–
UNSPSC30181702
BrandORAS
VendorORAS OY
Documents (10)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Circular economy
Water saving
Features
Availability of spare parts after discontinuation (years)10
Flow rate at 3 bar (l/min)6
Type ApprovalYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)11.88
GWP, uniteach
Source for GWP dataEPD
