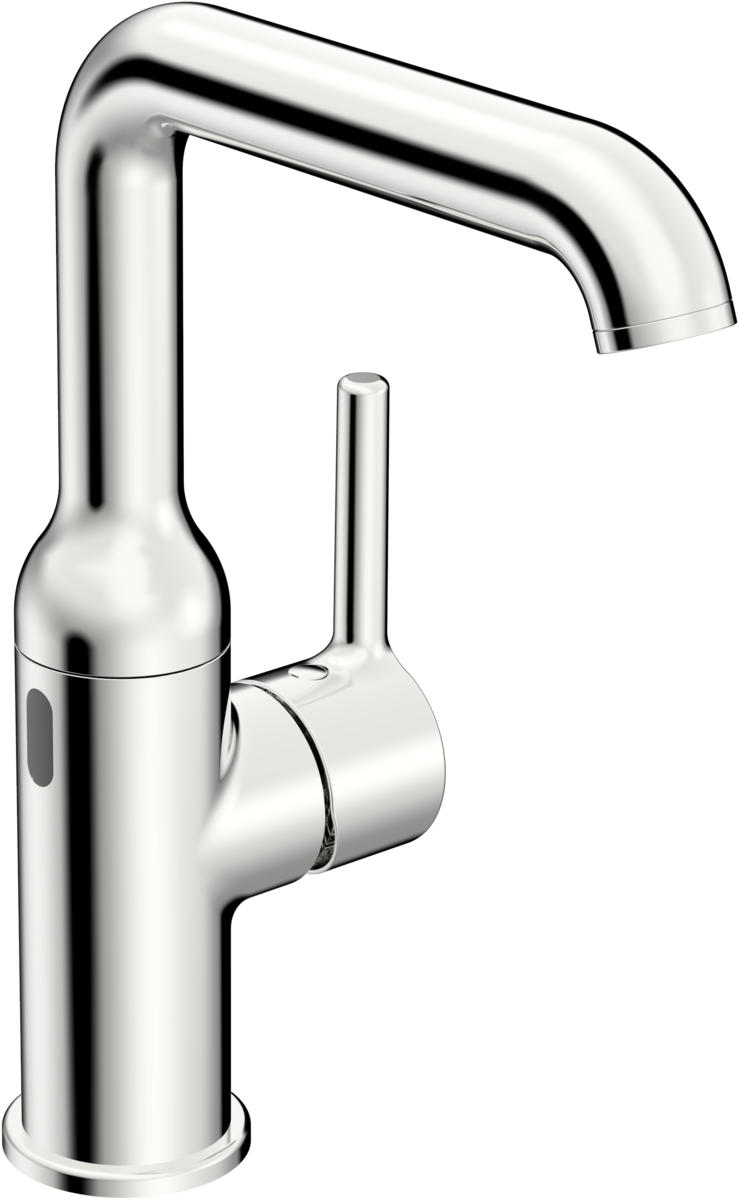

WASHBASIN MIXER ORAS 2611FHTZ OPTIMA STYLE 9V BT
Product code
6110387
Oras Optima Style Hybrid 2611FHTZ is a faucet that operates both touch-free and lever-operated. The faucet features a high, swiveling spout, a lever-style side lever, and flexible supply hoses. The flow rate is 6 l/min and it has an electrical connection via a plug-in transformer 230/9 V.
Features- spout type: fixed aerator, aerator includes flow restrictor
- connection type: flexible supply hoses
- electronic components: infrared sensor, magnetic valve, includes power supply, low battery indicator
- lever/handle type: single operating lever/handle, stick-style lever, hot/cold symbols
- mechanical components: ř 30 mm control unit
- special features: inner body made of zinc-resistant brass
- spout type: swiveling spout
- color: chrome
- temperature controls: possibility to limit temperature and flow rate, temperature limit control (post-installable)
- automatic flush: off (off/1-120 h)
- automatic flush duration: 30 s (1-1800 s)
- max. flow duration: 10 s (1-1800 s)
- flow rate at 300 kPa (with flow restrictor): 0.1 l/s
- backflow prevention (EN1717): EB
- connection size: G3/8
- warm water: max. +70 °C
- material: brass
- projection: 147 mm
- operating pressure: 100 - 1000 kPa
- Bluetooth version: 5.x (D060576)
- electrical connection: 230 / 9 V
- EU directives: 2014/53/EU, 2011/65/EU
- protection class: IP 55
- aerator and key, PCA 1.5 gpm: LVI 6420769
- high spout: LVI 6510300
- spout sealing kit: LVI 6422123
- control unit, 3.0: LVI 6420771
- locking nut, M34x1.5: LVI 6420776
- protective cap: LVI 6420773
- operating lever: LVI 6420777
- logo plate: LVI 6420775
- mounting kit: LVI 6420651
- support plate, 100x60 mm: LVI 6420134
- sensor: LVI 6420774
- battery housing: LVI 6420770
- power supply, 230/9 V, 550 mA: LVI 6420575
- complete magnetic valve, 3 V: LVI 6420325
- thermostatic control unit: LVI 6421004
- temperature control handle: LVI 6420764
- battery, 1.5 V AA Lithium: LVI 6420268
Product details
Technical specifications
Product class (ETIM)Washbasin mixing tap (EC011328)
ModelHybrid
Type of electronic operating methodOther
Self-closingno
Type of temperature controlOther
Material tapBrass
Surface protectionChromium-plated
Surface treatmentPolished
Basic colourChrome
Accent colourChrome
MountingTop/tap hole
Number of tap holes1-hole
Connection supplyHose (gland nut)
Connection size supply3/8 inch (10)
Spout modelRotating, bottom
Type of spoutOther
Product codes
SAPCXZ003
HPAC6110387
PLC6110387
GTIN/EAN6414150099311
Manufacturer part number2611FHTZ
Vendor material number6110387
Basic information
Package measurements (L x W x H)407 x 265 x 119 mm
Package volume12.835 l
Package weight2.2 kg
Base uniteach
Package units1 / 3 / 12 / 36
Package contents–
UNSPSC30181702
BrandORAS
VendorORAS OY
Documents (12)
Environment and safety
Sustainability categories
Circular economy
Water saving
Features
Availability of spare parts after discontinuation (years)10
Flow rate at 3 bar (l/min)6
Type ApprovalYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)12.122
GWP, uniteach
Source for GWP dataEPD
