WASHBASIN MIXER ORAS 2617FHZ-33 OPTIMA STYLE 3 V BI

Oras Optima Style Hybrid 2617FHZ-33 is a matte black faucet that operates both touch-free and lever-operated. The faucet features a high, swiveling spout, a remote-controlled Smart Bidetta hand shower, a bar-style side lever, and flexible supply hoses. Flow rate: 6 l/min. Battery-powered 3 V. Thanks to Bluetooth connectivity, the faucet settings can be easily monitored and adjusted. Features

• spout type: spout includes flow restrictor
• connection type: flexible supply hoses
• electronic components: infrared sensor, magnetic valve, low battery indicator
• hand shower type: remote-controlled Smart Bidetta
• lever/handle type: single operating lever/handle, bar-style lever, hot/cold symbols
• mechanical components: ř 30 mm control unit
• shower components: hand shower, shower holder, shower hose (1750 mm)
• special features: inner body made of zinc-resistant brass
• spout type: swiveling spout
• color: matte black
• temperature controls: temperature and flow rate limitation capability, temperature limit stop (post-installable)
• automatic flush: off (off/1-120 h)
• automatic flush duration: 30 s (1-1800 s)
• maximum flow duration: 10 s (1-1800 s)

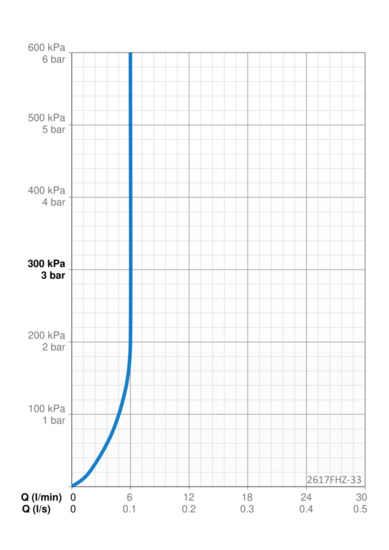

• flow rate at 300 kPa (with flow restrictor): 0.1 l/s
• backflow prevention (EN1717): EB
• connection size: G3/8
• warm water: max. +70 °C
• material: brass

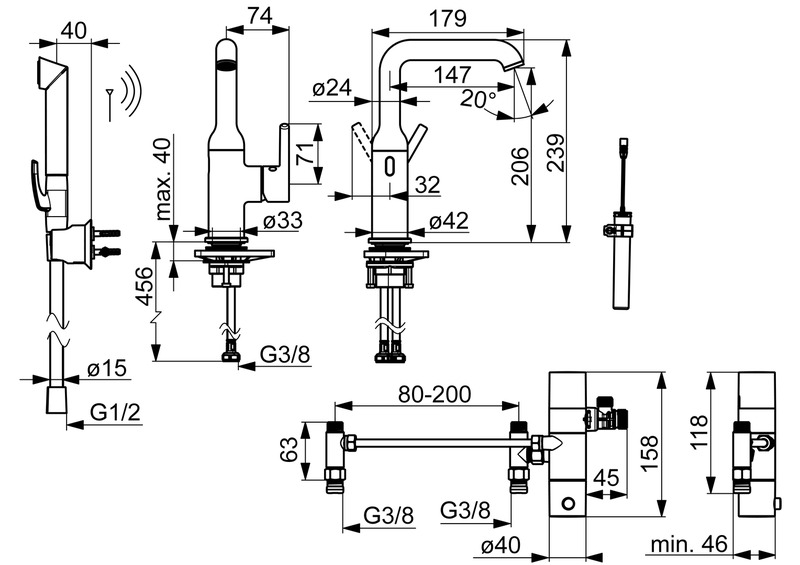

• projection: 147 mm
• operating pressure: 100 - 1000 kPa
• battery: AA 1.5 V Lithium x 2, CR 2450 3 V
• Bluetooth version: 5.x (D060576)
• EU directives: Radio Equipment Directive 2014/53/EU, Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU
• EN standard: EN 817, EN 15091, ETSI EN 301 489-1 V1.9.2, ETSI EN 300 328 v2.2.2, EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011+AC:2012, EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• protection class: IP 55
• STF certificate: EUFI29-23002169-TH1

Replacement Parts

• spout and key, PCA 1.5 gpm (matte black): LVI 6510347
• spout restrictor, 120°: LVI 6420287
• spout seal kit: LVI 6422123
• control unit, 3.0: LVI 6420771
• locking nut, M34x1.5: LVI 6420776
• operating lever (matte black): Oras 1001748V-33
• mounting kit: LVI 6420651
• support plate, 100x60 mm: LVI 642013 This product description is an automated translation of the original Finnish description.
