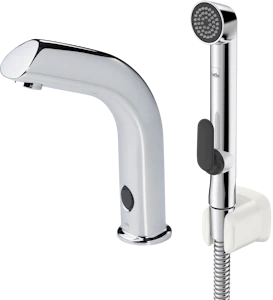

WASHBASIN MIXER ORAS 6205Z ELECTRA, 24/48 V, BT

Oras Electra 6205Z is a touch-free basin faucet with a mixing valve and Bidetta hand shower. The faucet includes strainers, check valves, and PEX connection pipes. Thanks to Bluetooth connectivity, the faucet settings can be easily monitored and adjusted, and the detection distance can also be set directly from the faucet. When the distance between the control unit and the Bidetta hand shower exceeds 2 m, ensure pipe dimensions from Oras. A replacement cable 2–5 m (Oras no. 197033/m) is available for the hand shower holder. A longer power cable (+20 EUR VAT 0%) is also available if needed. Electrical installation 24/48 V; power supply must be ordered separately: Oras no. 290005 (plug-in transformer), Oras no. 290004 (transformer).

Features

• spout type: standard aerator
• electronic components: infrared sensor, includes power supply
• lever/handle type: temperature control handle
• mechanical components: check valves, strainers
• shower components: shower holder, shower hose (1500 mm)
• supply pipe type: fixed supply pipe
• color: chrome
• after-flow time: 3 s (1–20 s)
• automatic flush: off (off/1–120 h)
• automatic flush duration: 30 s (1–1800 s)
• max. flow time: 2 min (1–1800 s)
• flow rate at 300 kPa (with flow restrictor): 0.11 l/s
• pressure loss at flow rate (0.1 l/s): 220 kPa
• backflow prevention (EN1717): HC
• connection size: Ř 10 mm
• hot water: max. +70 °C
• material: brass
• projection: 120 mm
• operating pressure: 100–1000 kPa
• Bluetooth version: 5.x (D060577)
• electrical connection: 24–48 V
• EU directives: 2014/30/EU, 2014/35/EU, 2011/65/EU
• sound class: I (ISO 3822)
• protection class: IP 67

Replacement Parts

• aerator, M24x1 STD HC A: LVI 6421630
• supply pipe: LVI 6422010
• power cable, 9 m: LVI 6420244
• power cable, 6 m: LVI 6420243
• power cable, 3 m: LVI 6420242
• power cable: LVI 6422016
• clamping plates with nuts: LVI 6420358
• injector: LVI 6422104
• flow restrictor, 6 l/min: LVI 6422018
• mixing valve: LVI 6420246
• check valve, DN15: LVI 6422014
• strainers, G1/2, DN15: LVI 6422063
• temperature regulator: LVI 6421116
• temperature control handle: LVI 6420128

This product description is an automated translation of the original Finnish description.
