HEAT PUMP PANASONIC NZ35YKE INDOOR + OUTDOOR UNIT
Product code
CVH865
Advanced air purification system NanoeX, which neutralizes impurities such as pollen and bacteria. NanoeX helps keep indoor air cleaner and more pleasant throughout the day, and it operates together with heating or cooling function when you are at home, or independently when you are away.
The NZ series units are highly efficient and reliable year-round. The units are specifically designed for the demanding northern climate. The unit’s built-in Wi-Fi enables fast connections via the Panasonic Comfort Cloud app. The indoor unit is stylish and equipped with a new remote control.

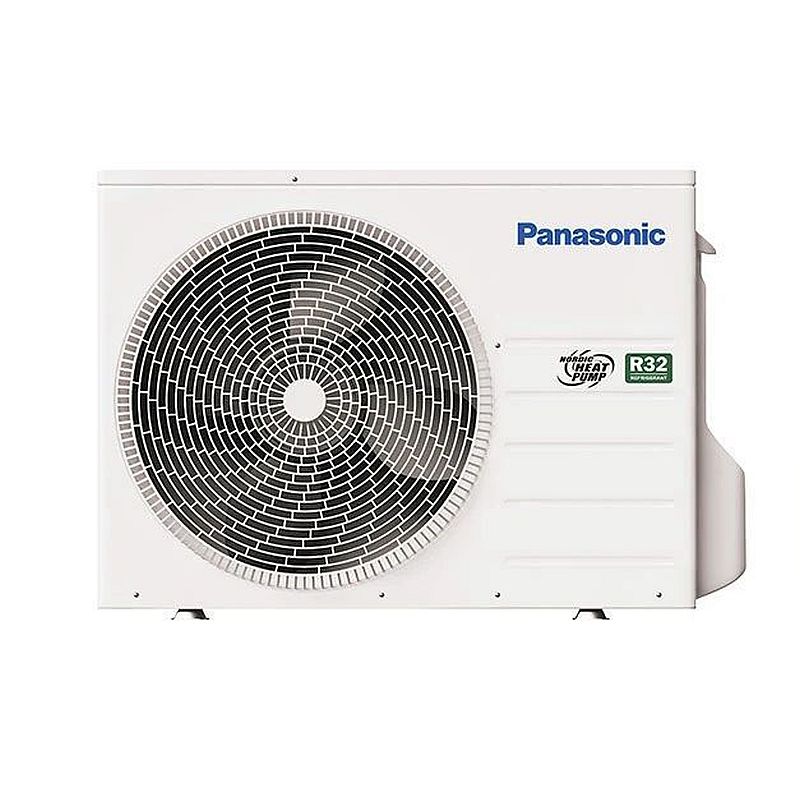

The delivery includes the indoor unit CS-NZ35YKE and the outdoor unit CU-NZ35YKE.
Features
- Heating capacity 4.0 kW (0.85 - 7.40)
- Cooling capacity 3.5 kW (0.85 - 4.0)
- SCOP 5.0 / A++
- SEER 8.0 / A++
- Refrigerant R32
- Heating capacity at -25°C: 3.03 kW, COP 2.13 (SP test)
- Pipes 1/4 and 3/8

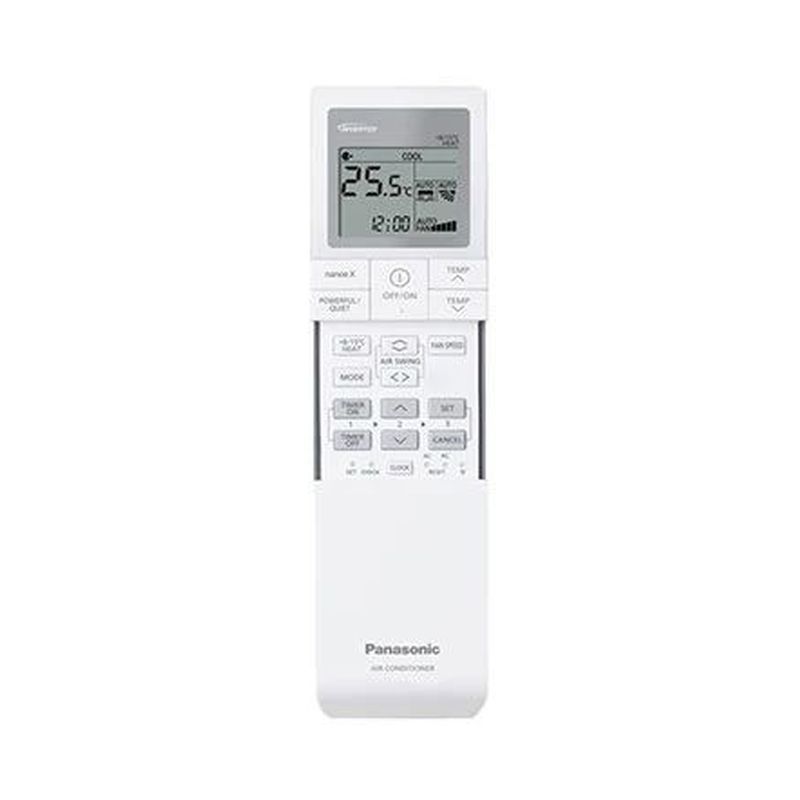

- Wi-Fi remote control as standard
Product details
Components (2)
Product name
Product code
Quantity
Technical specifications
Product class (ETIM)Air-conditioning split system - single split, complete (EC011573)
Operating principleCooling and heating
Model (indoor unit)Wall (high)
Inverter-controlledyes
Type of refrigerantR32
Connection voltage230 V
Number of phases1
Frequency50 Hz
Cooling capacity0.85 - 4 kW
Heating capacity0.85 - 7.3 kW
COP (heating)1.81
SEER (cooling)7.4
Energy efficiency class coolingA++
Height indoor unit295 mm
Width indoor unit870 mm
Depth indoor unit229 mm
Product codes
SAPCVH865
HPACCVH865
PLCCVH865
GTIN/EAN6438056309992
Basic information
Package measurements (L x W x H)960 x 800 x 680 mm
Package volume522.24 l
Package weight49 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101701
BrandPANASONIC
VendorPANASONIC MARKETING EUROPE GMBH
Documents (14)
Images
Brochures & documents
Environment and safety
Sustainability categories
Circular economy
Energy efficiency
Features
Energy efficiency class (cooling)A++
Availability of spare parts after discontinuation (years)10
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1003.52
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000442
