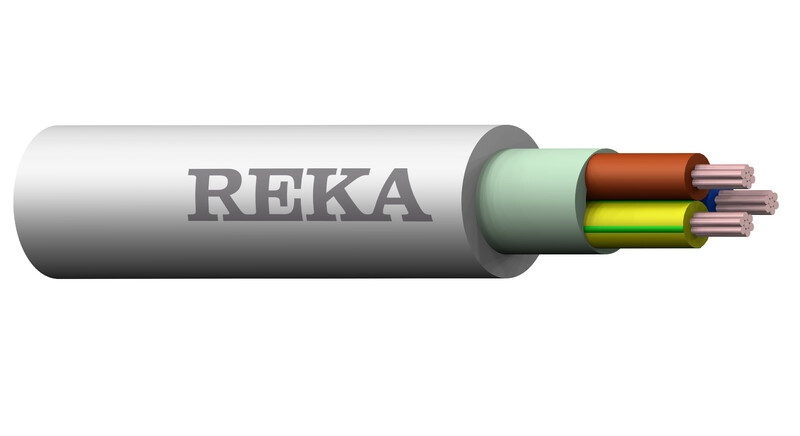

INSTALLATION CABLE MKMJ 3G1,5 DRUM
Product code
0456523
No product description available.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor1.5 mm²
AWG size16
Nominal cross section conductor (AWG)1.31 kcmil
Diameter conductor1.59 mm
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C12.1 Ohm/km
Number of cores3
Twisted coresyes
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Core identification according to HD 308 S2yes
Identification/coding colour coreOther
Core identificationColour
Product codes
SAPAAY157
STK0456523
PLC0456523
GTIN/EAN6410004565230
Manufacturer part number1102306-6
Vendor material number0456523
Basic information
Package measurements (L x W x H)1000 x 20 x 20 mm
Package volume0.4 l
Package weight0.16 kg
Base unitMeter
Package units1 / 1000
Package contents–
UNSPSC26121641
BrandREKA BY NEXANS
VendorREKA KAAPELI OY
Documents (3)
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.024
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
