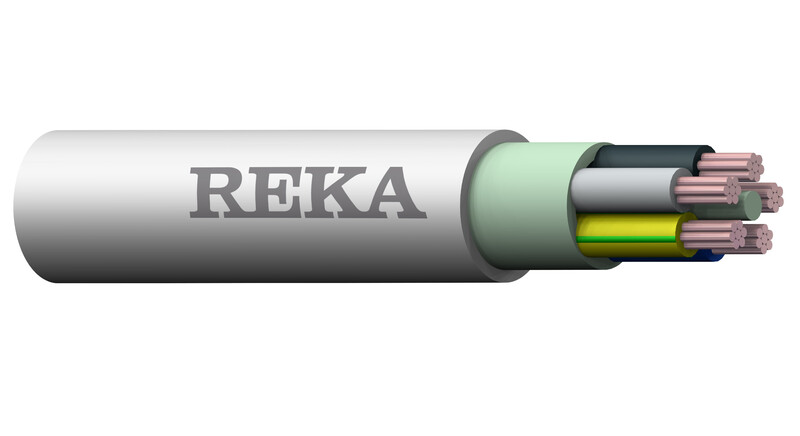

INSTALLATION CABLE MMJ 5G10 KE 500
Product code
0406940
Installation cable for fixed indoor and outdoor installation. Do not bury in ground or directly in concrete pour. Can be embedded in a grout-filled groove. The cable insulation must be protected from UV radiation. Installation must be carried out in accordance with national regulations and standards. The cable is non-propagating in fire class Eca. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Power cable < 1 kV, for permanent installation (EC003248)
Conductor materialCopper
Conductor surfaceBare
Nominal cross section conductor10 mm²
AWG size8
Nominal cross section conductor (AWG)8.37 kcmil
Diameter conductor4.05 mm
Conductor categoryClass 2 = stranded
Conductor resistance at 20 °C1.83 Ohm/km
Number of cores5
Twisted coresyes
Material core insulationPolyvinyl chloride (PVC)
Specification core insulationOther
Identification/coding colour coreOther
Core identificationColour
Core colourSeveral
Product codes
SAPAIN575
STK0406940
PLC0406940
GTIN/EAN6410004069400
Manufacturer part number1102128-5
Vendor material number0406940
Basic information
Package measurements (L x W x H)1000 x 22 x 22 mm
Package volume1.424 l
Package weight0.927 kg
Base unitMeter
Package units500
Package contents–
UNSPSC26121641
BrandREKA BY NEXANS
VendorREKA KAAPELI OY
The country of origin stated by the supplierFinland
Documents (2)
Certificates
Links
Environment and safety
Origin labelling
Keyflag
The product has the Key Flag Symbol
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.9328
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000480
